Antenna
Mast - 2-3/8"
(60.3mm) O.D Max.
U-Bolts (2)
Spacers (4)
Mounting Instructions

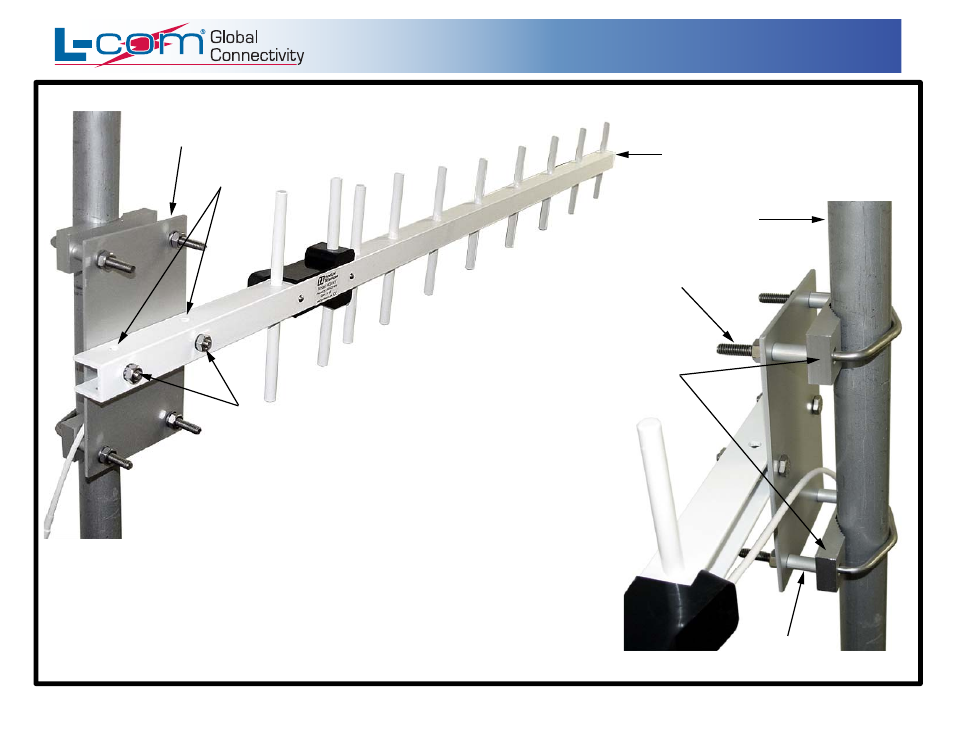

1. Attach Antenna Mounting Plate to antenna as shown
using supplied hardware.
2. Secure antenna to mast as shown using (2) U-Bolts
and hardware, (2) Mast Clamps and (4) Spacers.
Note: This antenna can be mounted to a horizontal mast
by attaching the Antenna Mounting Plate to the Optional
Mounting Holes on the antenna.
Installation Instructions
Model: HG914Y
Mounting Plate
Screws (2)
Antenna Mounting
Plate
Mast Clamps (2)
Optional Mounting Holes
for Horizontal Mast
