IP-00002 Rev. C – 04/05 Page 1/3
HyperGain™ HG2424G
2.4 GHz dBi Reflector Grid Antenna
Installation Instructions
Antenna Components Included:
(1) Antenna Feedhorn Assembly
(1) Feed Reflector
(1) Small Self-tapping Screw
(2) Grid Section Halves
(2) #M6 Stainless Steel U-Bolts w/nuts, flat and lock washers
(2) Mast Clamps
(1) Aluminum “L” Bracket
(4) #M5 x 15mm Machine Screws w/nuts, flat and lock washers
(4) #M6 x 30mm Machine Screws w/nuts, flat and lock washers

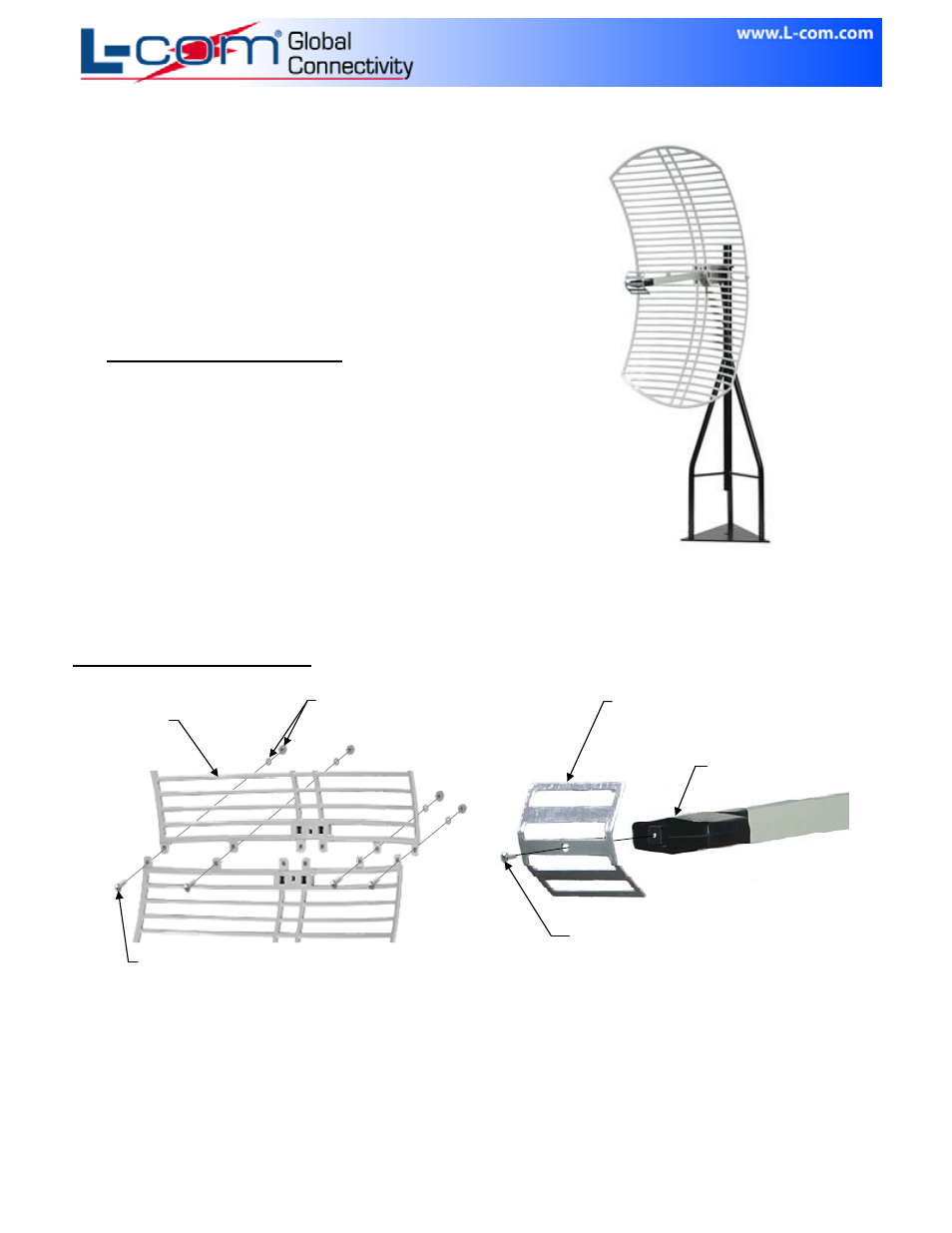

Antenna Assembly Instructions:
Feedhorn
Reflector Grid
Lock Washer & Nut
Feed Reflector
Small Self-Tapping Screw
#M5 Machine Screw
Install the Feed Reflector to the front of the
Feedhorn using the small self-tapping screw.
Assemble the halves of the Reflector Grid using
(4) #M5 machine screws with lock washers, flat
washers and nuts as shown.
