IP-00016 Rev. B – 03/05 Page 1/2

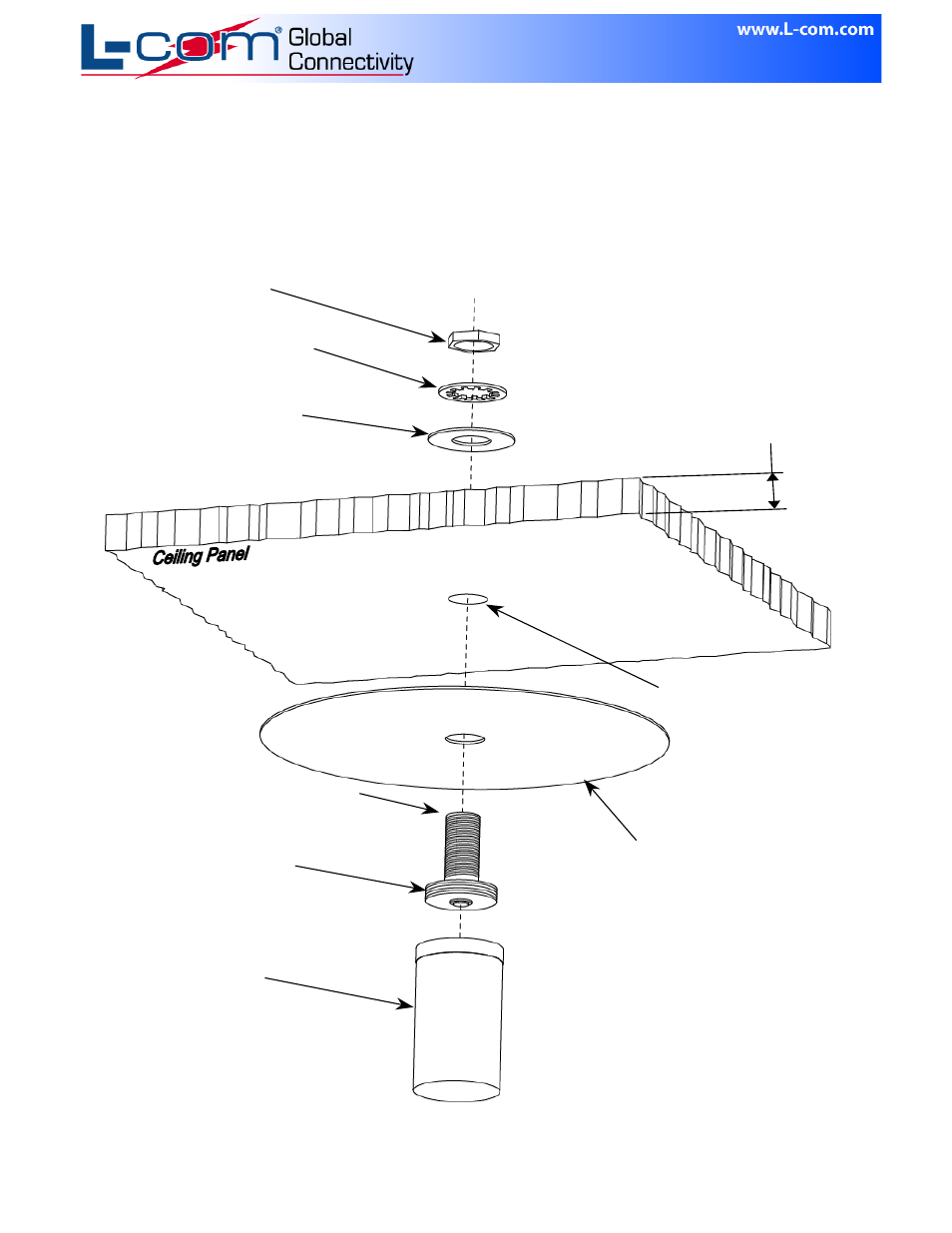

INSTALLATION INSTRUCTIONS: HG2403CU
5/8” (16 mm) Diameter Hole
in ceiling panel.
Antenna
11/16” (17.4 mm) Maximum Ceiling
Thickness
Antenna
NMO to N-Female Adapter
Mounting Plate
Flat Washer
Lock Washer
(Optional)
Hex Nut
1. Prepare ceiling by drilling a 5/8” (16 mm) diameter hole in panel. Note maximum ceiling
thickness is 11/16” (17.4 mm).
2. Install antenna assembly as shown below.
3. Attach cable with N-Female connector (sold separately) to adapter as shown.
Attach cable (with N-Female connector)
to assembly after installing in ceiling.
