AIP-00041 Rev. E – 10/08 Page 5/5

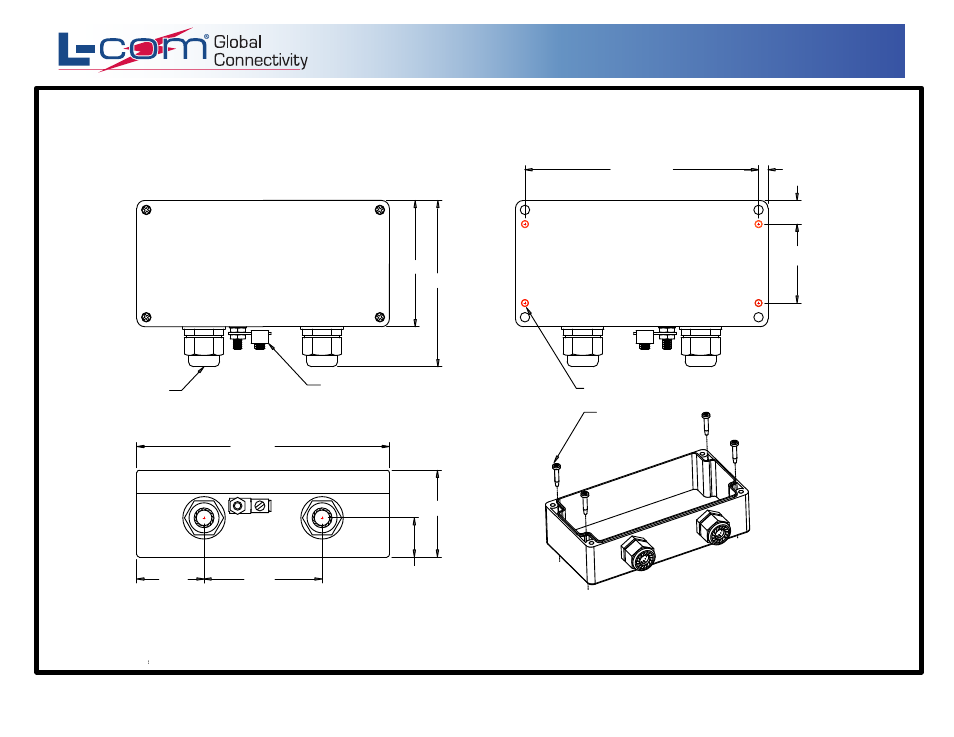

AL-CAT5HPW Dimensions
3.157"
4.157"
2.170"
6.313"
.980" (2X)
1.680" 2.950"
TOP VIEW
SIDE VIEW
(Cover Removed)
BOTTOM VIEW
5.840" (2X) .237"
1.973" (2X)
.592"
Ground Clamp
Cable Conduit
Mounting Screw (4x)
(#6 or M3.5 Pan Hd.)
.176" Dia. Mounting Holes (4x)
