AP Installation:
Conduct a Site Survey to determine the best location for the system. Once located, install
the Enclosure in an appropriate location. Follow the enclosure mounting instructions for
specific mounting and grounding details.

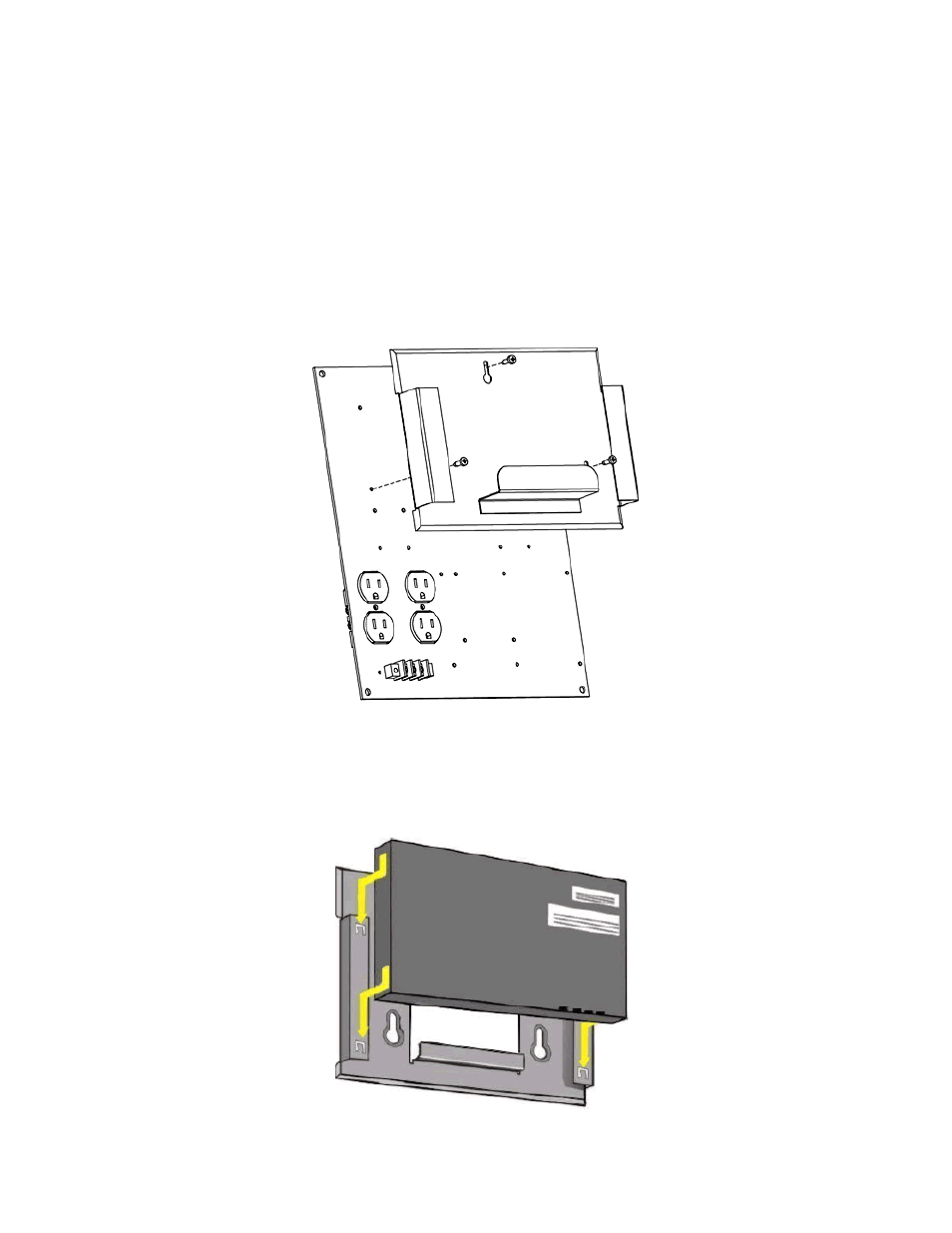

Mount the AP Mounting Bracket to the mounting plate in the enclosure using the (3)
screws provided. Refer to the figure below for proper positioning.
Attach the AC Power Cord to the Power Supply and clip the AP Power Supply into the
base of the AP Mounting Bracket. Slide the AP module onto the mounting bracket.
Make sure it is properly seated.
