LED D
ISPLAY
O
PTION
#1
This machine is shipped with the vend pricing preset
at $1.00 for each column. Whenever all selection but-
tons are set at the same vend price, the LED display
will alternate between & in 1 second
increments. You will notice this upon initial power up.
For display option #1, all 5 selection buttons must be
programmed at the same vend price.
LED D
ISPLAY
O
PTION
#2
The LED display will alternate between &
& if any one of the 5 selection buttons
are programmed at a different price setting. In either
display mode, a touch of any selection button will
bring up on the display the pricing for that selection.
& will be displayed when the column
is empty and the selection button is pressed for that
column.

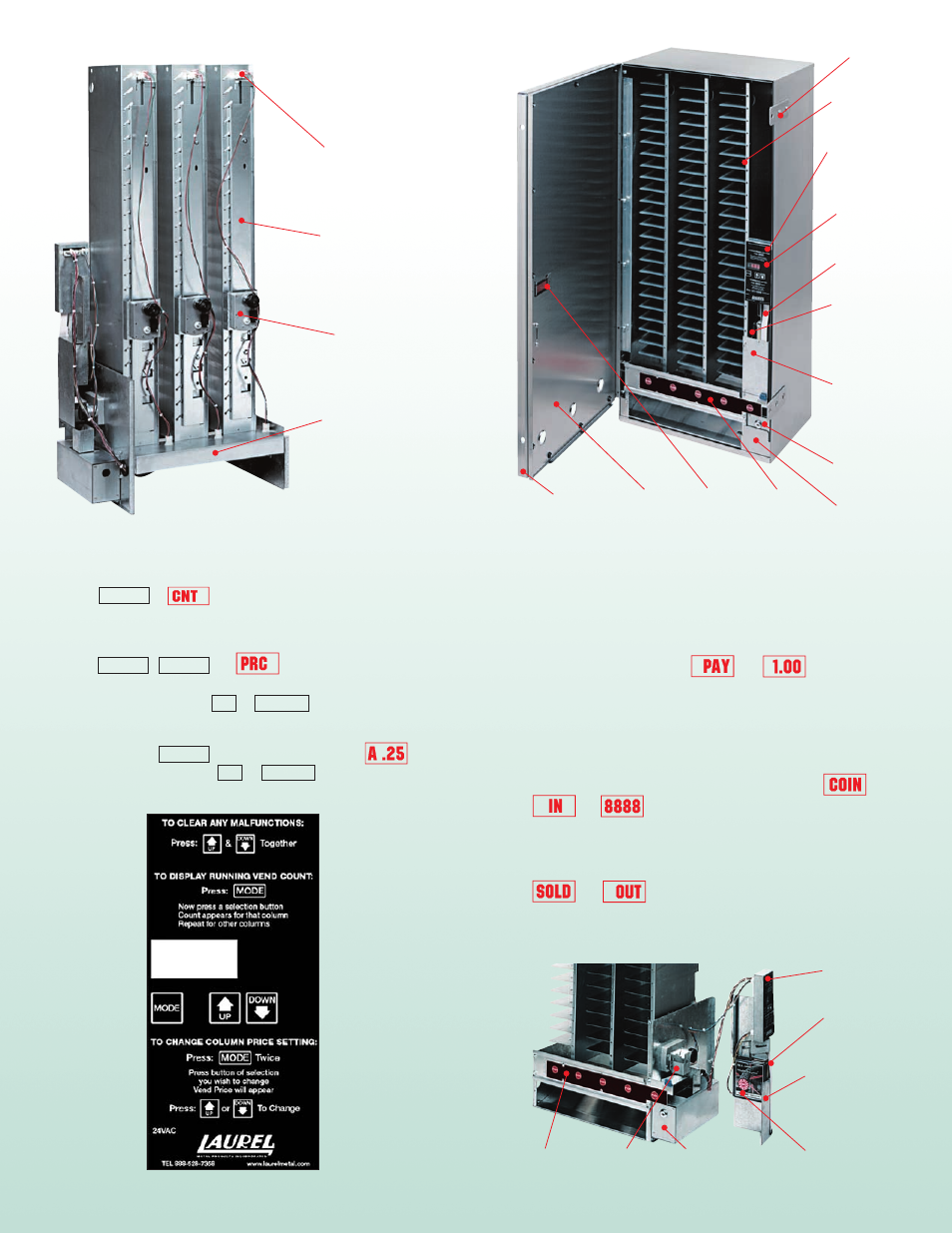

Security
Frame
81-85
Door
899-D70
LED
Window
399-62
Switch
Pad
899-20
Side Bar
2100-64
Shelf Assembly
899-E40
Cover Instruction
Sheet
899-35
Circuit Board
899-34
Ribbon Cable
599-15
Coin Acceptor
Slugbuster 399-102
MA800 399-64
Microcoin 399-101
Coin Mechanism
Slugbuster 899-B30-SB
MA800 899-B30-MA
Microcoin 899-B30-QL
Coin Box w/Lock
81-B80
Coin Box Door
81-96
6 3
C
OVER
/I
NSTRUCTION
S
HEET
To access vend count:
Press MODE : will be displayed. Press any
selection button for total vend count of that column.
To access column pricing:
Press MODE MODE : will be displayed.
Press any selection button and price of that column
will be displayed. Press UP or DOWN to change price.
To access base coin value:
Press and hold MODE button for 5 seconds
will be displayed. Press UP or DOWN to change the
base coin value.
Empty Switch
899-41
Shelf Assembly
899-E40
Vend Motor
Assembly
899-A42
Base Assembly
899-A1
Coin Mechanism
Slugbuster 899-B30-SB
MA800 899-B30-MA
Microcoin QL 899-B30-QL
Coin Acceptor
Slugbuster 399-102
MA800 399-64
Microcoin QL 399-101
Circuit Board
899-34
Ribbon Cable
599-15
Switch Pad
899-20
Coin Cup
899-B19
Coin Box
81-B80
