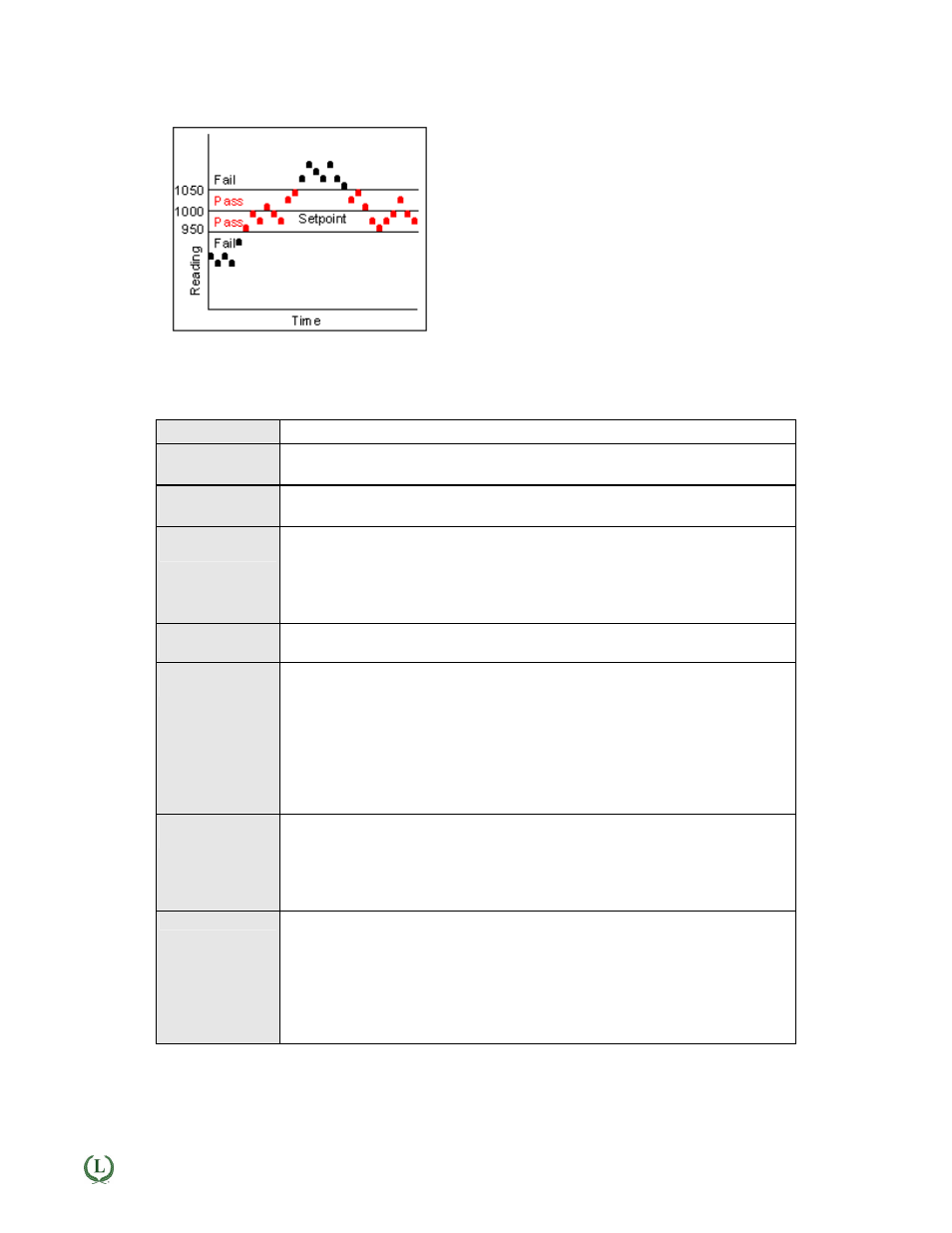

Application Example: Deviation Limit for Pass/Fail Testing

A deviation limit (50 mohm in this example) is set up
around both sides of a setpoint. The relay closes (or
opens) when the reading falls within the deviation band,
and opens (or closes) when the reading falls outside of
this band. This mode sets up a passband around the
setpoint and can be used for contact resistance testing.

Ordering Guide

Create a model a model number in this format: L1110P385C, IPC

DPM Type

L Laureate Digital Panel Meter

Main Board

1 Standard Main Board, Green LEDs
2 Standard Main Board, Red LEDs

Power

(isolated)

0 85-264 Vac
1 12-32 Vac or 10-48 Vdc

Relay Output

(isolated)

0 None
1 Two 8A Contact Relays
2 Two 120 mA Solid State Relays
3 Four 8A Contact Relays
4 Four120 mA Solid State Relays

Analog Output

(isolated)

0 None
1 Isolated 4-20 mA, 0-20 mA, 0-10 V, -10 to +10V

Digital Interface

(isolated)

0 None
1 RS232
2 RS485(dual RJ11 connectors)
4 RS485 Modbus (dual RJ45 connectors)
5 USB
6 USB-to-RS485 device server
7 Ethernet
8 Ethernet-to-RS485 device server

Resistance Input

(isolated)

R1 0-20 ohms
R2 0-200 ohms
R3 0-2 kohms
R4 0-20 kohms
R5 0-200 kohms

Add-on Options BL

Blank Lens without Button Pads

CBL01 RJ11-to-DB9 Cable
CBL02 USB-to-DB9 Adapter
CBL05 USB Cable, A to B
IPC

Splash-proof Cover

BOX1 NEMA-4 Enclosure
BOX2 NEMA-4 Enclosure plus IPC
