Laurel Electronics Laureate Meters with Custom Curve Linearization User Manual
Page 3
LAUREL
ELECTRONICS INC., 3183-G Airway Ave., Costa Mesa, CA 92626, USA • Tel 714-434-6131 • www.laurels.com 3
Load Cells (6-wire ratio)
WM Field scalable. Default scaling is 0-20 mV = 0-100.00
Resistance (4-wire ratio)
R1
0-20 ohms
R2
0-200 ohms
R3
0-2 kohms
R4
0-20 kohms
R5
0-200 kohms
Pulse Rate or Totalizing
FR
Dual-Channel Frequency. Scalable to ±999,999 for frequency or rate.
Voltage-to-Frequency Converter
VF1
V-to-F Converter, 4-20 mA
VF2
V-to-F Converter, 0-1 mA
VF3
V-to-F Converter, 0-10 V
VF4
V-to-F Converter, Special Range.
Specify min input, min reading; max input, max reading. Component changes by the
factory may be required.
Add-on Options
BL
Blank Lens without Button Pads
CBL01 RJ11-to-DB9 Cable
CBL02 USB-to-DB9 Adapter
CBL05 USB Cable, A to B
IPC
Splash-proof Cover
BOX1 NEMA-4 Enclosure
BOX2 NEMA-4 Enclosure plus IPC

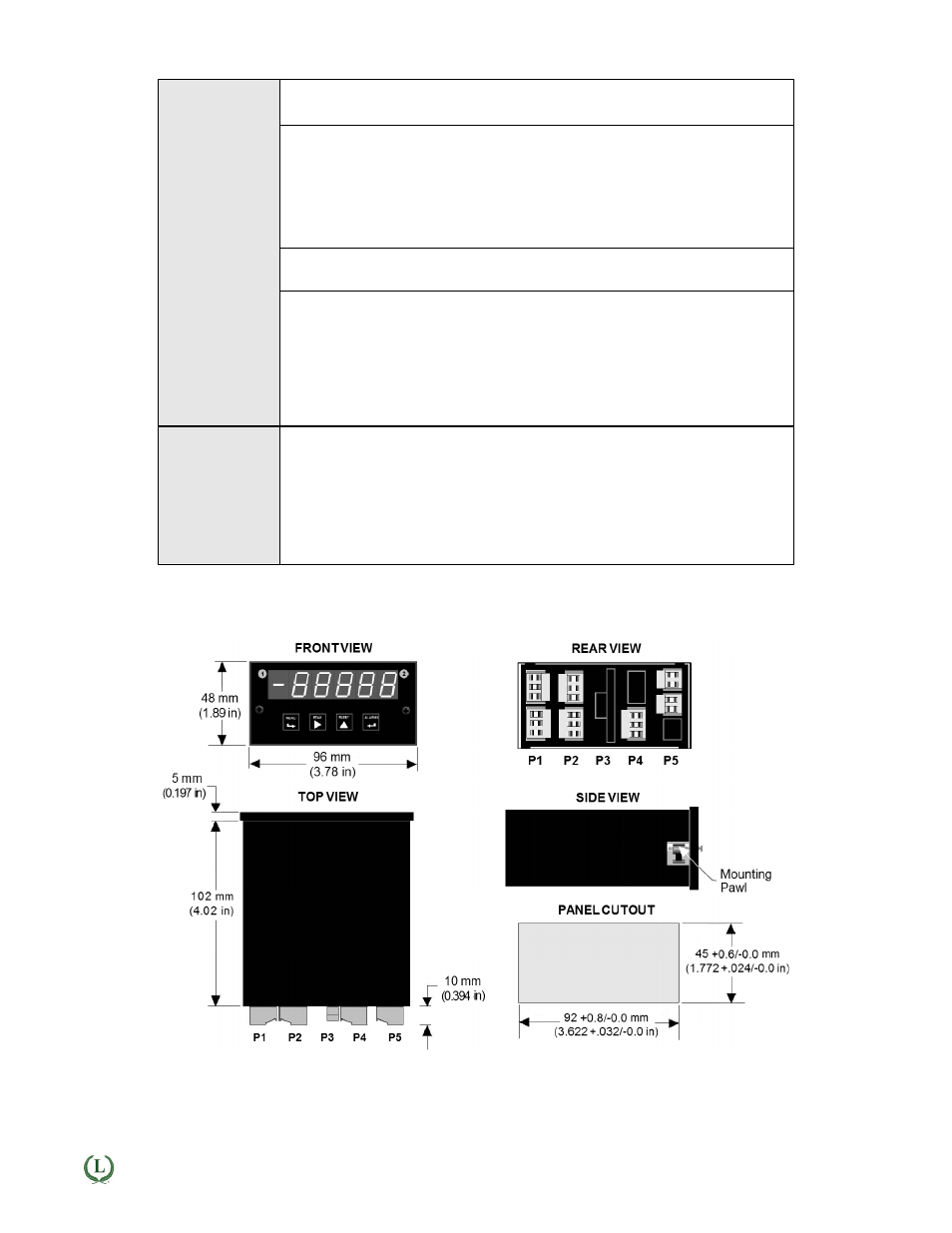

Mechanical
