Power Input
Standard Power
Low Power Option
Power Frequency
Power Isolation
Power Consumption 85-264 Vac or 90-300 Vdc (DC operation not UL approved)
10-48 Vdc or 12-32 Vac
DC or 47-63 Hz
250V rms working, 2.3 kV rms per 1 min test
2W typical, 3W with max excitation output
Mechanical
Dimensions
Mounting
Electrical Connections 129 x 104 x 22.5 mm case
35 mm rail per DIN EN 50022
Plug-in screw-clamp connectors
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
Cooling Required 0°C to 55°C
-40°C to 85°C
95% at 40°C, non-condensing
Mount transmitters with ventilation holes at top and bottom.
Leave 6 mm (1/4") between transmitters, or force air with a fan.
Application Example

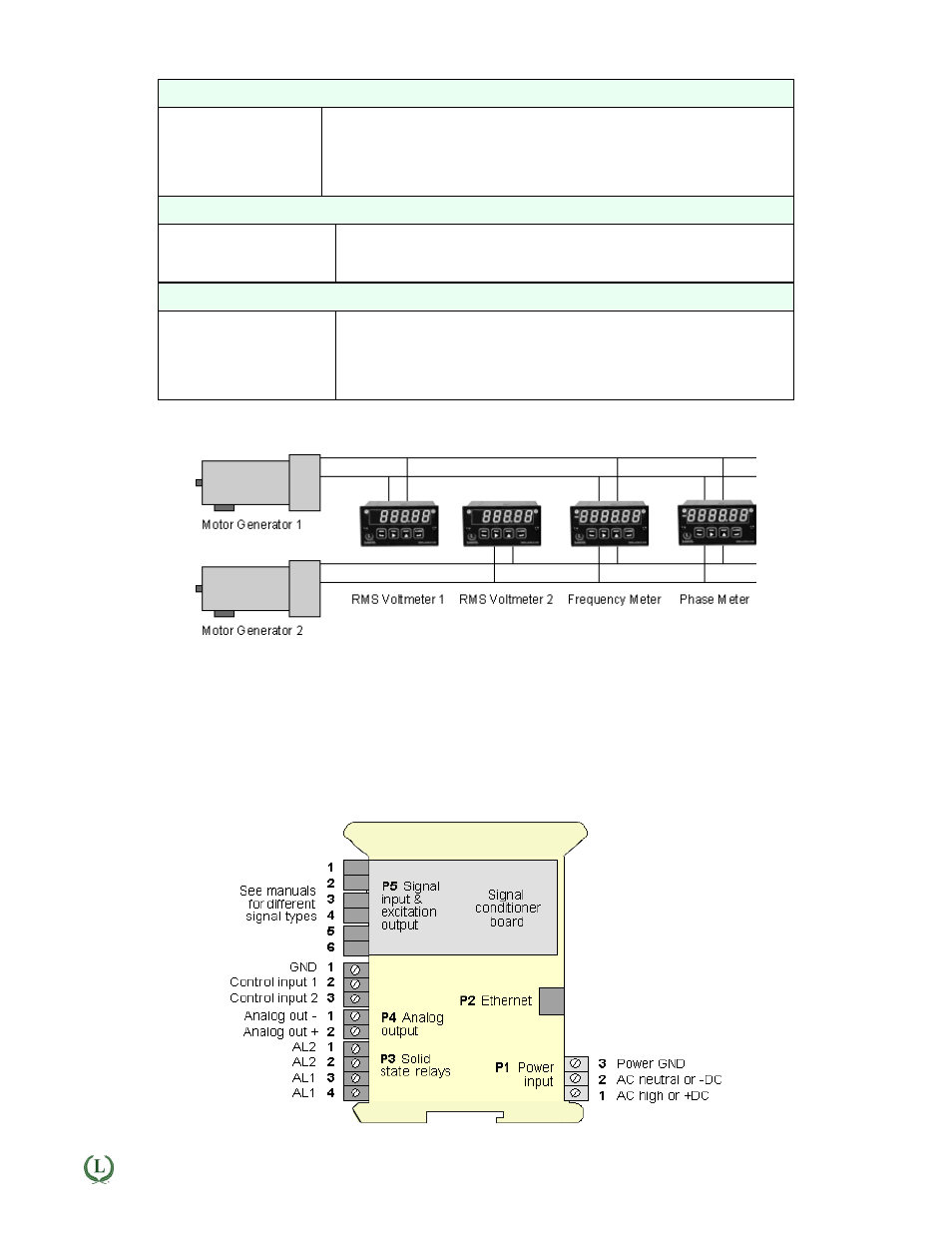

Using Laureate Meters, Counters or Transmitters to Synchronize Motor Generators
Synchronization of two motor generators requires that
the two frequencies be identical, that the lines be in
phase, and that the line voltages be close to each other.
In this illustration, a single Laureate dual channel
counter (or frequency transmitter) measures both
frequencies to six-figure accuracy in a few line cycles. Another Laureate dual channel counter (or phase
transmitter) measures phase angle to 0.1° resolution.
Two Laureate AC RMS Voltmeters, which offer ranges
of 200.00 V and 600.0 V, are used to display the two
RMS voltage to 0.1% accuracy.
Pinout
