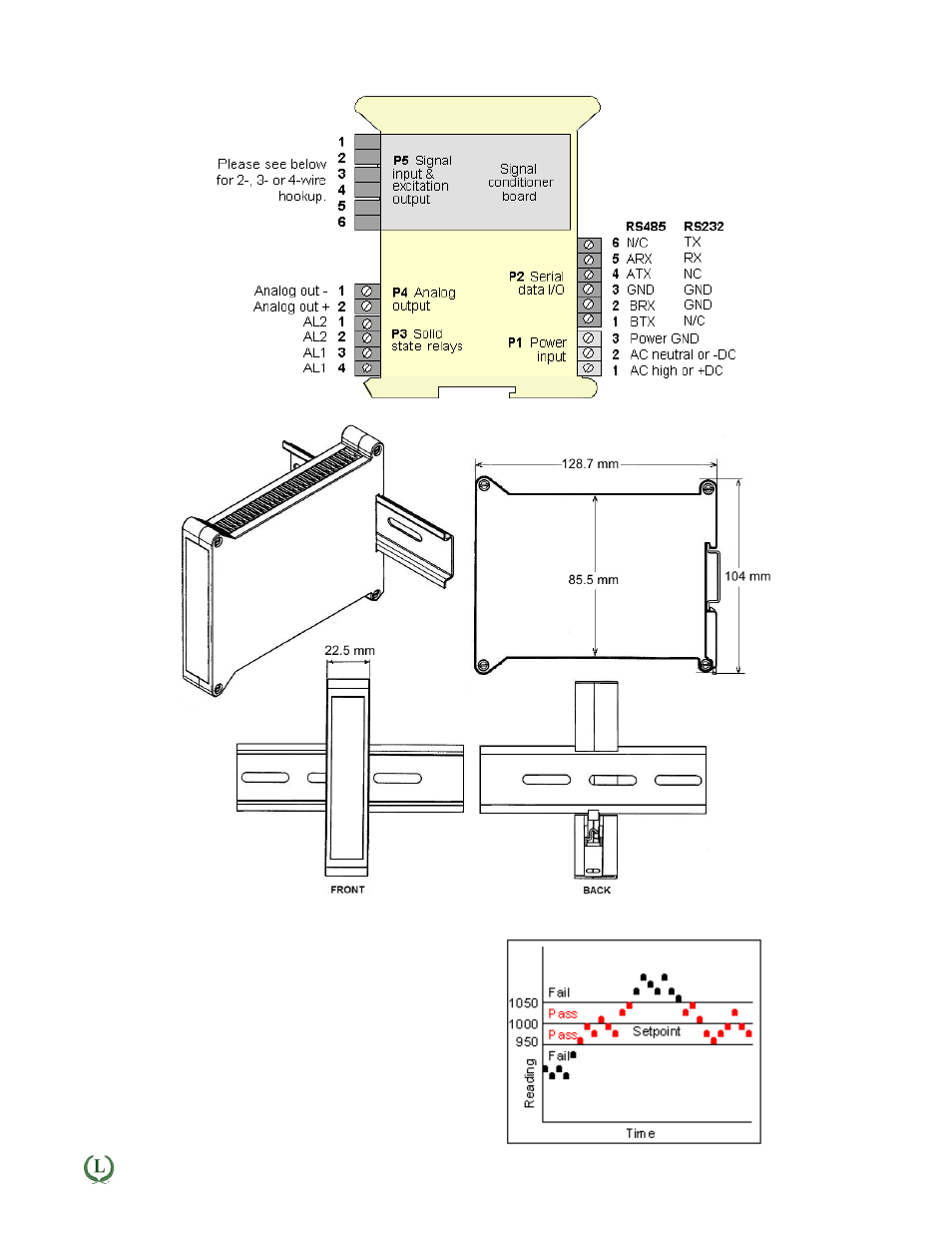

Pinout
Mechanical
QA Application with Relays in Passband Mode
A deviation limit (50 mΩ in this example) is set up
around both sides of a setpoint. The relay closes (or
opens) when the reading falls within the deviation
band, and opens (or closes) when the reading falls
outside of this band. This mode sets up a passband
around the setpoint and can be used for contact
resistance testing in a production environment.
