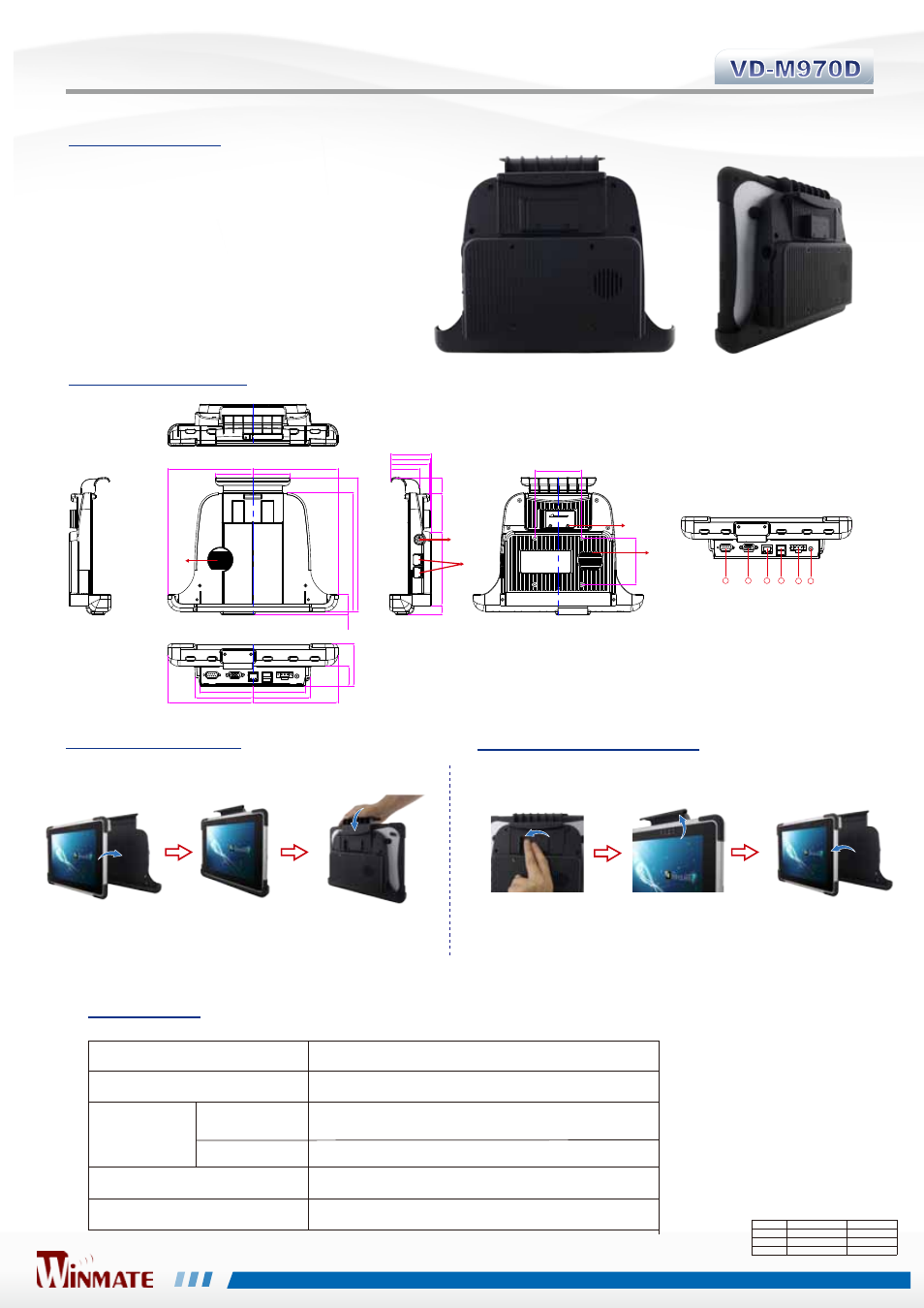

Impulse 98K000A0002O - Manual

www.winmate.com.tw
Rev. Reasons Revised Date
1.0 First Release Apr.11.2013
Dimension
273.5 x 220 x 65.33 mm
Power Input 9~36V DC
I/O Support COM x1,VGA Out x1,USB x 2,LAN x1
DC-in (terminal block & 2.5ψ power jack
Mounting
75 x 75mm VESA Holes
Mechanical Drawing
Vehicle Docking for M970D
One hand docking :
Product Features:
Back View
Step 1 Step 2 Step 3
Specification
Front View
• Hold the Tablet tightly on the moving vehicle
• Lockable design to avoid Tablet be taken away (with key)
• Support both terminal block & 2.5ψpower jack input
• 9~36V DC-in wide range DC input
• Buttom I/O supported: VGA / USBx2 / LAN / DC-in
• Side I/O Supported : USB x 2
• IP52 design (Rain proof)
Step 1 Step 2
1 Insert the Tablet PC
into the docking
2. Push down the hook, the
lock will lock automatically
1.Slide the latch to open
the hook
Step 3
2.Remove the Tablet from
docking
Side View
Vibration
MIL Std. 810G, 5 ~ 500Hz, 2.24G
One hand undocking :
Buttom
Side USB x 2
60
136.73
60
136.73
27.16
190.49 215.29
4.57
46.2
61.5
64.2
65.33
14
61.83
26.07
75
75
31.83
67.51
85
92.52
136.73
85
92.52
136.73
1 2 3 4 5
1. COM(RS232) x 1 4. USB x 2
with 12V 1A With 5V 1.5A
2. VGA Out x 1 5. DC-in (Terminal block)
3. LAN(10/100) x 1 6. DC-in (2.5Ψ)
6
Keylock
latch
Fan Inlet
FAN Output
117.97
USB
