2.3.6 RS-232 Cable Connection
P/N 1818-040
1 5
6 9
1
2
3
4
5
6
RED
BLACK
WHITE
BROWN
GREEN
SHIELD
DOORKING, INC., INGLEWOOD, CA 90301
Date: Dwg. No.

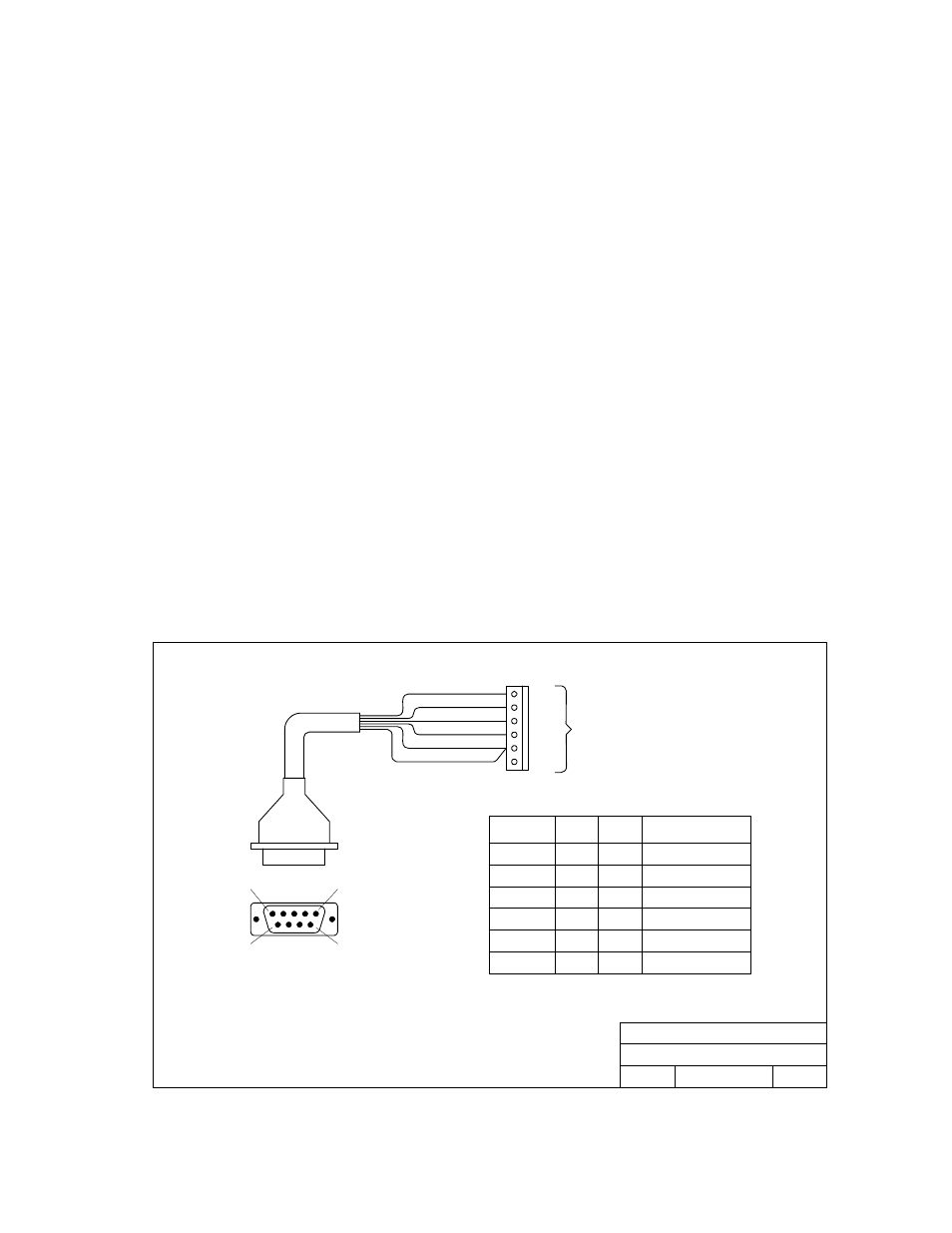

Detail Wiring - 30 Series RS-232 Connector
Rev.
Title:
3/03 A M1835-065-5
FUNCTION
Transmit Data
Receive Data
Request to Send
Clear to Send
Signal Ground - Shell
Not Used
BOARD
TERMINALS
DB - 9
PINS
DB - 25
PINS
1 3 2
2 2 3
3 7 4
4 8 5
5 5 7
6
Connector on 30 Series
Circuit Boards
Page 21
