ITEM DESCRIPTION BW-20 BW-30 BW-50
1 Pan Cover 217427-20 217427-30 217427-50
2 Bun Support 6134-01 217435-30 217435-50
3 Pan 24195-00 24214-00 24213-00
4 Screw, Tubular 83002-00 Same Same
5 Inner Drawer 217422-20 217422-30 217422-50
6 Drawer Insulation 217432-20 217432-30 217432-50
7 Drawer Spacer 217423-00 Same Same
8 Flat Washer 85072-00 Same Same
9 Drawer Pull, S/S 87049-00 Same Same
10 Drawer Front 217421-20 217421-30 217421-50
11 Drawer Frame Weldment 217433-20 217433-30 217433-50
12 Slide Bearing, S/S 86415-00 Same Same
13 Lock Washer 85081-00 Same Same
14 Nut, Hex, 1/4-20 84317-00 Same Same
15 Stop 86635-04 Same Same
16 Nut, Lock, #8-32 84088-00 Same Same
17 Screw, #8-32 x 3/8 81349-00 Same Same
18 Cover, Heater 217424-20 217424-30 217424-50
19 Kit, Insulation 217430-19 217430-29 217430-49
20 Light, Indicator 120V 15151-00 Same Same
21 Light, Indicator 250V 15153-00 Same Same
22 Base 217426-20 217426-30 217426-50
23 Element, Heating 120V 14316-20 14316-30 14316-50
24 Element, Heating 220/230V 14317-20 14317-30 14317-50
25 Thermostat 13011-00 Same Same
26 Screw, #10-32 x 5/16 81683-00 Same Same
27 Foot, Adjustable 86621-00 Same Same
28 Screw, #6-32 x 1/4 81030-00 Same Same
29 Strain Relief 89674-00 Same Same
30 Cordset, SJTO, 18 Ga. 15325-01 Same Same
Cordset, CE Version - 15066-00 15066-00
31 Plug Nema 6-15, 250V 16153-00 Same Same
32 Grommet, 5/8 OD 21263-00 Same Same
33 Screw, Tapping #8-32 x 3/8 81413-00 Same Same
34 Skin Outer 217415-20 217415-30 217415-50
35 Inspection Plate 2807-00 Same Same
36 Thermostat Knob 87031-00 Same Same

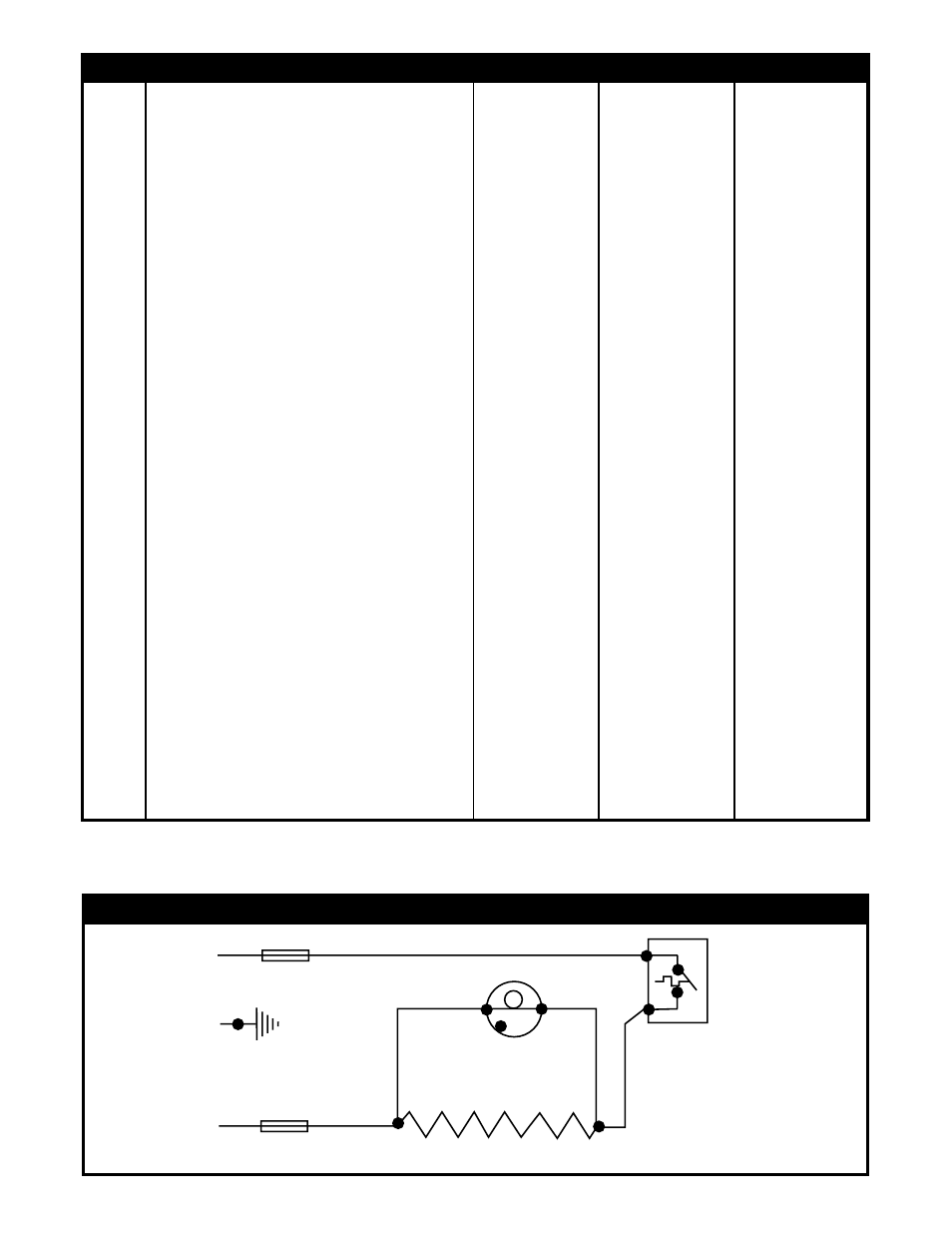

WIRING DIAGRAM
Ground
Blue
Brown
Pilot Light
Heating Element
Thermostat
BW-20, BW-30 & BW-50
