GB - 8
TOOLS REQUIRED
• 7/16" Open-end wrench
TO REMOVE UNIT FROM CARTON
1. Cut off top of carton.
2. Remove front and rear inserts and literature pack.
3. Cut out back of carton and roll unit out.
4. Remove protective packaging materials.

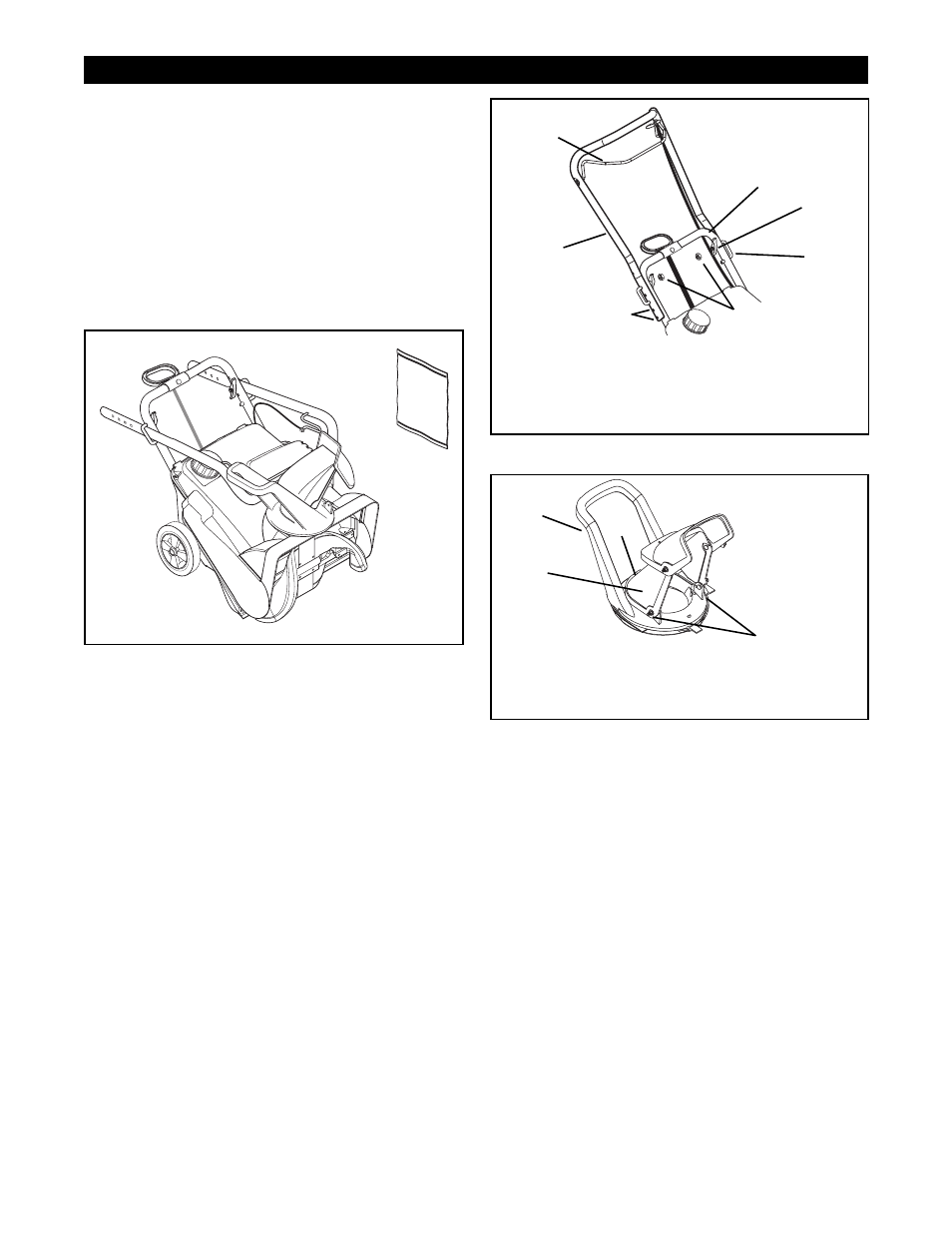

ASSEMBLY
Handlebar Assembly
1. Remove retaining nuts and handlebar knobs and
release J-bolts from lower handlebar.
2. Unfold upper handlebar.
NOTE: Adjust handlebar to a height comfortable for the
operator. Refer to Handlebars in Operation.
3. Put J-bolts through the upper handlebar and lower
handlebar holes.
4. Replace retaining nuts and tighten handlebar
knobs to secure upper handlebar.
Discharge Chute Assembly
1. Remove screw and nut from rear of discharge
chute.
2. Tip discharge chute up and install hardware just
removed. Tighten hardware at rear of discharge
chute first, then sides.
CHECKLIST
Please complete the following checklist before
proceeding:
❑
All assembly instructions have been completed.
❑
No remaining loose parts in carton.
❑
Handlebar is adjusted comfortably and tightened
securely.
While learning how to use your unit, pay extra
attention to the following important items:
❑
Fill fuel tank with proper gasoline/oil mix.
❑
Become familiar with all controls – their location
and function.
❑
Be certain that all hardware is properly tight-
ened.
Hardware/
Literature
Pack
OS1510
1. Lower Handle Bar
2. Upper Handle Bar
3. J-Bolt
4. Knob
5. J-Bolt Holes
6. Auger Clutch Bail
7. Retaining Nuts
OS1530
4
3
1
6
2
5
7
1. Discharge Chute
2. Rear Screw and
Nut
3. Side Hardware
4. Chute Handle
OS1520
1
2
4
3
ASSEMBLY
