AL5068S Designer’s Guide
No. AL5068S-E00-105 Altec Electronic AG Seite 22 / 25
5. PACKAGE DIMENSIONS

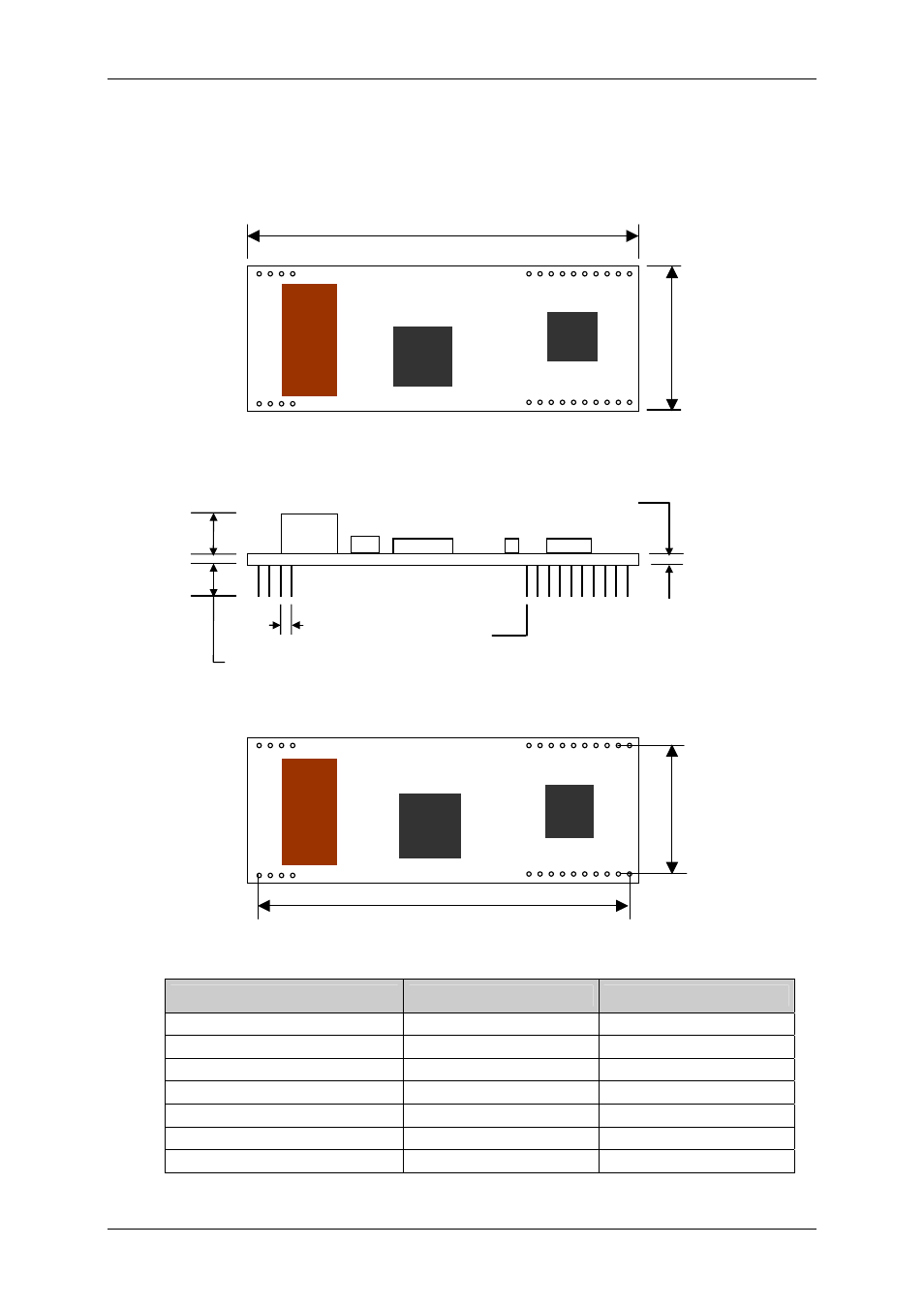

Figure 4-1. AL5068S Socket Modem Physical Dimensions
AL5068S Dimensions Europe US
Width 26,5 mm ~1.05"
Height 14.1 mm ~0.55"
Length 64,5 mm ~2.55"
Weight ~ 12 g ~ 0.42 oz
Operating temperature 0...70 °C 32...160 °F
Storage temperature –10...85 °C 14...185 °F
Humidity 90% non-condensing 90% non-condensing
26.5mm (1.0
4“)
64.5mm (2.54“)
24.
0m
m
62.0mm
7,
6mm
6,5mm
2,0mm
∅0.5mm
1,6mm
