Page 7
HDMI Matrix Switcher
7

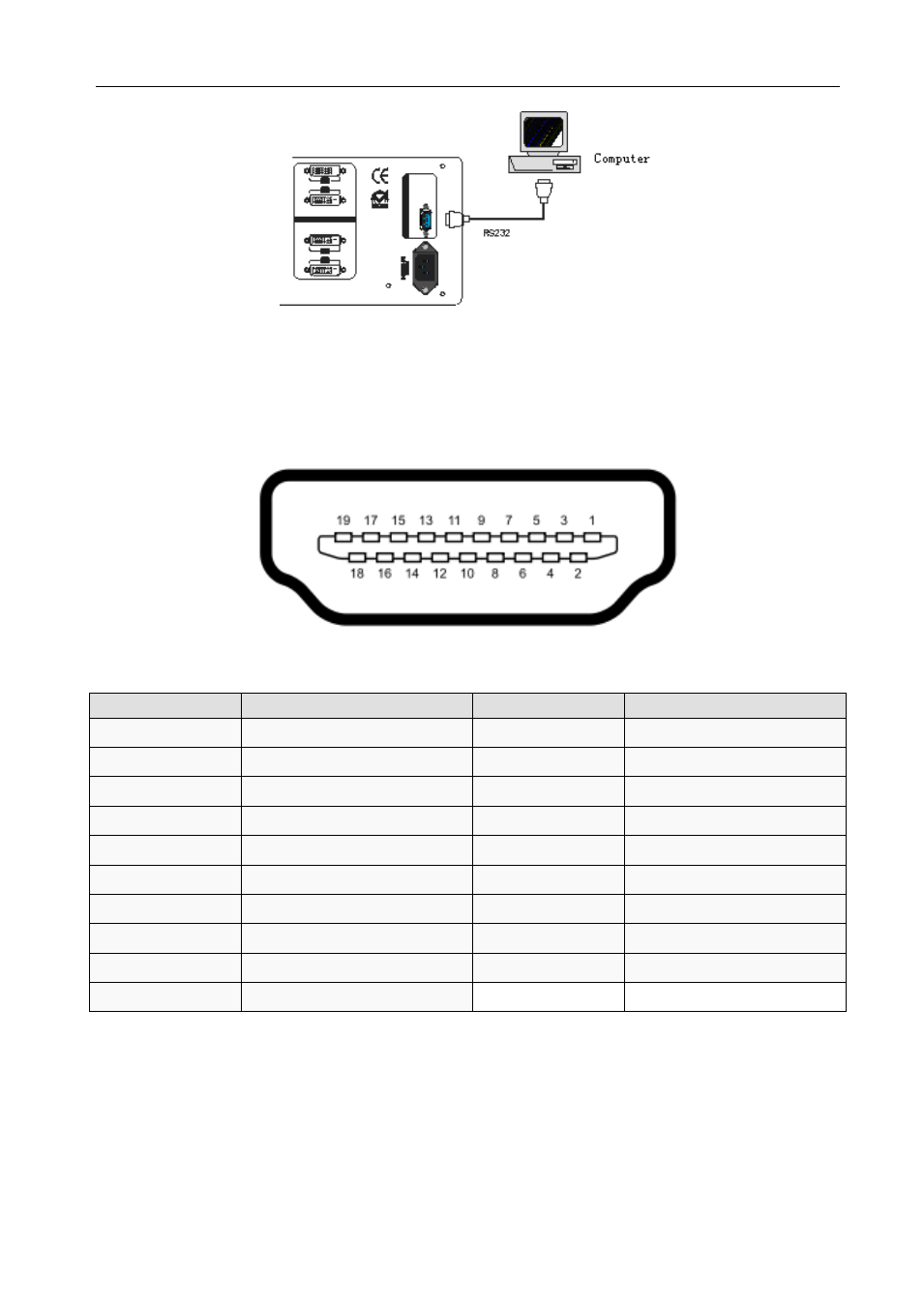

F 5-2 Connecting to computer
5.3 How to Connect with the Input and Output Terminals
CSW-HD880 may take DVD players, computers, graphic workstations and digital showing
platform as their input signal source, and projectors, video recorders, displayers and amplifiers as
their output signal destinations according to different situation.
F5—3 HDMI connector
HDMI pin function
Pin Number
Signal Name
Pin Number
Signal Name
1
TMDS Data 2+
20
SHELL
2
TMDS Data 2 Shield
19
Hot Plug Detect
3
TMDS Data 2-
18
+5V Power
4
TMDS Data 1+
17
Ground
5
TMDS Data 1 Shield
16
DDC Data
6
TMDS Data 1-
15
DDC Clock
7
TMDS Data 0+
14
No Connect
8
TMDS Data 0 Shield
13
CEC
9
TMDS Data 0-
12
TMDS Clock-
10
TMDS Clock+
11
TMDS Clock Shield
System Diagram
：
