5 Connecting the CSC-650 Component / UXGA HDMI Scaler
To connect 1 your CSC-650 as the example in Figure 2 illustrates:
1. Connect a component video source (for example, a DVD player) to the
COMP In Y, Pb, Pr, RCA connectors, and to the COMP In L and R audio
RCA connectors.
2. Connect a computer graphics source to the UXGA In 15-pin HD
connector, and to the UXGA In audio 3.5mm mini jack connector.
3. Connect an HDMI source (for example, a DVD player) to the HDMI In
connector, and to the HDMI In analog audio 3.5mm mini jack connector.
4. Connect the HDMI Out connector to an HDMI acceptor (for example, a
plasma display).
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).

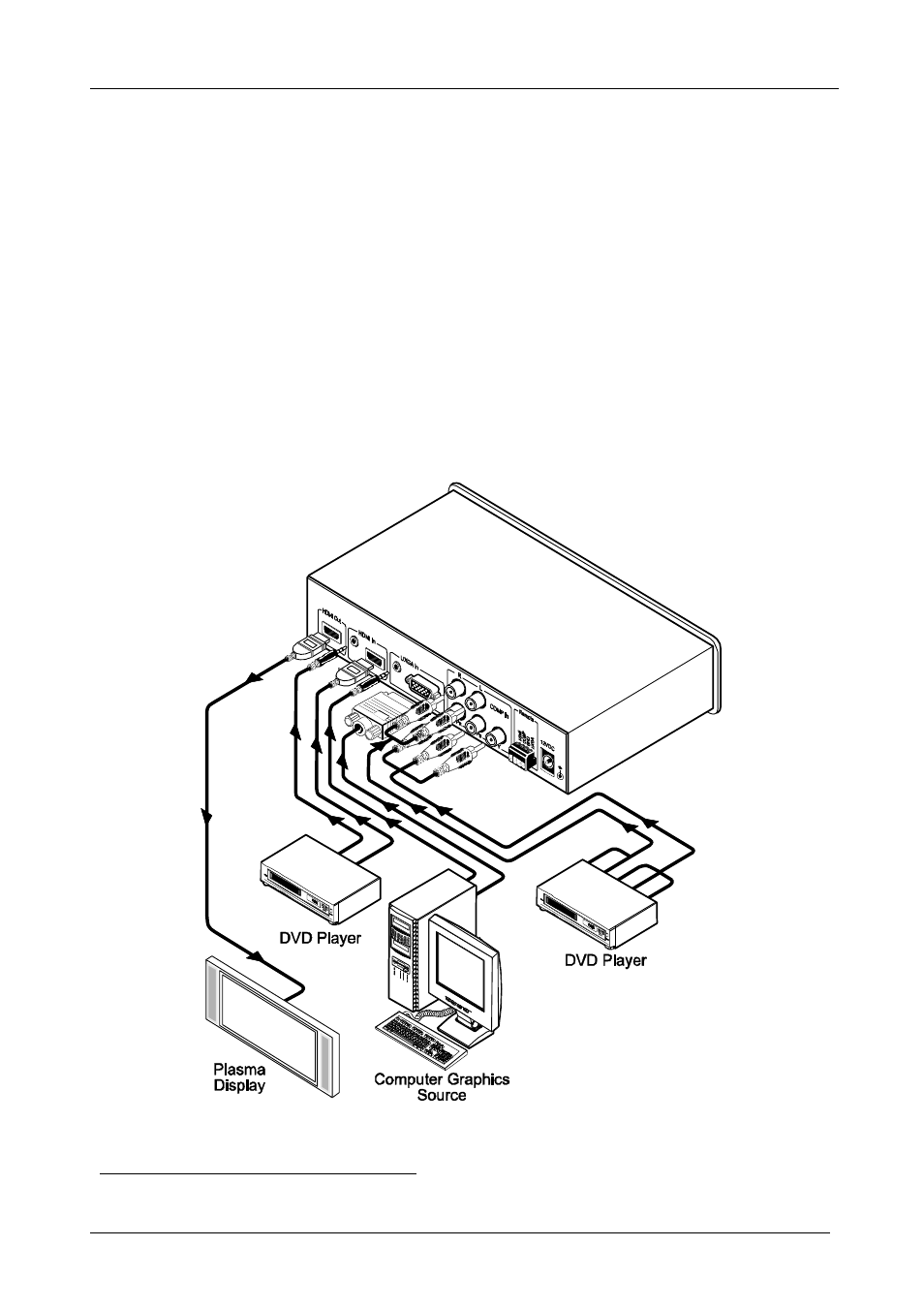

Figure 2: Connecting the CSC-650 Component / UXGA HDMI Scaler
1 You do not have to connect all the inputs, connect only those that are required
