6.3 Controlling via the Infrared Remote Control Transmitter

You can control the

CSC-650 from the infrared remote control transmitter, as

Figure 4 and Table 5 define:

Table 5: Infrared Remote Control

Transmitter Functions

Keys

Function

SIZE

Set the size of the image displayed

POWER

Turn the transmitter ON or OFF

Select the component video input

Select the UXGA input

HDMI

Select the HDMI input

VGA

Set the output resolution to VGA

SVGA

Set the output resolution to SVGA

XGA

Set the output resolution to XGA

SXGA

Set the output resolution to SXGA

UXGA

Set the output resolution to UXGA

1080i

Set the output resolution to 1080i

480p

Set the output resolution to 480p

720p

Set the output resolution to 720p

1080p

Set the output resolution to 1080p

INFO

Displays the selected input, the input

and output resolutions and the firmware

versions on the OSD

NATIVE

Select the output resolution from the

EDID of the connected HDMI monitor

Four navigation keys

Press to accept changes

Enter the OSD menu

EXIT

EXIT the menu

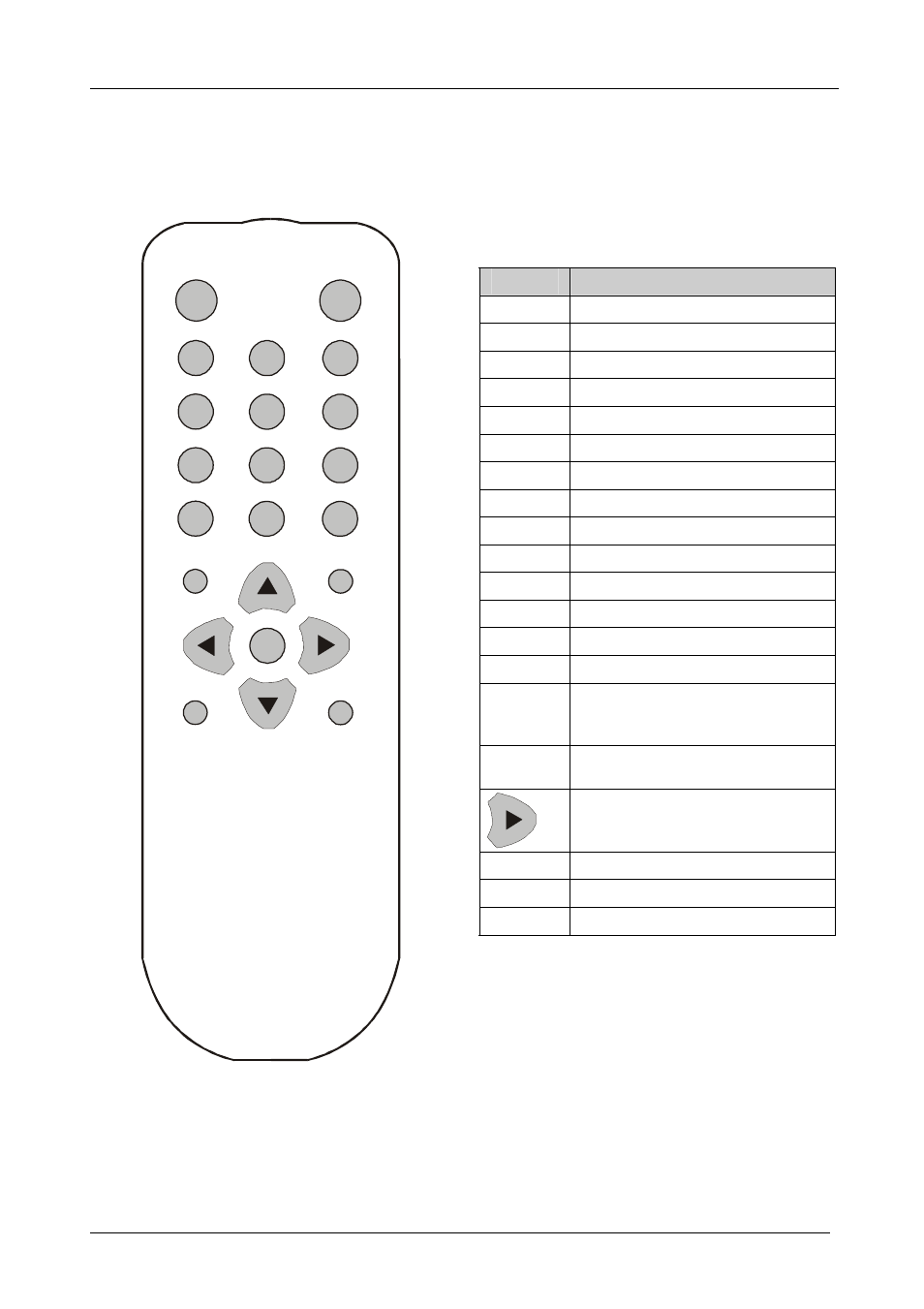

Figure 4: Infrared Remote Control

Transmitter
