3
5 Connecting Your CDA-CV20 1:2 Component Video DA
To connect a CDA-CV20, as the example in Figure 2 illustrates, do the
following 1 :
1. Connect a component video source (for example, a DVD player) to the Y,
P
B
/C
B
, and P
R
/C
R
INPUT RCA connectors.
2. Connect the two sets of OUTPUT (Y, P
B
/C
B
, and P
R
/C
R
) RCA
connectors 2 to up to two component video acceptors (for example, a
display and a projector).
3. Connect the 12V DC power adapter (wall transformer) to the 12V DC
socket and connect the transformer to the mains electricity.

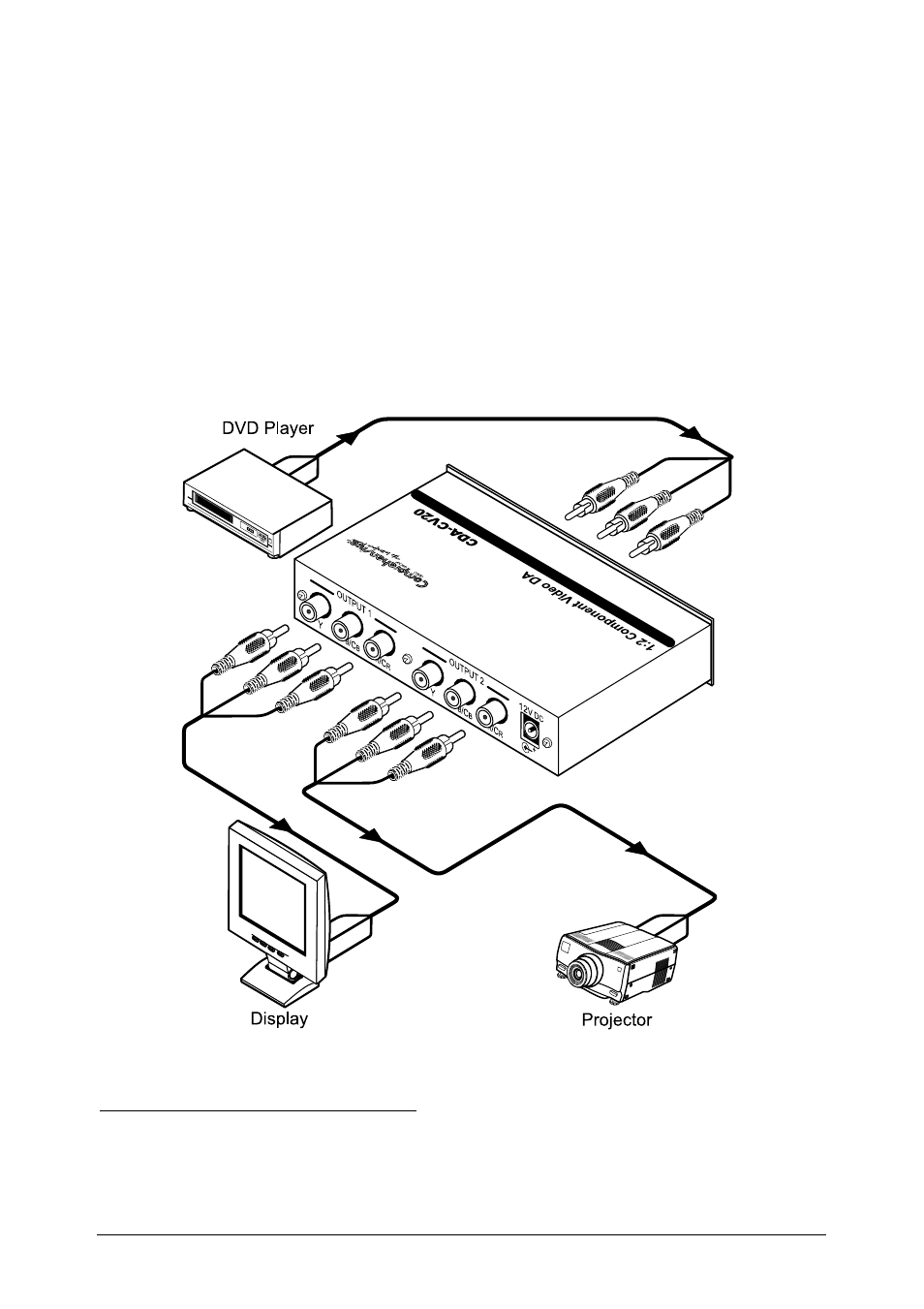

Figure 2: Connecting a CDA-CV20
1 Switch OFF the power on each device before connecting it to your CDA-CV20. After connecting your CDA-CV20, switch
on its power and then switch on the power on each device
2 When only one output is required, connect only that output, and leave the other output unconnected
