4 Your CDA-CV20 1:2 Component Video DA

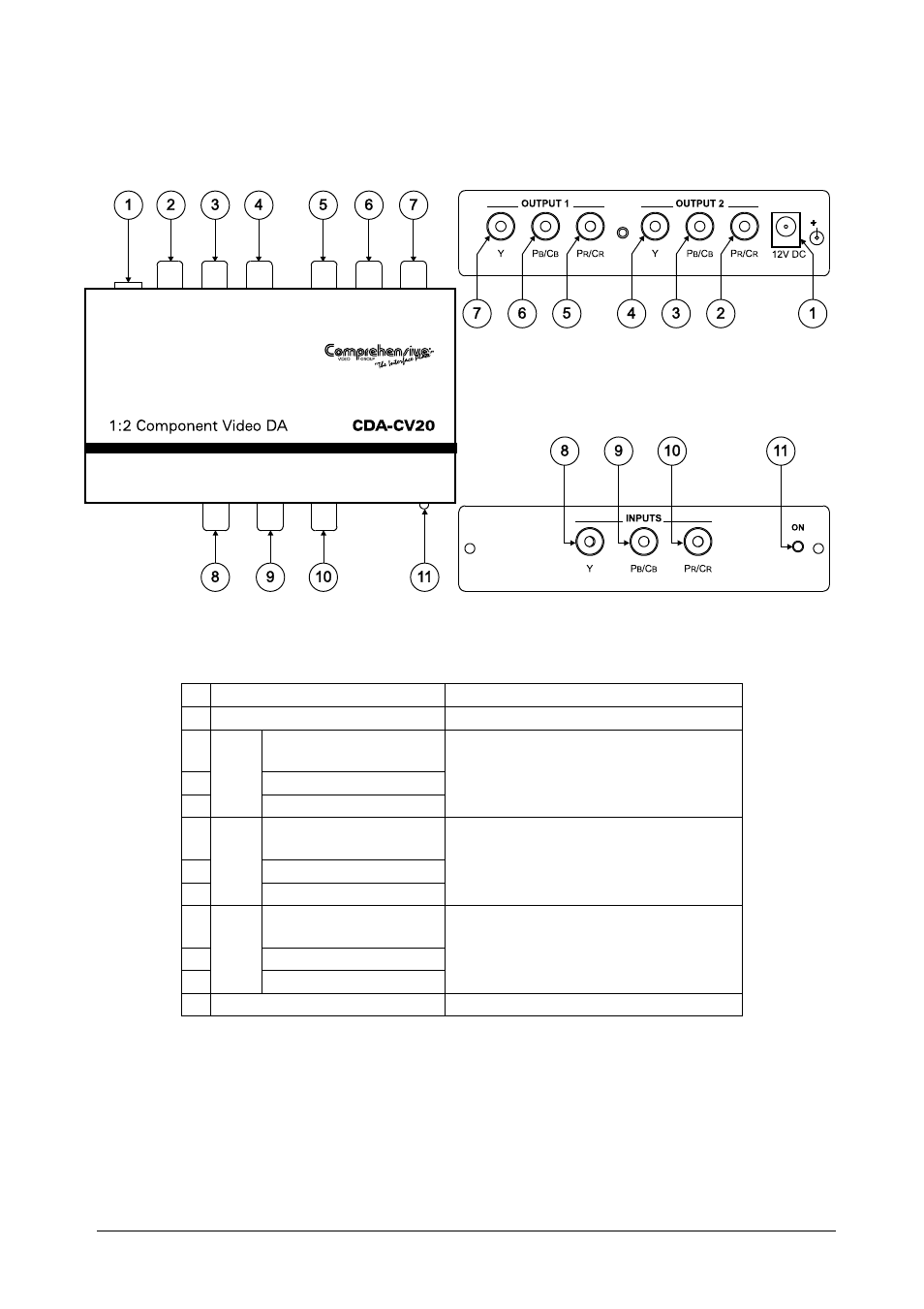

Figure 1 and Table 1 define the CDA-CV20 1:2 Component Video DA:
Figure 1: CDA-CV20 1:2 Component Video DA
Table 1: Features and Functions of the CDA-CV20 1:2 Component Video DA
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 P R /C R RCA Connector
3 P B /C B RCA Connector Connect to the component acceptor 2
4
O
U
TP
U
T
2
Y RCA Connector
5 P R /C R RCA Connector
6 P B /C B RCA Connector Connect to the component acceptor 1
7
O
U
TP
U
T
1
Y RCA Connector
8 Y RCA Connector
9 P B /C B RCA Connector Connect to the component source
10
IN
P
U
TS
P R /C R RCA Connector
11 ON LED Illuminates when receiving power
