CVBS or S-Video + R/L to HDMI converter
2
Limited Warranty 2 Years Parts and Labor
Environmental
Operating Temperature 0 to +70
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10 to +80
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply 5V DC@1A
Power Consumption 5 watts (max)
Regulatory Approvals
Converter Unit FCC,CE,RoHS
Power Supply CE,FCC,UL
Accessories Adapter
AC Power Adapter US/EU/UK/AU standard and so on
User Manual English Version
Note: Specifications are subject to change without notice.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
Main unit
5VDC Power Supply
User's Manual

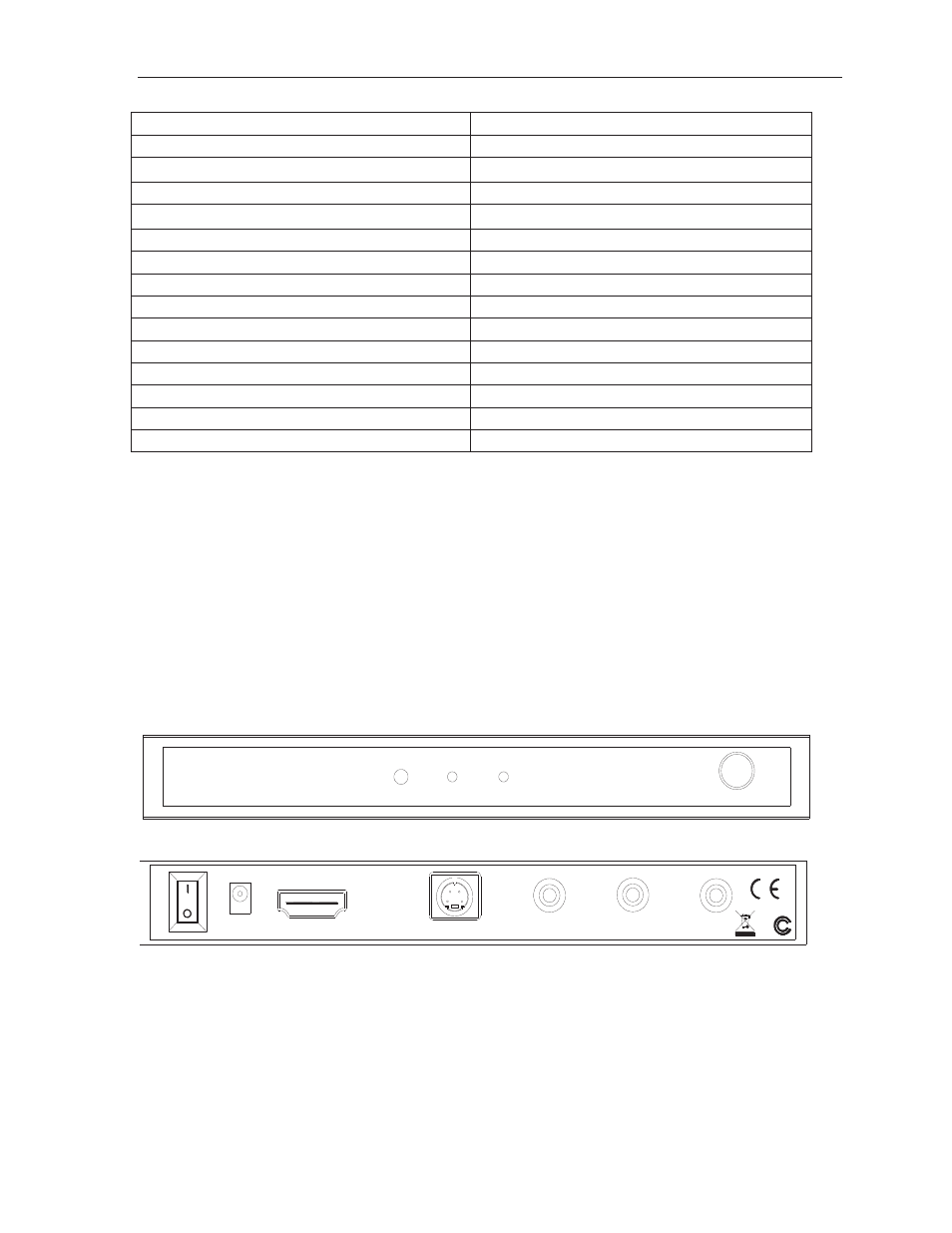

4.0 PANEL DESCRIPTIONS
Power Video S-Video
DC/5V Video Output
Select
R L
F
S-Video
5.0 CONNECTTION AND OPERATION
1. Connect all input and output devices to this converter
2. Connect the 5V power supply.
3. Press “select” to select CVBS or S-VIDEO
