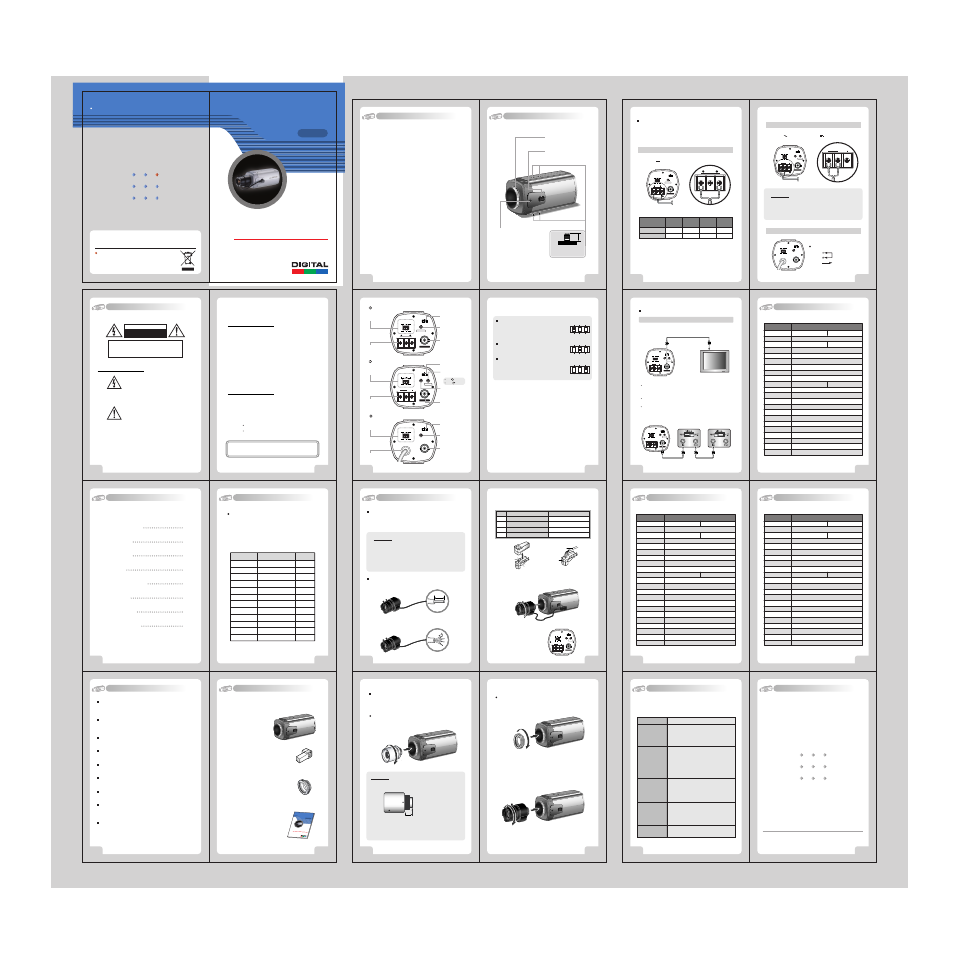

CNB G2315PF User Manual

Color ccd, Owner's manual

LENS

ADJUST

LENS

ADJUST

LENS

ADJUST

LENS

ADJUST

LENS

ADJUST

LENS

ADJUST

LENS

ADJUST

LENS

ADJUST

VIDEO

ELC

Class 2 Only

OFF

D / N

OFF

BLC

AC 24V / DC 12V F.G

LEVEL

V.PHASE

VIDEO OUT

VIDEO

ELC

Class 2 Only

OFF

D / N

OFF

BLC

AC 24V / DC 12V F.G

LEVEL

V.PHASE

VIDEO OUT

VIDEO

ELC

Class 2 Only

OFF

D / N

OFF

BLC

DC LEVEL

DC 12V

VIDEO OUT

VIDEO

ELC

Class 2 Only

OFF

D / N

OFF

BLC

AC 24V / DC 12V F.G

LEVEL

V.PHASE

VIDEO OUT

LENS

ADJUST

LENS

ADJUST

Notes

The lens is not supplied with this camera. Purchase a lens suitable
for your environment. This camera accepts the auto iris lens and
both C-and CS-mount lens.

1. Peel approximately 8mm from the end of the lens cable outer
cover.

2. Peel approximately 2mm from the end of the cable inner cover.

Installing Auto Iris Lens

Installing C/CS-Mount Lens

. If the lens is marked with fingerprints or other marks,

the image quality might be poor.

Notes

. Be sure to connect power after all the installation is done.
. Note that AC adaptor is not supplied with camera.
. Use only AC 24V/DC12V UL listed class 2 power supply.
. Do not use power sources other than that specified.

. It is recommended to use a high quality lens to improve the

image quality under low illumination.
. Use auto iris lens with DC type only.

3. Remove the cover from the iris lens plug supplied, and solder the lens

cable to the plug as shown below.

4. Remove the protective cap, and attach the lens to the camera by turning

clockwise.

5. Connect the lens plug to the auto iris connector on the right side of the

camera.

6. Set the DC/ VIDEO/ ELC selection switch to DC or VIDEO or ELC according

to the type of the lens.

No. 3 Pin

No. 1 Pin

connector

Lens cable

No. 4 Pin

No. 2 Pin

1. Attach the C-Mount lens adapter by turning clockwise.

2. Attach the lens to the camera by turning clockwise.

Notes

Before mounting a lens, please check whether it is a C-mount or
CS-mount lens.
The back focus is set for the CS-mount lens at the factory.

Mounting a CS-Mount Lens
After removing the protecting cap, attach the lens into the camera
by turning clockwise.

. Use the lens under the specification as shown. Otherwise the

lens can damage the camera or abnormal fixing may result.

. A heavy lens may disturb the balance with the camera and

possibly result in damage. Don't use a lens heavier than 450g.
. It is recommended to set the lens ALC mode to Av mode(Average).

Pk mode can be occurred hunting.

C-mount lens : 10 mm or less

CS-mount lens : 5 mm or less

Each model has different power specification, please check the name of
the model and power specification before connecting to power source.
Please refer to the sticker identifying the model, which is attached on the
product, for power specification.

For DC12V Power Type Only

. The wire is polarized. Be careful of polarity.

. Use DC 12V power source.

Resistance of copper wire [at 20℃ (68˚F)]

. Voltage drop may be experienced by the camera as per length of the power
cable according to the table above. The camera may malfunction of the
length of the output line between the camera and the adaptor is too long.

* Voltage for camera operation: DC 12V ± 10%
* Voltage drops on above table are variable according to types of electric
cord and makers.

Copper wire size

(AWG)

Resistance(Ω/m)

#18

(0.83㎟)

Voltage Drop(V/m)

#24

(0.22㎟)

#22

(0.33㎟)

#20

(0.52㎟)

0.078

0.050

0.030

0.018

0.028

0.018

0.011

0.006

For AC24V / DC12V Power Type

For AC100V~AC240V Power Type [High & Normal]

. The wire is non-polarized.

. Use AC 24V power source or DC 12V power source.

OWNER'S MANUAL

P/N : 3810-0023V

(Ver.0607E)

Color Video Camera Series

Digital Color Camera Series

Design and specifications
are subject to
change without notice.

Thank you for purchasing this COLOR VIDEO CAMERA.

1. Model Description

If you have trouble operating your camera, refer to the following table.
If the guidelines do not enable you to solve the problem, contact an
authorized technician.

Problem

Solutions

Nothing appears on
the screen.

The image on the
screen is dim.

The image on the
screen is dark.

The camera is not
working properly,
and the surface of
the camera is hot.

The image on the
screen flickers.

• Check that the power cord and line connection
between the camera and monitor are fixed properly.
• Check that you have properly connected VIDEO
cable to the camera VIDEO output jack.

• Is lens stained with dirt? Clean your lens with soft,
clean cloth.
• Set the monitor to proper condition.
• If the camera is exposed to too strong light, change
the camera position.
• Adjust the lens' focus properly.

• Adjust the contrast feature of the monitor.
• If you have an intermediate device, set the 75Ω/ Hi-z
properly. (refer to page 18)
• Adjust DC Level, VR Level properly. (refer to page 10, 11)

• Check that you have properly connected the camera
to an appropriate power source.
(refer to page 16-17)

• Is the camera facing to direct sunlight or fluoresent
lighting? Change the camera position.

8. Troubleshooting

Name and Function

Do use the camera under conditions where temperatures are within
-10°C to 50°C. Especially be careful for ventilation under high temperature.

Do not install the camera in extreme temperature conditions.

Do not install or use the camera in an environment where the

humidity is high.

It can cause the image quality to be poor.

Do not install the camera under unstable lighting conditions.
Severe lighting change or flicker can cause the camera to work improperly.

Never use the camera close to a gas or oil leak.

It can cause malfunctions to occur.

Do not disassemble the camera.

There are no user-serviceable parts inside it.

It can cause malfunctions to occur.

Do not drop the camera or subject them to physical shocks.

Never keep the camera face to strong light directly.

It can damage CCD.

Do not expose the camera to rain or spill beverage on it.

If it gets wet, wipe it dry immediately. Liquids can contain minerals that
corrode the electronic components.

Note
When this camera is installed near wireless communication
devices that emits strong electromagnetic field, irregularity
such as noise on the monitor may appear.

Features

3. Composition

6. Connection

. Contents

Model Description

Precautions

Composition

Features

Name and Function

Connection

Specifications

Troubleshooting

. User Information

CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Explanation of two Symbols

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of un-insulated

"dangerous voltage" within the product's

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance-(servicing) instructions in the

THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE
ON THE BOTTOM OF THE SYSTEM.

"WARNING-TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THE UNIT TO RAIN OR MOISTURE"

enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

literature accompanying the appliance.

2. Precautions

Pin.No.

VIDEO TYPE

1
2
3
4

RED (Power Source)

N.C

WHITE (Video signal)

BLACK (GND)

DC TYPE

--- Damping -
--- Damping +

--- Drive +
--- Drive -

For BNC Video Output Model

Connect the VIDEO out jack to the monitor video in jack.

Camera

CCD Camera

Intermediate

Video Receiver

End monitor

As the connecting method varies with the instruments, refer to the
manual supplied with the instrument.

Connect the cable after power is turned off.

Set the 75Ω/ Hi-Z selection switch as shown below if you have an
intermediate device.

Monitor

LENS

Connecting to Power

Connecting to Monitor

Mounting a C-Mount Lens

COLOR VIDEO CAMERA

7. Specifications

-DC 12V Input Model

7. Specifications

-AC 24V/DC 12V Input Model

7. Specifications

-AC 100V~AC 240V Input Model

. Memo

Color Video Camera Series

5. VIDEO/ DC/ MANUAL Lens Selectable

The camera accepts 3 types of lenses (VIDEO/ DC/ MANUAL) and is

set with the VIDEO/ ELC/ DC selection switch.

6. Electronic Iris

Electronic iris shutter is automatically controlled at the speed of

1/60~100,000sec (NTSC models),

1/50~100,000sec (PAL models).

2. High Sensitivity

SONY DSP technology provides best picture with min Illumination of

0.1Lux(Night), 0.3Lux(Day).

3. Backlight Compensation

The backlight compensation technology allows the camera to find the

best picture conditions in any environment and automatically gives a

necessary light level compensation.

4. Auto White Balance

AWB function allows the camera to adjust the white balance

automatically in response to light conditions.

1. High Resolution

The horizontal resolution of 550 TV lines can be achieved by

using a high density CCD having effective 410K pixels, which provides

clean, noiseless and reliable pictures.

2. Day & Night

The camera provides automatic mode changeover by sensing day or

night conditions. It can change color mode in the day condition for

optimal color and BW mode in night condition for clear identification.

① Function Selection Switch

② Lens Selection Switch

Used to choose DC or VIDEO or ELC according to the type of your Lens.

③ V.PHASE Adjustment V.R (AC 24V / DC 12V Input Model)

If the camera is to be used in LineLock mode, the vertical phase may

require adjustment to synchronize the vertical phase of the camera with

other camera in the system. Make this adjustment when the vertical

phase of the camera does not match with other cameras or systems.

For correct adjustment, use a multi-channel oscilloscope.

The V.PHASE adjustment can be readjusted.

④ DC LEVEL Adjustment V.R

Used to adjust video output level of DC driven auto iris lens.

When the brightness control of the monitor does not operate correctly.

⑤ POWER Input Terminal

Used to connect an AC 24V or DC 12V power source.

Used to connect a DC 12V power source.

Used to connect an AC 100V~AC 240V power source.

⑥ VIDEO OUT Jack: Use for installation and service.

High Resolution

Model

Signal System

CCD Pick-up Element

Effective Pixels

Video Output

Sync. System

Luminance S/N Ratio

Resolution

Sensitivity

Lens Mount

Electronic Shutter

White Balance

Auto Gain Control

Back Light Compensation

Day & Night

Flickerless

Applicable Lens

Supply Voltage

Power Consumption

Operating Temperature

Storage Temperature

Dimensions (WxHxD)

Weight

NTSC PAL

2:1 Interalce Transfer 1/3 Inch SUPER HAD CCD

768(H) x 494(V) 752(H) x 582(V)

Composite: 1.0V p-p, 75Ω, Unbalanced

Internal Sync

More than 48dB (AGC OFF)

550 TV lines

0.3Lux (F1.4, 30IRE, AGC ON), 0.1Lux(Night Mode)

C / CS Mount

1/60 ~ 1/100,000 Sec. 1/50 ~ 1/100,000 Sec.

AWB

On / Off Selectable (20dB)

On / Off Selectable

DC Iris / Video Iris / Manual Lens

DC 12V (10V~15V)

150mA, 2W (Max)

-10℃~+50℃(Recommendation : -5℃~+40℃)

-20℃~+60℃

64 x 57.6 x 124.6mm

Approx. 430g

High Resolution

Model

Signal System

CCD Pick-up Element

Effective Pixels

Video Output

Sync. System

Luminance S/N Ratio

Resolution

Sensitivity

Lens Mount

Electronic Shutter

White Balance

Auto Gain Control

Back Light Compensation

Day & Night

Flickerless

Applicable Lens

Supply Voltage

Power Consumption

Operating Temperature

Storage Temperature

Dimensions (WxHxD)

Weight

NTSC PAL

2:1 Interalce Transfer 1/3 Inch SUPER HAD CCD

768(H) x 494(V) 752(H) x 582(V)

Composite: 1.0V p-p, 75Ω, Unbalanced

Internal Sync

More than 48dB (AGC OFF)

550 TV lines

0.3Lux (F1.4, 30IRE, AGC ON), 0.1Lux(Night Mode)

C / CS Mount

1/60 ~ 1/100,000 Sec. 1/50 ~ 1/100,000 Sec.

AWB

On / Off Selectable (20dB)

On / Off Selectable

DC Iris / Video Iris / Manual Lens

AC 100V~AC 240V

3W (Max)

-10℃~+50℃(Recommendation : -5℃~+40℃)

-20℃~+60℃

64 x 57.6 x 124.6mm

Approx. 430g

High Resolution

Model

Signal System

CCD Pick-up Element

Effective Pixels

Video Output

Sync. System

Luminance S/N Ratio

Resolution

Sensitivity

Lens Mount

Electronic Shutter

White Balance

Auto Gain Control

Back Light Compensation

Day & Night

Flickerless

Applicable Lens

Supply Voltage

Power Consumption

Operating Temperature

Storage Temperature

Dimensions (WxHxD)

Weight

NTSC PAL

2:1 Interalce Transfer 1/3 Inch SUPER HAD CCD

768(H) x 494(V) 752(H) x 582(V)

Composite: 1.0V p-p, 75Ω, Unbalanced

Internal Sync

More than 48dB (AGC OFF)

550 TV lines

0.3Lux (F1.4, 30IRE, AGC ON), 0.1Lux(Night Mode)

C / CS Mount

1/60 ~ 1/100,000 Sec. 1/50 ~ 1/100,000 Sec.

AWB

On / Off Selectable (20dB)

On / Off Selectable

DC Iris / Video Iris / Manual Lens

AC 24V (20V~28V) or DC 12V (10V~15V)

2.8W (Max)

-10℃~+50℃(Recommendation : -5℃~+40℃)

-20℃~+60℃

64 x 57.6 x 124.6mm

Approx. 430g

High Resolution Camera

Color CCD

High Resolution Camera

Color CCD

Digital

Cabel

- Brown
- Blue
- Green

AC Power Input

Frame Ground

Tripod Mounting Hole

Used to install the camera on an

optional tripod. The tripod must be

equipped with the screw specified

as shown below.

Auto Iris Lens Connector

Used to connect Auto Iris Lens plug.

C-Mount Lens Adapter

Used to attach C-mount lens.

Focal Length Adjustment

Use this screw to adjust the focal

length.

1/4"- 20 UNC (20 THREAD)

L : 4.5mm±0.2mm (ISO standard),

or 0.197" (ASA standard)

1. Color Video Camera ...................

2. Auto Iris Lens Plug .....................

3. C-Mount Adapter ........................

4. Owner's Manual .....................

DIGITAL CAMERA SERIES

COLOR VIDEO CAMERA

INFORMATION

This equipment has been tested and found to comply with limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at their own expense.

WARNING

The manufacturer could void the user's authority to operate the
equipment.

CAUTION - To prevent electric shock and risk of fire hazards:

Do NOT use power sources except for that specified.
Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person
and should abide to all local codes.

AC24V/DC12V

Class 2 Only

F.G

DC 12V

Class 2 Only

FL (Flickerless)

If the camera is used with 50Hz fluorescent lighting,

there maybe flicker on the screen. In this case, FL switch

should be set to ON position. But, FL switch should be

set to OFF position if 60Hz power source is used.

D/N (Day & Night)

It selects D/N on, off function.

It senses day and night according to AGC level.

BLC (Back Light Compensation)

This feature would be useful when camera is facing an

object that has excessive light behind it. BLC prevents

the center of object from too much darkness.

E.g.: Video camera in the store facing the entrance doors.

D/N

OFF

BLC

OFF ON OFF

D/N

OFF

BLC

OFF ON OFF

D/N

OFF

BLC

OFF ON OFF

OWNER'S MANUAL

COLOR VIDEO CAMERA

Color CCD

COLOR VIDEO CAMERA

Color CCD

Digital DSP

Before operating the camera, confirm that you have the right
camera model and proper power voltage.
In order to help you understand this manual, we'll introduce
our model's description.

D&N(ICR)

O
O
O
O
O
O
X
X
X
X
X
X

Signal System

NTSC

PAL

NTSC

PAL

NTSC

PAL

NTSC

PAL

NTSC

PAL

NTSC

PAL

Power Input

DC 12V
DC 12V

AC 24V / DC 12V
AC 24V / DC 12V

AC 100V~AC 240V
AC 100V~AC 240V

DC 12V
DC 12V

AC 24V / DC 12V
AC 24V / DC 12V

AC 100V~AC 240V
AC 100V~AC 240V

LENS

ADJUST

LENS

ADJUST

VIDEO

ELC

Class 2 Only

OFF

D / N

OFF

BLC

DC LEVEL

DC 12V

VIDEO OUT

VIDEO

ELC

VIDEO OUT

DC LEVEL

POWER INLET

OFF

D / N

OFF

BLC

VIDEO

ELC

Class 2 Only

OFF

D / N

OFF

BLC

AC 24V / DC 12V F.G

LEVEL

V.PHASE

VIDEO OUT

AC 24V/DC 12V Input Model

③ V.PHASE

Adjustment V.R

① Function

Selection

⑥ Video Out Jack

④ DC LEVEL

Adjustment V.R

② Lens Selection

Swicth

⑤ Power Input

Terminal

Left( ):Internal
Right( ):External

DC 12V Input Model

① Function

Selection

⑥ Video Out Jack

④ DC LEVEL

Adjustment V.R

② Lens Selection

Swicth

⑤ Power Input

Terminal

AC 100V~AC 240V Input Model

① Function

Selection

⑤ Power AC IN

⑥ Video Out Jack

④ DC LEVEL

Adjustment V.R

② Lens Selection

Swicth

VIDEO

ELC

VIDEO OUT

DC LEVEL

POWER INLET

OFF

D / N

OFF

BLC

VIDEO

ELC

Class 2 Only

OFF

D / N

OFF

BLC

AC 24V / DC 12V F.G

LEVEL

V.PHASE

VIDEO OUT

• C

olo

r V

•

Lin

This manual is related to the following products:

G2315NF
