4. OSD Menu
⊙

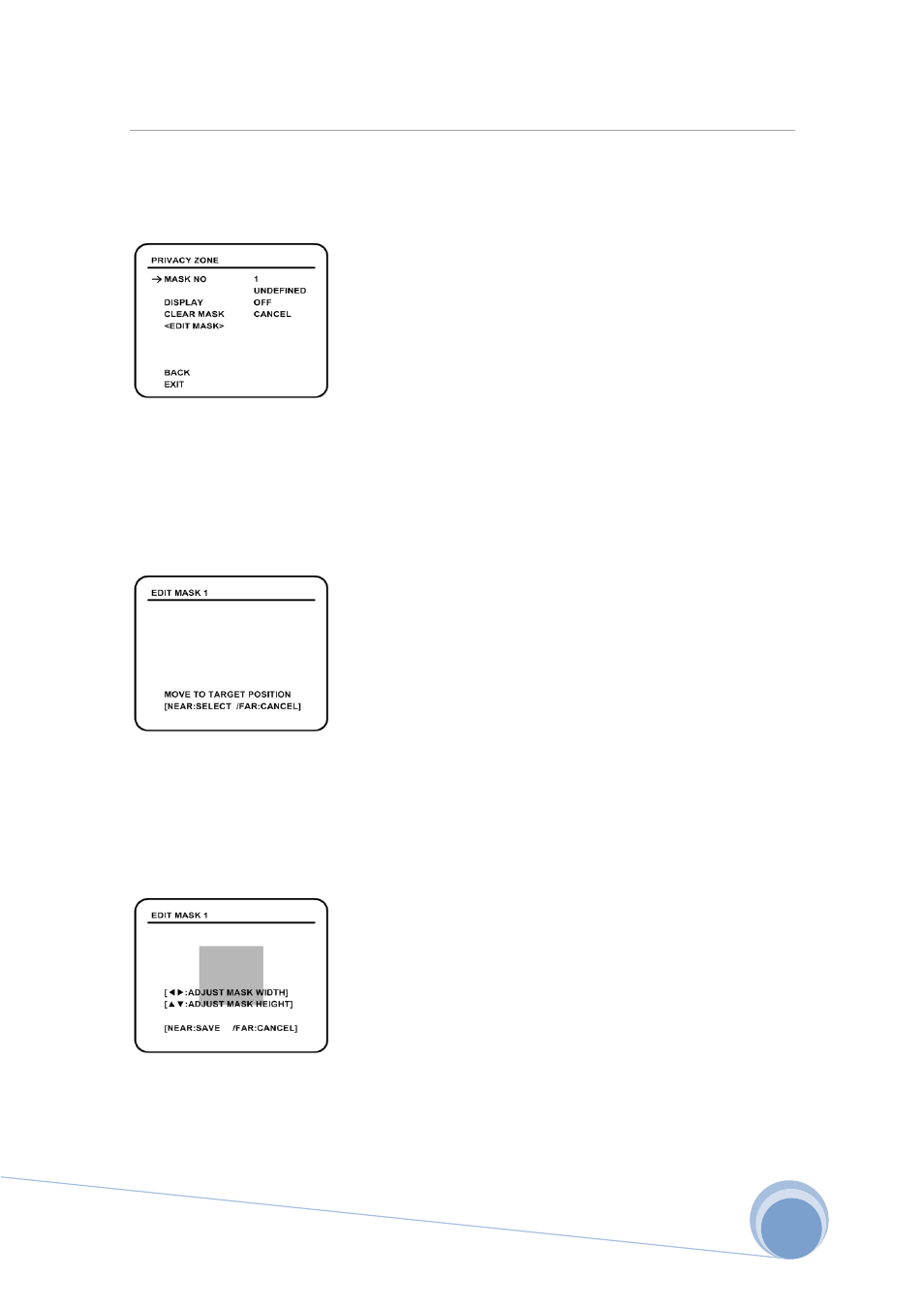

Privacy Zone Mask Setup
(Models S1465N(P)X, S1965N(P)X, SBN-22Z27F /SBN-23Z27F(Option) Only)
Select area in image to mask.
• MASK NO
[1~8]
Select Mask number. If the selected mask has already data, camera moves as it
was set. Otherwise,
“UNDEFINED” will be displayed under “MASK NO”.
• DISPLAY [ON/OFF]
Sets if camera makes mask shows or not on images.
• CLEAR MASK [CANCEL/OK]
Deletes data in the selected mask NO.
■ Privacy Zone Area Setup
Move camera to the area to mask.
Then the menu to adjust mask size will be displayed.
■ Privacy Zone Size Adjustment
Adjust mask size, Use joystick or arrow buttons to adjust mask size.
• ◀▶ (Left/Right) Adjusts mask width.
• ▲▼ (Up/Down) Adjusts mask height.
