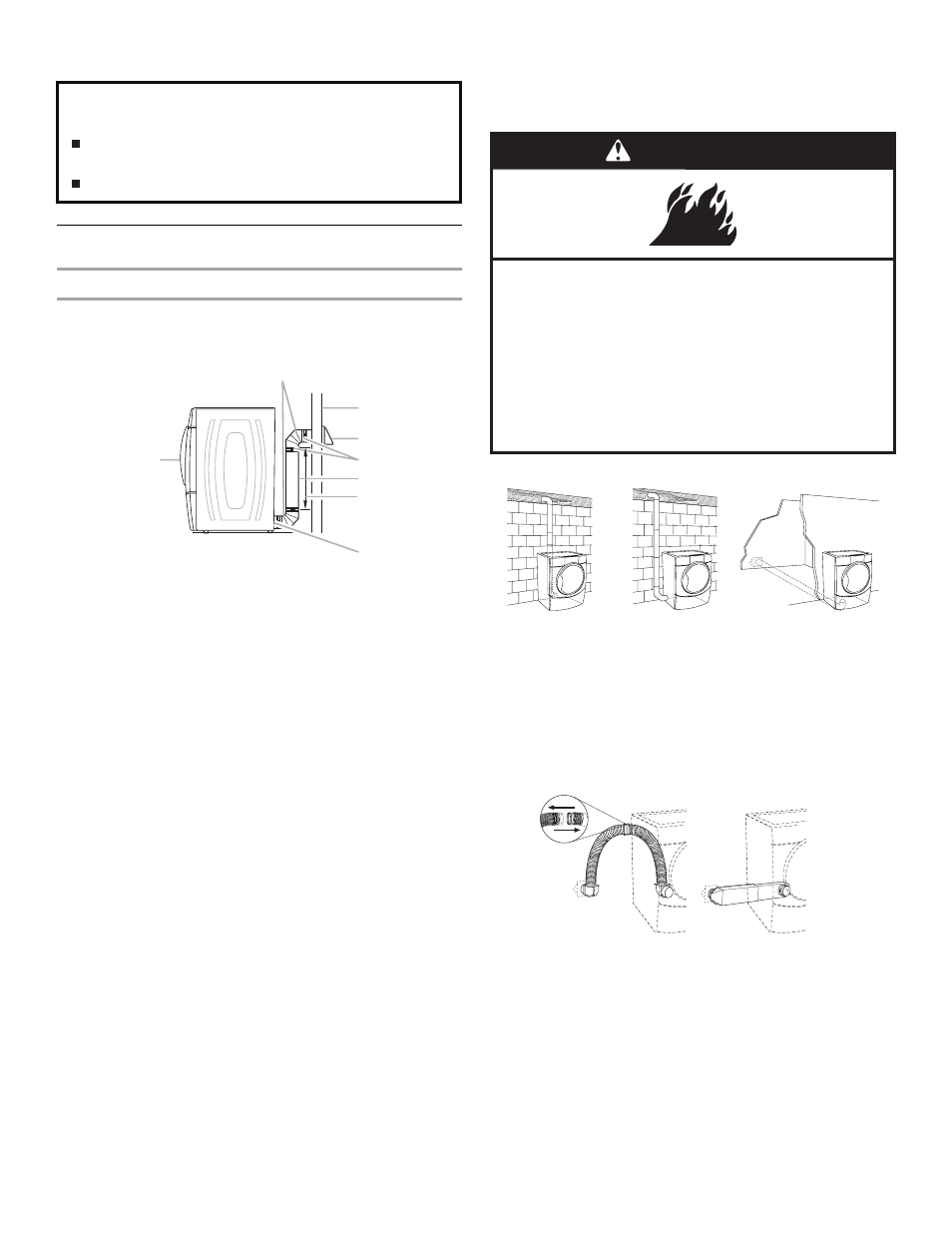

background image

14

Do not use an exhaust hood with a magnetic latch.

Improper venting can cause moisture and lint to collect
indoors, which may result in:

Moisture damage to woodwork, furniture, paint, wallpaper,
carpets, etc.

Housecleaning problems and health problems.

Plan Vent System

Choose your exhaust installation type

Recommended exhaust installations

Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.

H

G

F

E

D

C

A

B

A. Dryer
B. Elbow

C. Wall
D. Exhaust hood

E. Clamps

F. Rigid metal or flexible metal vent

G. Vent length necessary to connect elbows

H. Exhaust outlet

Optional exhaust installations

This dryer can be converted to exhaust out the right side, left
side, or through the bottom.

Contact your local dealer to have the

dryer converted.

WARNING

Fire Hazard

Cover unused exhaust holes with one of the
following kits:

279818 (white)

W10186596 (midnight grey)

Contact your local dealer.

Failure to follow these instructions can result in death,
fire, electrical shock, or serious injury.

A

B

C

A. Standard rear offset exhaust installation
B. Left or right side exhaust installation

C. Bottom exhaust installation (not an option

with pedestal installations)

Alternate installations for close clearances

Venting systems come in many varieties. Select the type best for
your installation. Two close-clearance installations are shown.
Refer to the manufacturer’s instructions.

A

B

A. Over-the-top installation (also available with one offset elbow)
B. Periscope installation

NOTE: The following kits for close clearance alternate
installations are available for purchase. To order, please see

the “Assistance or Service” section.

Over-the-Top Installation:

Part Number 4396028
