【Sensor Input connection】

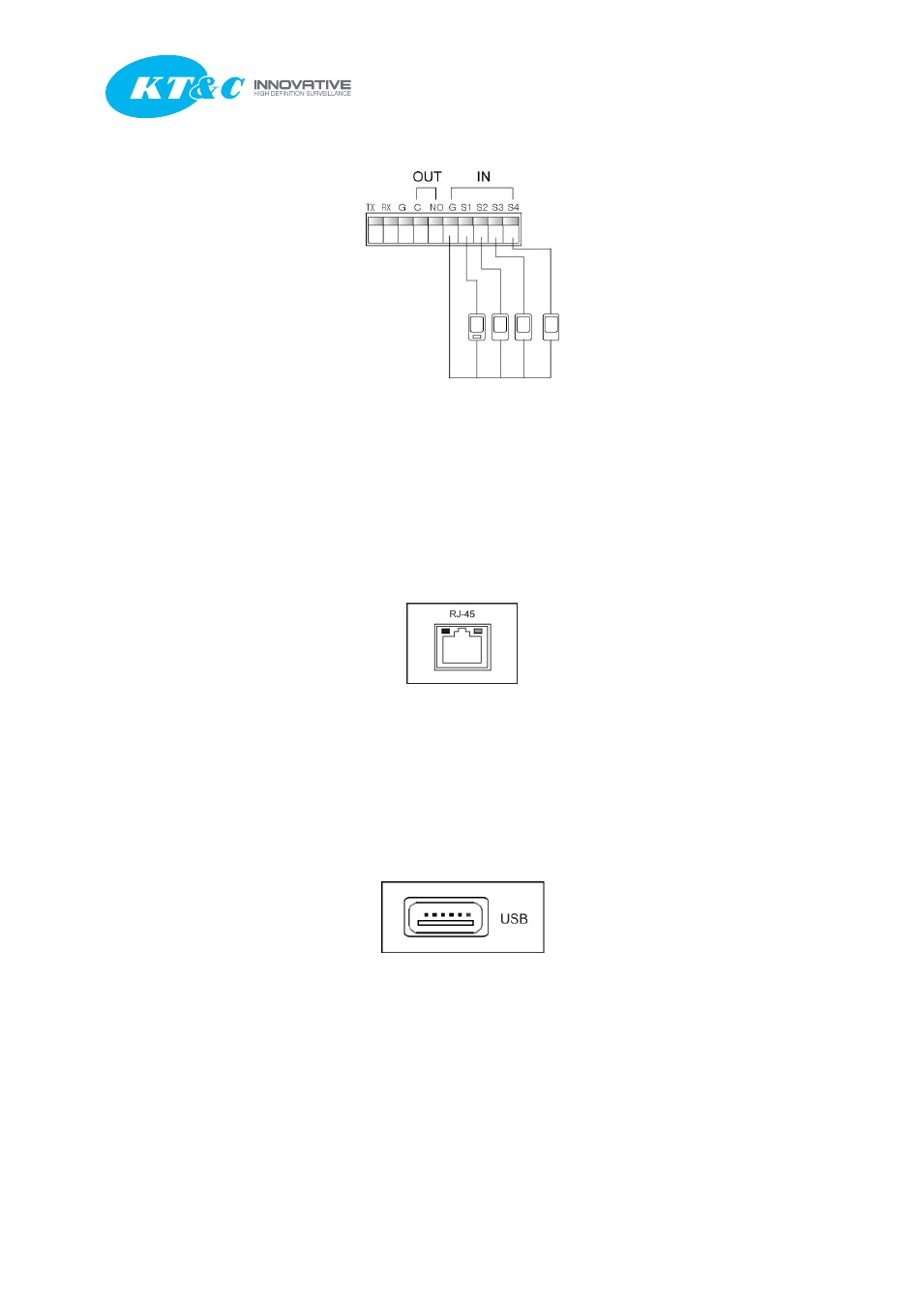

The DVR supports 4 sensor inputs. Please refer to above diagram for proper setup.
【RJ-45 Port(Internet connection)】
The DVR can be connected to the network through 10/100/1000Mbps ethernet connection for
remote viewing capability.
【USB Port】
There are 2 USB ports each on front and back. These ports can be used for firmware upgrade,
backup and mouse connection.
【HDMI Port】
