【RS-485 connection (PTZ camera)】
PTZ camera

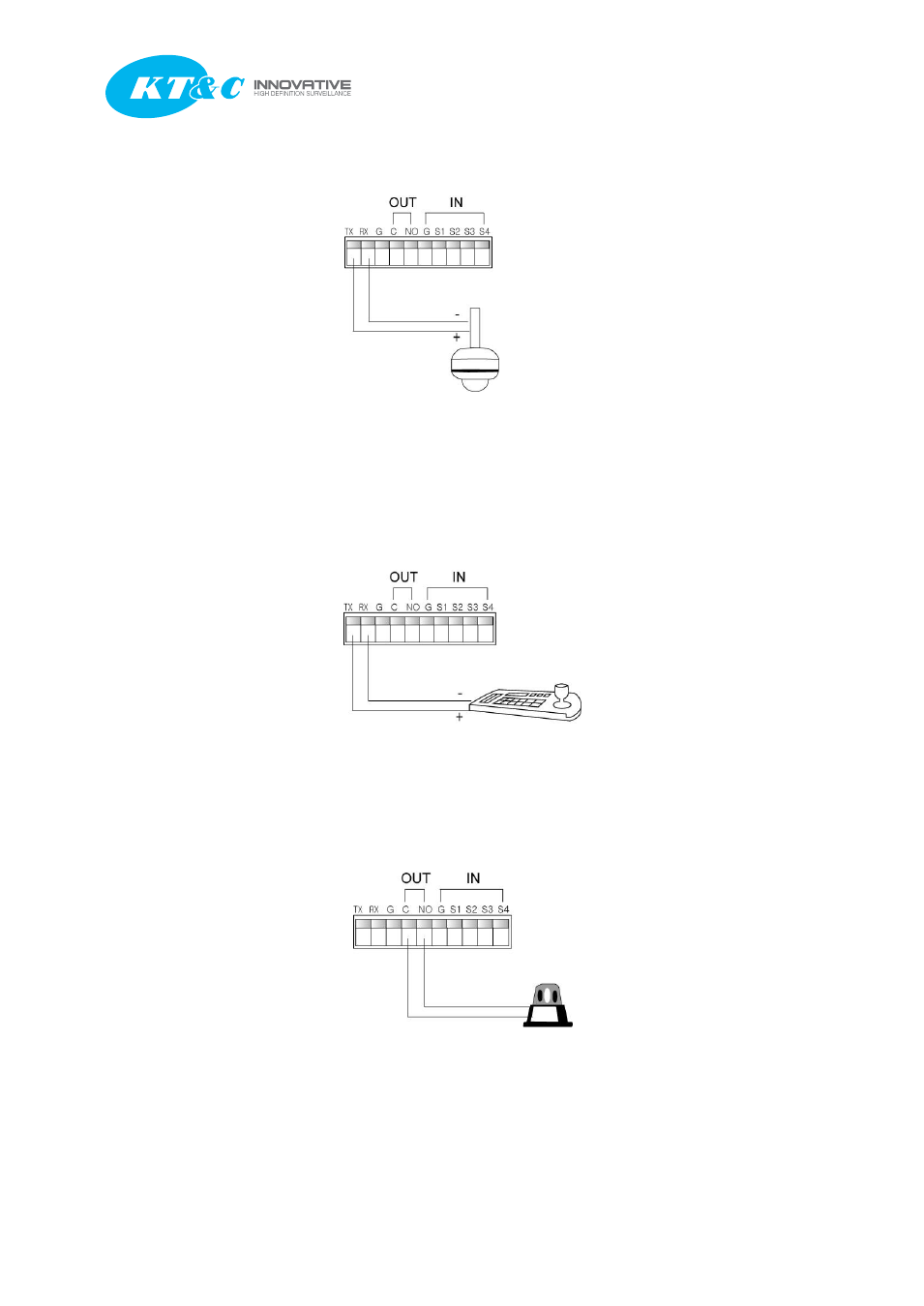

Please refer to above diagram for PTZ connection.
【RS-485 connection (External keyboard connection)】
Please refer to the keyboard manual for setup.
【Alarm Out connection】
It supports 1 alarm out. Please refer to above diagram for proper setup.
