14

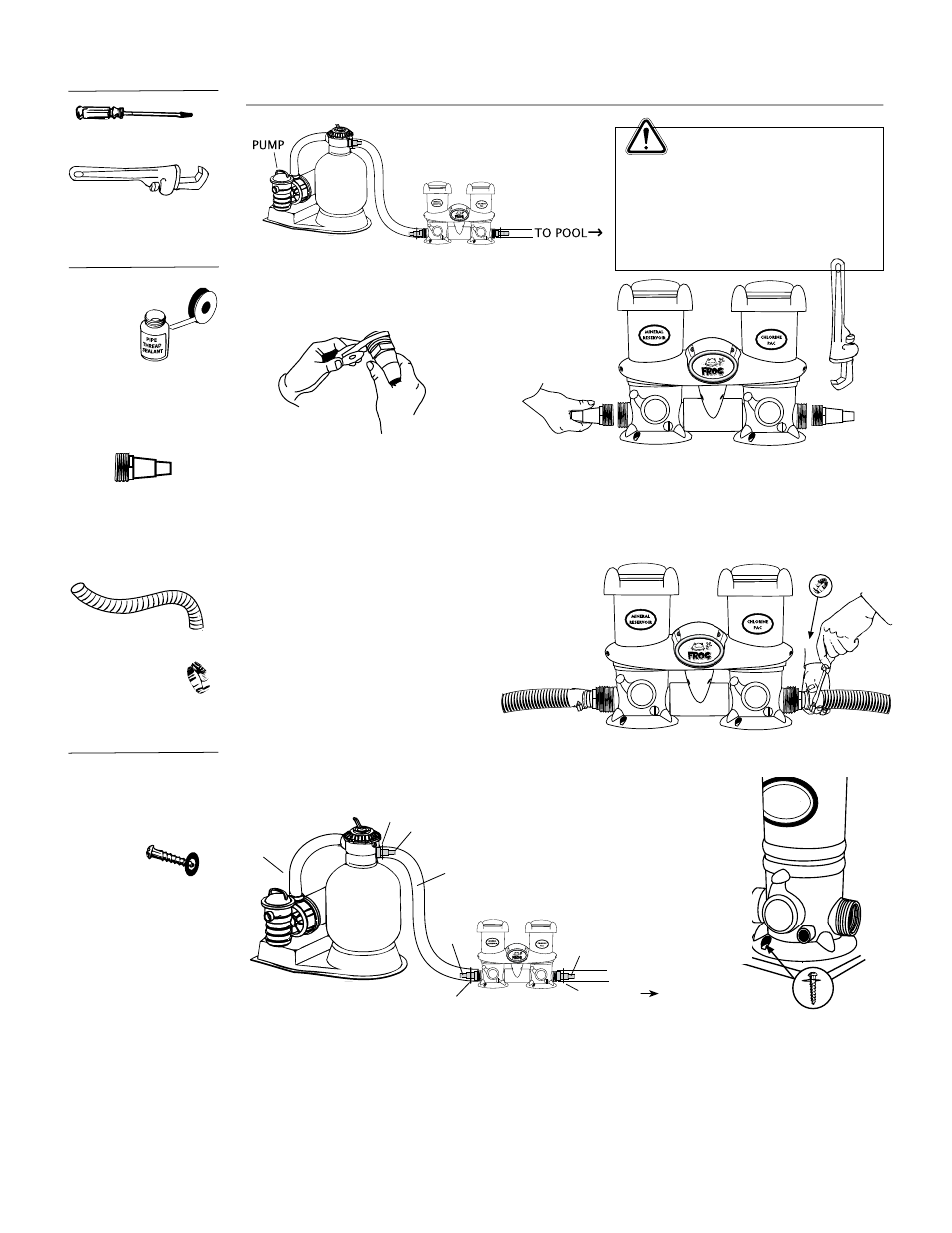

Flex Hose Installation
The POOL FROG TWIN™ Cyclers should always be
installed between the filter and pool (or between
heater and pool if applicable).
Apply pipe thread tape or
sealant to the threaded end
of both hose adapters. Screw adapters into each end of POOL FROG TWIN™
Cycler. Hand tighten. Finish tightening by turning 1 to 2
revolutions with wrench. DO NOT OVER TIGHTEN.
Attach the filter section
of flex hose to one hose
adapter and the return
section of flex hose to the
other hose adapter with
clamps and tighten with
screwdriver.
Bi-flow valve design allows water
flow in either direction.
If using a POOL FROG® Pac installing a corrosion resistant
check valve is recommended.
TOOLS NEEDED
Pipe Wrench
Screwdriver
MATERIALS NEEDED
Pipe Thread Tape
or Sealant
Two Hose Adapters
1 1/2” X 1 1/2” X 1
1/4”
Two Sections
of 1 1/2” Flex Hose
(one provided with
filter)
Two Hose
Clamps
RECOMMENDED
Corrosion Resistant
Check Valve
#10 X 1 1/4” Phillips
Pan Head Screws with
Washers
For better stability, POOL FROG
TWIN™ Cyclers may be mounted
on a base using Phillips pan
head screws. One in front and
two in back.
1. 2.
3.
4. 5.
FILTER
FILTER &
PUMP
HOSE
CLAMP
1 1/2” X 1 1/2” X 1 1/4”
HOSE ADAPTER
1 1/2” OR 1 1/4”
FLEX HOSE
HOSE
ADAPTER
HOSE
CLAMP
HOSE
ADAPTER
HOSE CLAMP
TO POOL
the heater.
that is installed with FROG must be
installed after FROG (never before) on
the return line to the pool.
WARNING
