1. Description
1. Description
1. Description
1. Description
1. Description
The VC-600 Receiver is a wireless receiver that is
designed to be used in conjunction with a VC-600
Camera and VE-500 5-inch LCD Drop-Down
Stereo TV or similar TV with A/V inputs for baby
monitoring, surveillance around the home, etc.
2. Features
2. Features
2. Features
2. Features
2. Features
· A choice of 4 channels for optimum reception.
· 12V AC/DC adapter included.
3. Included In This Kit
3. Included In This Kit
3. Included In This Kit
3. Included In This Kit
3. Included In This Kit
· VC-600 Receiver
· Antenna
· User’s manual
· 3.5x20 screws (4)
· Plastic conical anchors (4)
· 12V AC/DC adapter (500 mA.)
· A/V cable
· White power cable for powering the unit from
a VE-500 5-inch LCD Drop-Down Stereo TV
4. Tools Required
4. Tools Required
4. Tools Required
4. Tools Required
4. Tools Required
· #1 Phillips-head screwdriver
5. Installation Precautions
5. Installation Precautions
5. Installation Precautions
5. Installation Precautions
5. Installation Precautions
· Be careful not to spill any water on the receiver.
· Use a soft cloth moistened with warm water
to wipe off any dust, if necessary.
· Do not shake or vibrate the unit.
· If the receiver does not operate properly,
unplug the unit and contact your local dealer.
6. Installation
6. Installation
6. Installation
6. Installation
6. Installation
· The receiver may be placed on a flat surface
or it may be permanently mounted by using
the four supplied screws and plastic conical
anchors.
· Carefully screw the antenna to the receiver.

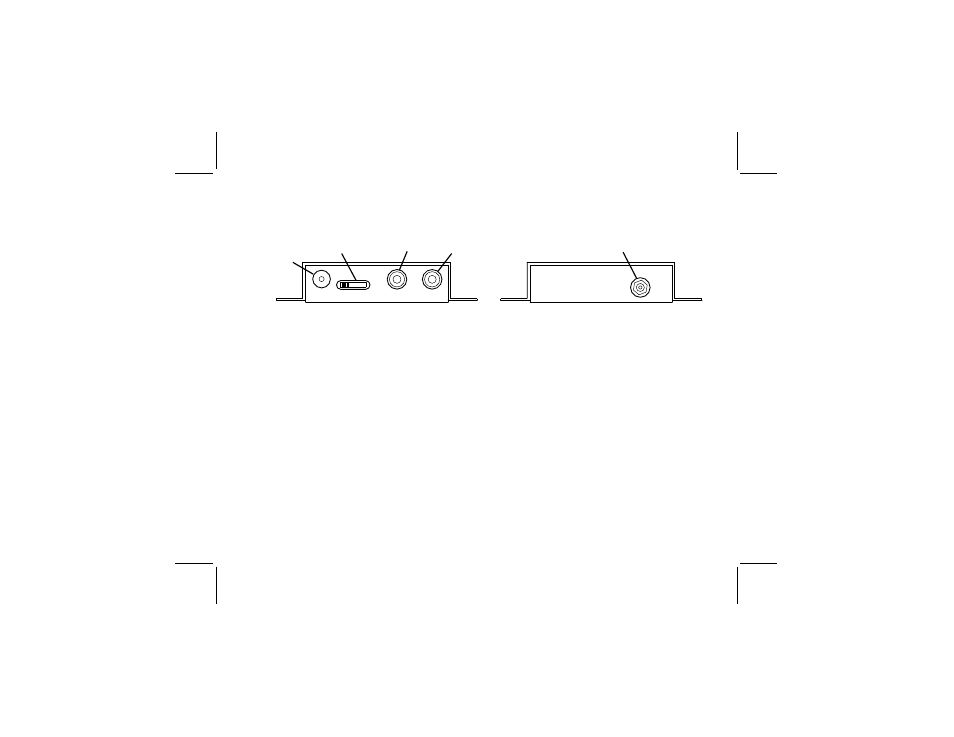

Video+AudioWireless Receiver
Video+AudioWireless Receiver
Video+AudioWireless Receiver
Video+AudioWireless Receiver
Video+AudioWireless Receiver
DC 12V
DC 12V
DC 12V
DC 12V
DC 12V
C H A N N E L
C H A N N E L
C H A N N E L
C H A N N E L
C H A N N E L
SELECTION
SELECTION
SELECTION
SELECTION
SELECTION
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
O U T
O U T
O U T
O U T
O U T
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
O U T
O U T
O U T
O U T
O U T
A N T E N N A C O N N E C T O R
A N T E N N A C O N N E C T O R
A N T E N N A C O N N E C T O R
A N T E N N A C O N N E C T O R
A N T E N N A C O N N E C T O R
