Due to fog residue, smoke, and dust, cleaning the mixer should be carried out periodically to

optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.

2. Use a cleaner specially designed for electronics to spray in and around the knobs and switch. This

will reduce small particle built up that can effect the proper operation of the mixer.

3. Clean should be carried out every 30-60 days.

4. Always be sure to dry all parts completely before plugging the mixer in.
Cleaning frequency depends on the environment in which the mixer operates (i.e. smoke, fog

residue, dust, dew).

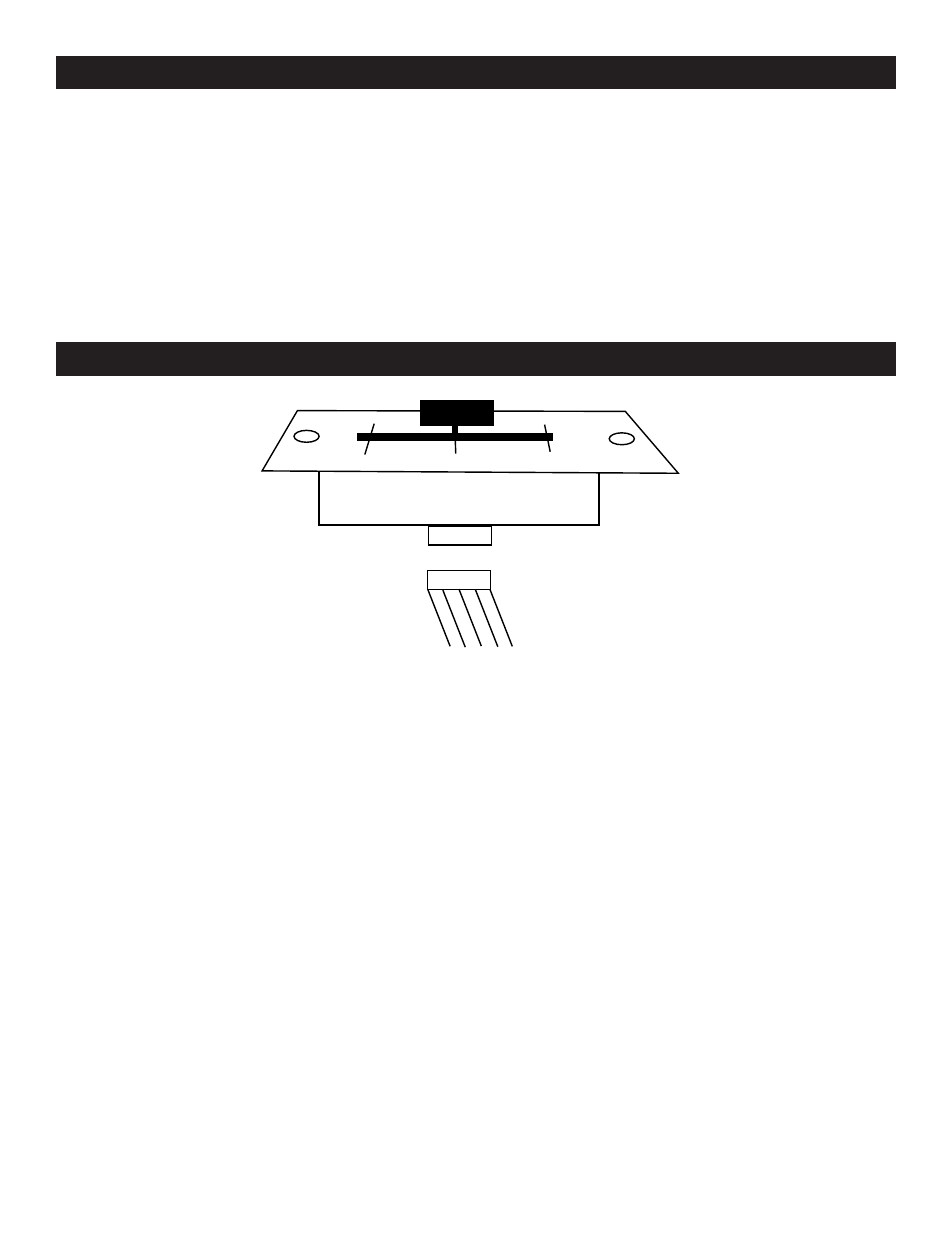

The crossfader is “Hot Swappable” which means it may be replaced at any time, even when power is

applied. Only replace with American Audio Feather Fader Plus. Replacing with any other model fader

may seriously damage your mixer.

Replacing the Crossfader:

1. Disconnect the mixers main power supply

2. Using a number two Phillips screw driver, unscrew the each of the stainless steel retain screws

that hold the crossfader in place.

3. Gently remove the crossfader from its seated position. You may need to wiggle the crossfader

slightly to remove it.

4. After removing the crossfader, disconnect the ribbon cable that attaches the crossfader to the

PC board. Grasp the crossfader by its base and pull the ribbon cable by its connector not the

actual cables. The connector is desired to only fit one way, so don’t worry about the connectors

orientation.

5. Connect the new crossfader to the ribbon cable and replace in reverse order.

XDM-250T™

Cleaning

XDM-250T™

Cross Fader Replacement

©

American Audio

®

- www.americandj.com - XDM-250T™ Instruction Manual Page 9
