XDM-250T™ Controls and Features
1. Cue Level - This knob control the volume level for the headphone output level. Be sure the cue level
is set to minimum before putting your headphones on.
2. Mic Level - This rotary knob is used to control the microphone volume output level.
3. Channel 1 Treble Control - This control is used to increase (+20dB) or decrease (-30dB) the
high frequency volume applied to the channel one source signal. Turn the knob counter-clockwise to
decrease a value or clockwise to increase a value.
4. Channel One Cut Buttons - These buttons are used cut out the Treble, Mid or Bass frequencies
of the incoming audio signal. When these buttons are depressed the selected frequency level is cut
by 100%. When a Cut Button is depressed a LED located directly above the specific button will glow
indicating the cut function has been activated. Pressing the Cut Button once again will disengage Cut
function.
1
14
13
11 10
9
8
7
6
5
4
3
2
15
18
17
16

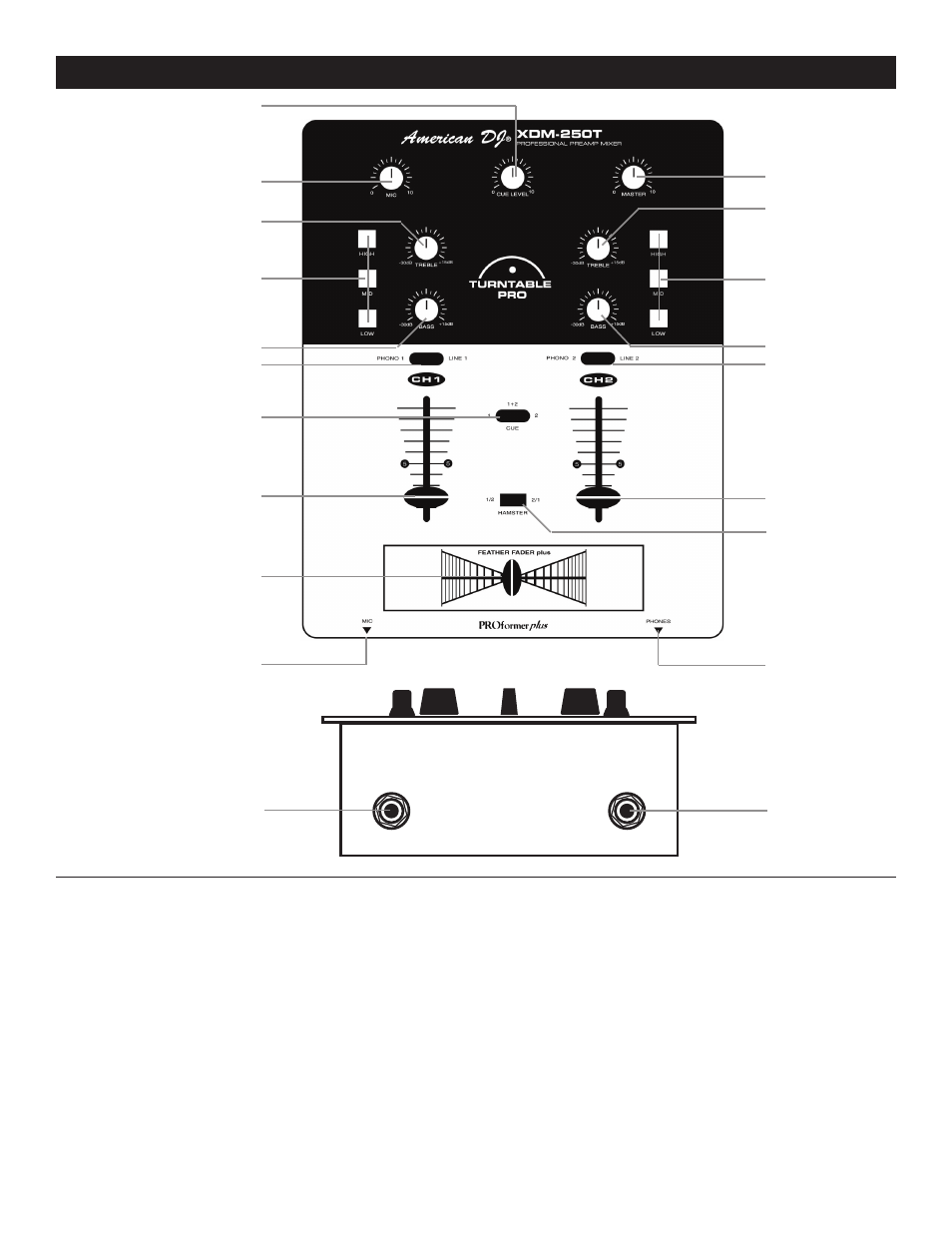

Top Panel
11 10
Front Panel
12
