Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Gigabit
Ethernet Switch, Model 530378 (5-port) or 530347 (8-port). For specifications,
go to intellinet-network.com.
CONNECTIONS
• All ports on the switch support Auto-MDIX functionality, so you can use
straight or crossover UTP/STP cables to connect the RJ45 ports to PCs,
routers, hubs, other switches, etc.
• The LED indicators make monitoring and troubleshooting easier. If a status
LED doesn’t indicate a link or activity, check the corresponding device for
proper setup and operation.
• Use the included power adapter to connect the receptacle on the back of
the switch to a power outlet, and confirm that the Power LED lights.
PLACEMENT
Prior to use, it is recommended that the switch be placed/positioned:
• on a level surface that can support the weight of the switch (and any other
items that need to be considered);
• with a minimum of 25 mm (approx. 1”) of clearance on the top and sides
for adequate ventilation;
• away from sources of electrical noise: radios, transmitters, broadband
amplifiers, etc.;
• where it cannot be affected by excessive moisture.
2
ENGLISH
Gigabit Ethernet Switch • User Manual English

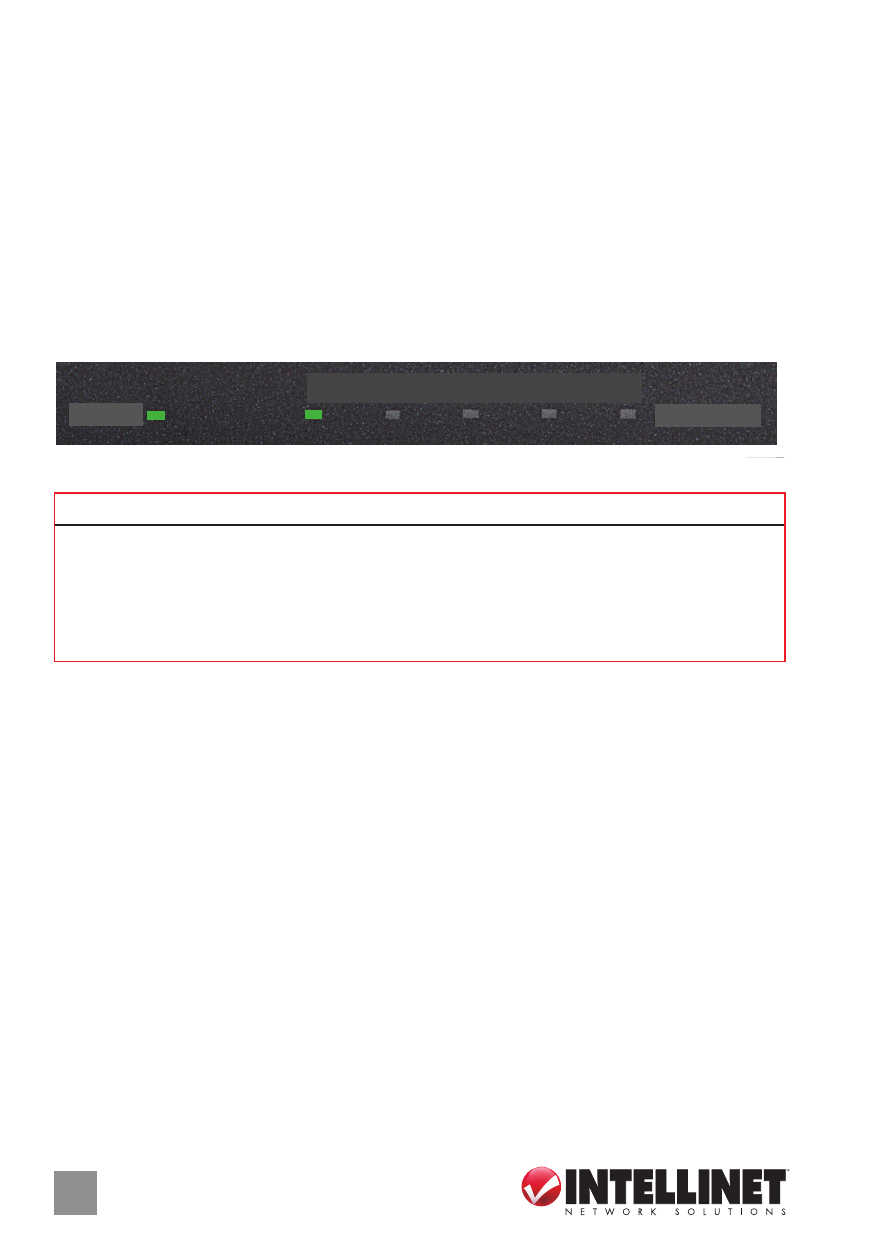

LED Status Operation
POWER On Power on
Off Check connection; turn power on
Link/ACT On Valid port connection
Blinking Data transmitted/received
Off No link established
1 2 3 4 5
POWER LINK/ACT
