3
sc Sensor Plug and sc Sensor Coupling
Pin assignment of sc Sensor Plug and sc Sensor Coupling
Important Note: Incorrect connecting of the cables will impact the function of the
instrument and/or damage the instrument.
Use cable end sleeves for the wire connection!
Note: Isolate the clamp 5 (Position 5) with the provided shrink hose!

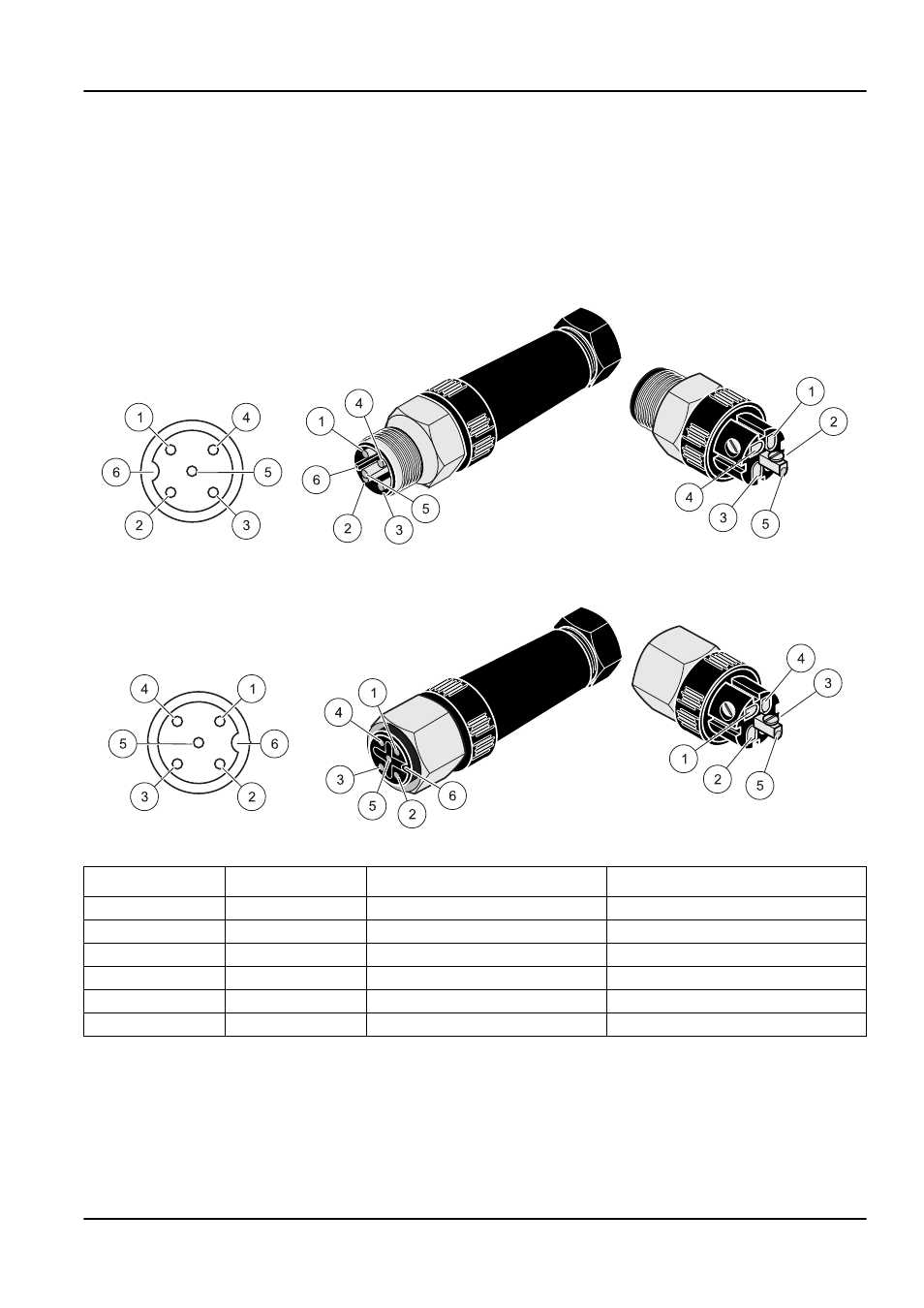

Figure 3 Pin assignment sc Sensor Plug
Figure 4 Pin assignment sc Sensor Coupling
Pos. clamp number Assignment Wire color
1 1 +12 V DC brown
2 2 Data (–) white
3 3 Data (+) blue
4 4 Ground black
5 5 Screen grey
6 6 Guidance –
