Page 14
14
IOM-8900 Series

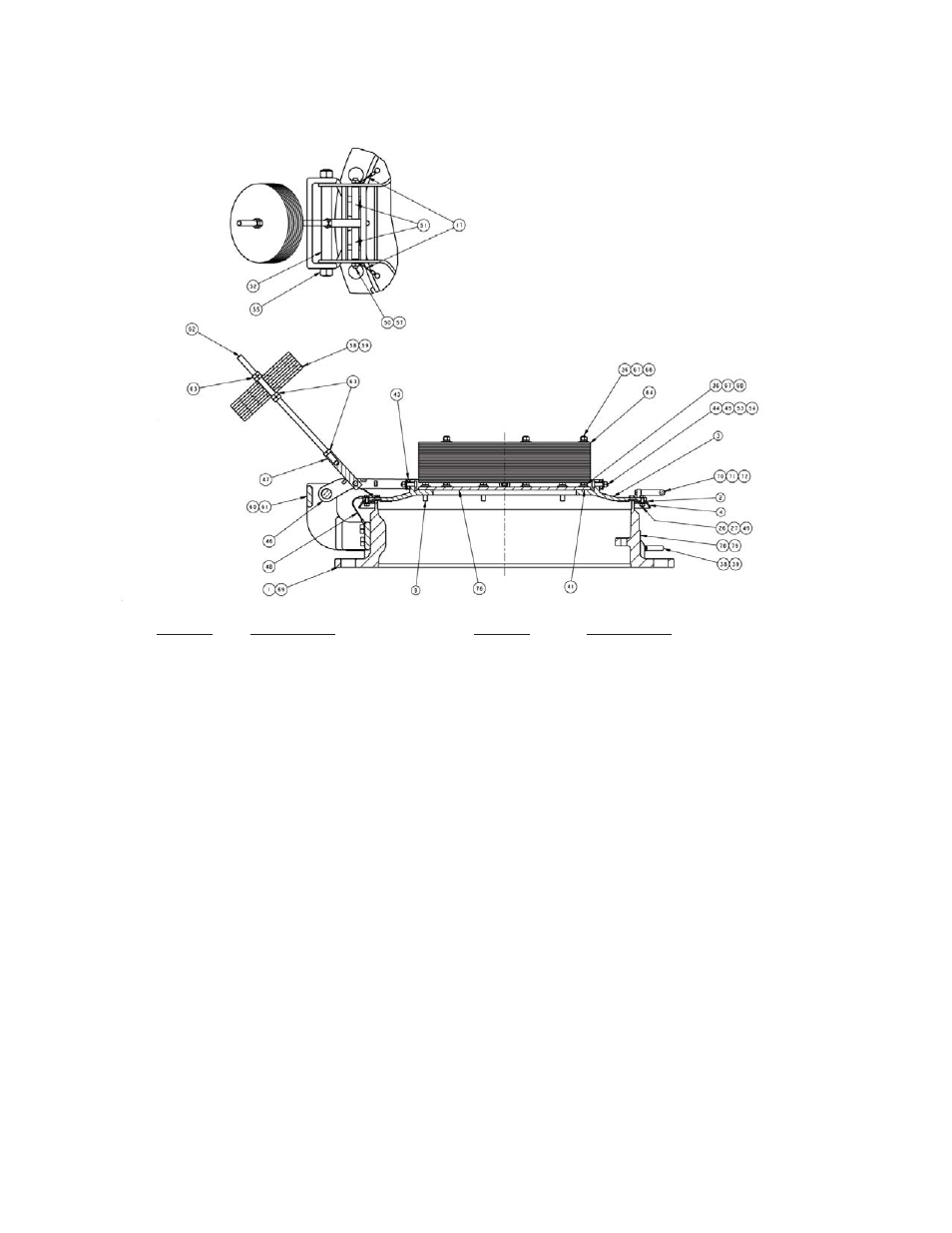

Figure 3
MODEL 8930 PRESSURE ERV
Hinged Design
ITEM
NO.
DESCRIPTION
ITEM
NO.
DESCRIPTION
1.
Flange Seat
43.
Pallet Swival
2.
Press. Pallet Diaphragms
*
44.
Shoulder Screw - Pivo Clip
3.
Pressure Pallet
45.
Plain Washer - Pivo Clip
4.
Diaphragm Retainer (Press.)
46.
Pin Arm Assembly
5.
Seat Ring Gaskets
*
47.
Weight Arm
6.
Screen
48.
Strap
7.
Weather Collar
49.
Cap Screw
8.
Seat Ring
50.
Pin - Counter Weight
9.
Cap Screw
51.
Spacer _ Weight Arm
10.
Weather Hood Support
52.
Hinge Pin
11.
Weather Hood
53.
Lock Washer - Pivot Clip
12.
Rivet Nut
54.
Cap Screw - Pivot Clip
13.
Lower Spring Canister
55.
Hex Nut - Hinge Pin
14.
Vacuum Spring Button
56.
Cotter Pin - Vacuum Pallet
15.
Upper Spring Canister
57.
Cotter Pin - Counter Wt. Pin
16.
Vacuum Spring
58.
Counter Weight (SST)
17.
Stablizer Cable
59.
Counter Weight (Lead)
18.
Vacuum Pallet
60.
Hinge
19.
Vacuum Pallet Diaphragm
*
61.
Hinge Bolt
20.
Diaphragm Retainer (Vac.)
62.
Stud - Counter Weight
21.
Pallet Stem - Vacuum
63.
Lock Nut - Counter Weight
22.
Flat Washer
64.
Pressure Weight
23.
Lock Washer
67.
Flat Washer
24.
Finish Nut
68.
Lock Washer
25.
Jam Nut - Canister
69.
Set Screw - Slotted
26.
Lock Washer
70.
Handle
27.
Nut
71.
Handle Screws
28.
Cap screw - Canister
72.
Handle Lock Washer
36.
Cap Screw - Weather Hood
73.
Seat Ring Nut
38.
Jam Nut - Lift Lug
74.
Seat Ring Lock Washer
39.
Eye Bolt
76.
Vacuum Cover
40.
Flame Screen
41.
Weather Collar Gasket
*
* Recommended Spare Parts
