Water distiller features – Hydrotech Precision-PWS 12-20 OWNERS GUIDE User Manual
Page 9
9

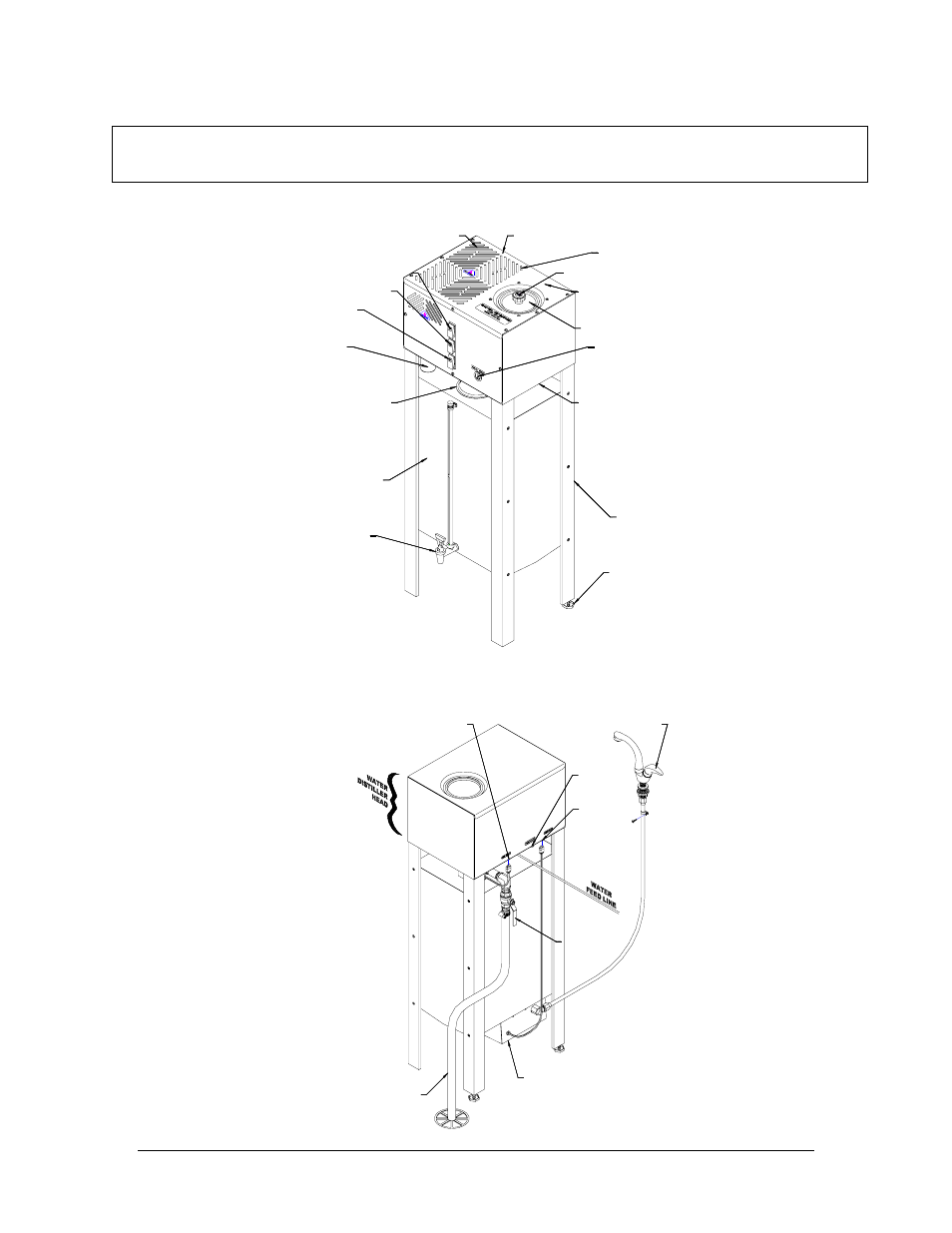

Water Distiller Front View
Water Distiller Rear View
Water Distiller Features
CONDENSING COIL SHIPPING STRAP
(REMOVE BEFORE USE)
CONDENSING COIL (INSIDE)
GAS RELEASE VENT
(HIDDEN)
BOILING TANK LID KNOB
BOILING TANK (INSIDE)
BOILING TANK LID
OVERHEAT RESET SWITCH
WATER DISTILLER HEAD
STORAGE TANK
LEGS
ADJUSTABLE FEET
SIGHT GAUGE AND
DRAIN VALVE
STORAGE TANK
STORAGE TANK LID
CHARCOAL FILTER
CANISTER BODY
POWER SWITCH
FAN SWITCH
WATER SWITCH
OPTIONAL PUMP KIT
PANTRY FAUCET
REPLACEABLE
FUSE
ACCESSORY
PUMP
CONNECTION
ACCESSORY DRAIN
CONNECTION
IMPURITIES DRAIN
BALL VALVE
(OPEN POSITION)
DRAIN TUBE
FLOOR DRAIN
