Common Components
Item No. Part No. Description
6 48004 Brine Well Cap
10 61577 Meter
11 60049 Bypass
To order replacement parts, contact the distributor at the address on the last page of this manual.

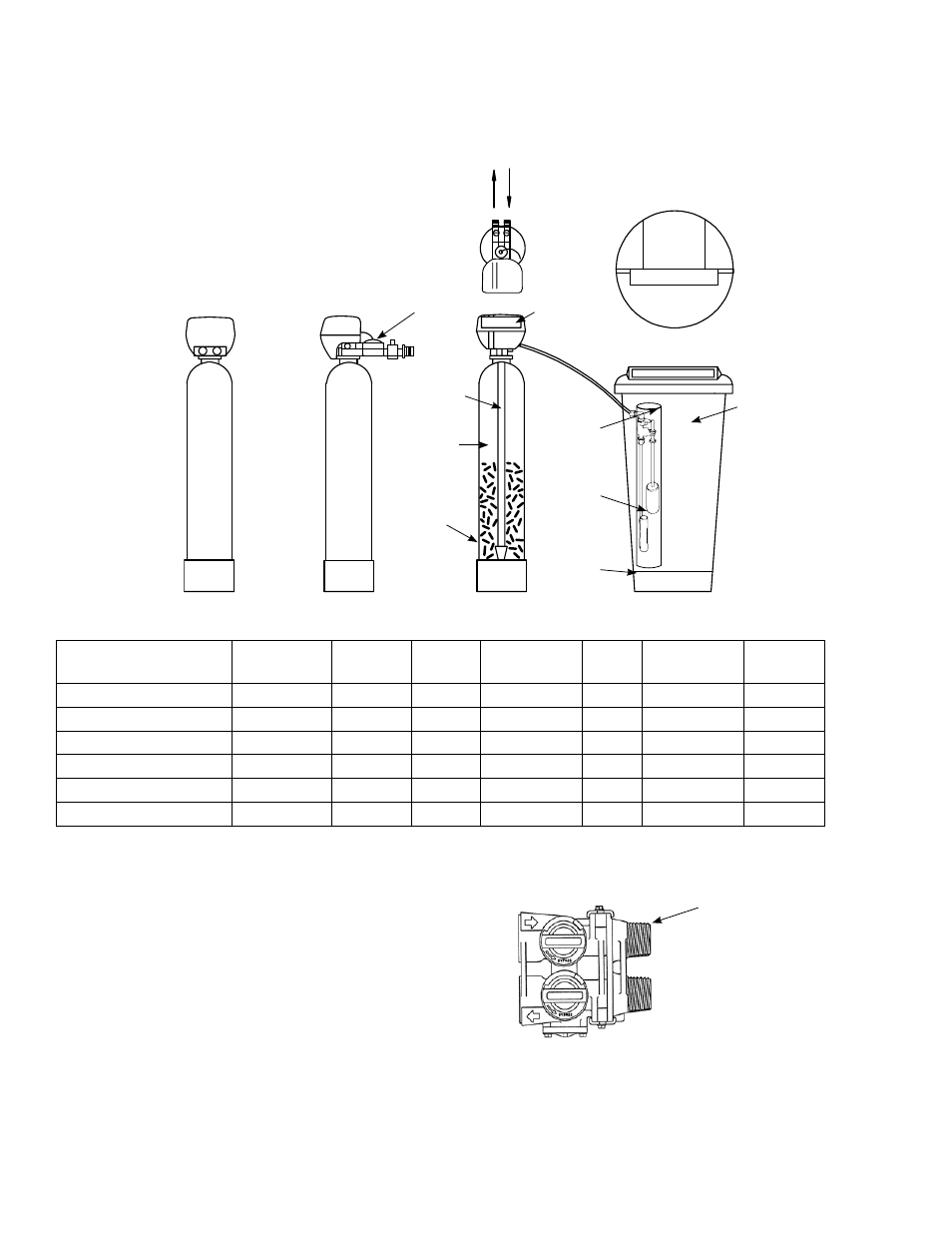

Parts Breakdown
Model
Description
Distributor
(1)
Valve
(2)
Tank
(3)
Brine Tank
(4)
Grid
(5)
Safety Float
(7)
Resin
#21501
6700DF-20 19478 6701-50 100012 100284 N/A 13624 0.75 CF
6700DF-20 (8 x 44) 19478 6701-50 100036 100284 N/A 13624 0.75 CF
6700DF-30 19478 6701-51 100037 100284 N/A 13624 1.0 CF
6700DF-30 (10 x 35) 19495 6701-63 100041 100284 N/A 13624 1.0 CF
6700DF-45 19477 6701-52 100038 100367 19725 13624 1.5 CF
6700DF-60 19477 6701-53 100402 100367 19725 13624 2.0 CF
BACk VIeW SIDe VIeW
FroNT VIeW
ToP VIeW -
BrINe TANk
Inlet outlet
3
Resin
1
2 10
4
7
11
BrINe TANk
5
6
