Valve State:
CHG (Change of State)
CHG will be displayed when the lower drive changes from one state to another in dual piston valves.
INI (Initializing)
INI will display on the screen for 30 to 45 seconds when initializing after a power failure reset or programming.
RGQ (Regeneration Queued)
RGQ indicates that the reserve has been entered in a delayed system and regeneration has been queued. When in the
main screen, press the Shift button to toggle service (SRV) with RGQ.
Service (SRV)
SRV will display when the unit is in service.

LED Status Lights:
Blue LED:
Illuminates while the unit is in service and no errors exist. The unit will always be in service unless a regeneration trigger
has occurred (green LED light will be displayed).
Green LED:
Illuminates when the unit is in Regeneration mode, unless an error condition exists.
Red LED:
Illuminates when there is an error.

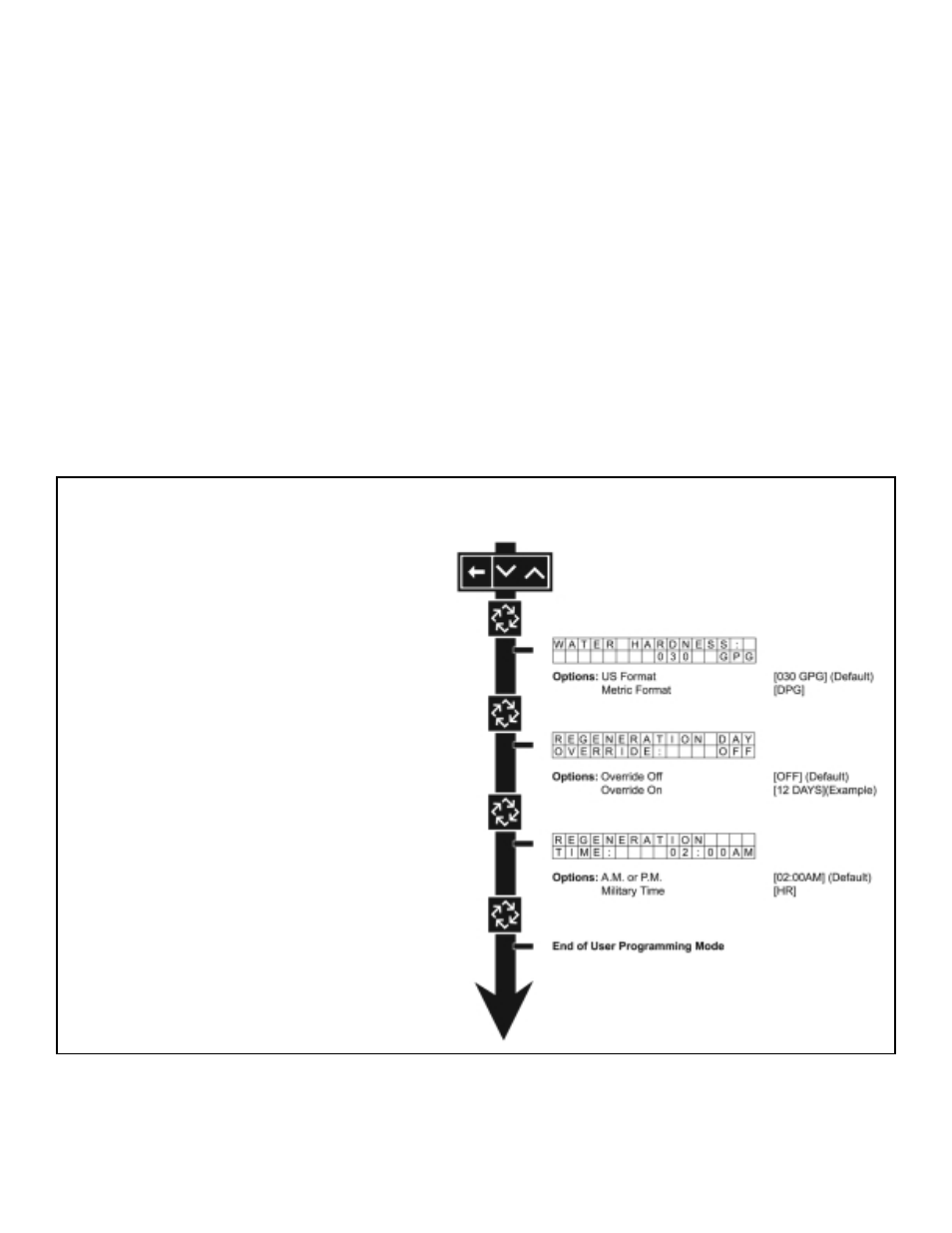

Model 6700XTR Programming Chart - Customer Use

To enter USER PROGRAMMING MODE, press
and hold the Up and Down buttons for 5 seconds.

NOTE: Depending on current option settings,

some displays cannot be viewed or set.
