C. DQX Audio Wiring
Planning: As you may already have guessed, there
are numerous ways to configure the DQX in your
audio system. Spend a little quality time planning
out your system and even sketching it out on
paper. The following diagrams are just a few of the
system options:

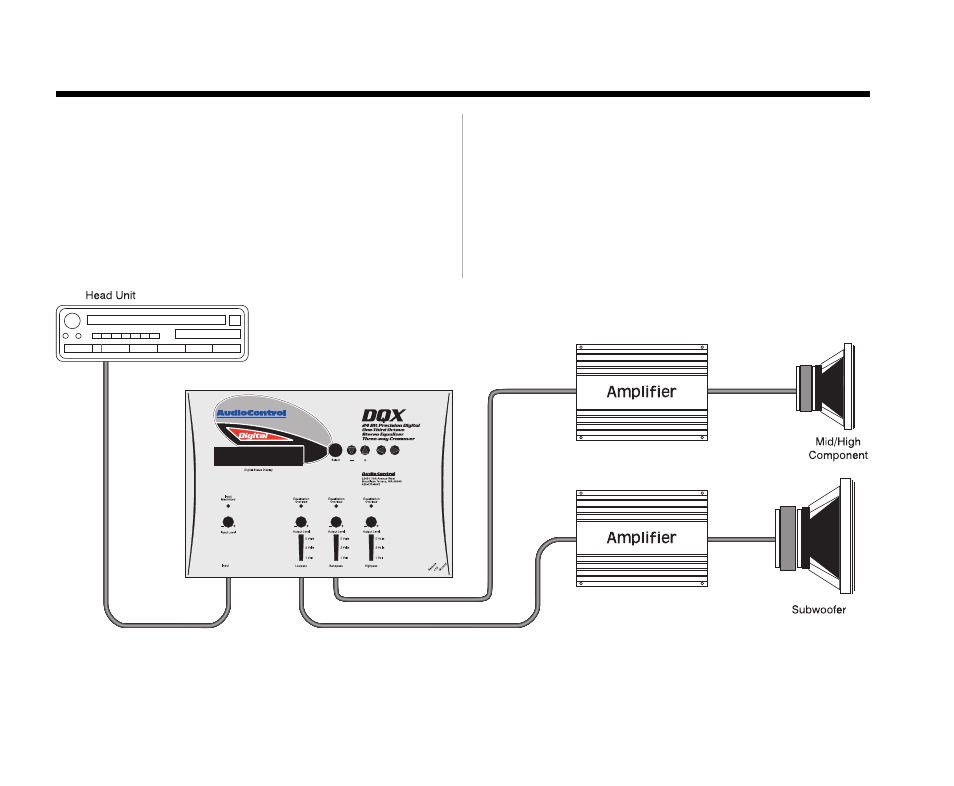

Figure 4: DQX in a two-way system
