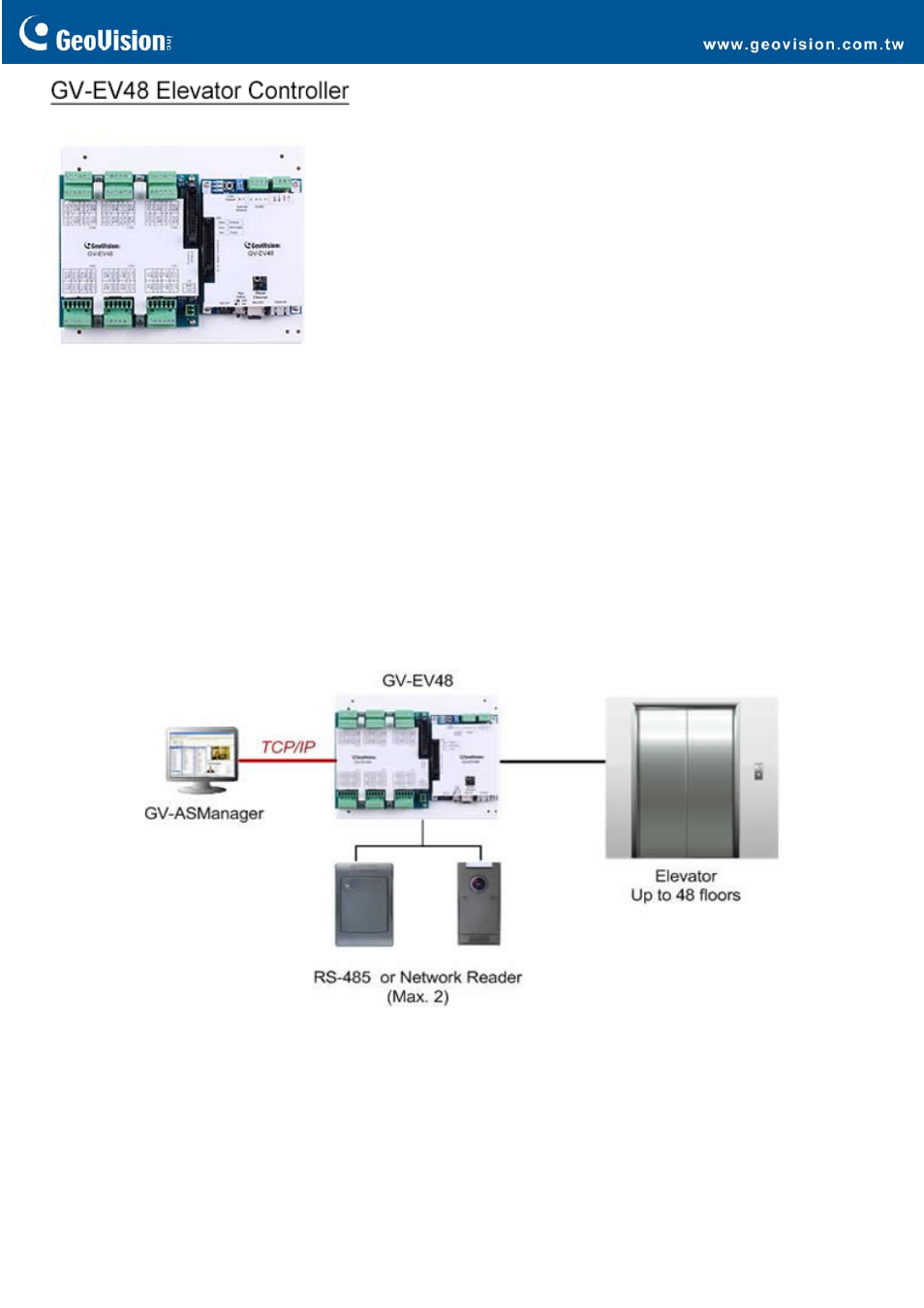

GeoVision EV48 Elevator Controller - Manual

Introduction
GV‐EV48 is an elevator controller designed to control access of 1 elevator with a maximum of 48 floors. Up to 2 GV‐Readers / GV‐GF
Fingerprint Readers can be connected to GV‐EV48 using RS‐485 connection and network connection. GV‐EV48 can recognize
identification cards and grant access to the authorized floors only.
Key Features
 Grant access to specific elevator floors using access cards, card's PIN code or fingerprint
 GV‐EV48 – 24 Floors: Built‐in 24 relay outputs to support up to 24 elevator floors
 GV‐EV48 – 48 Floors: Built‐in 48 relay outputs to support up to 48 elevator floors
 Support up to 2 GV‐Readers / GV‐GF Fingerprint Readers through network connection and RS‐485 connection
