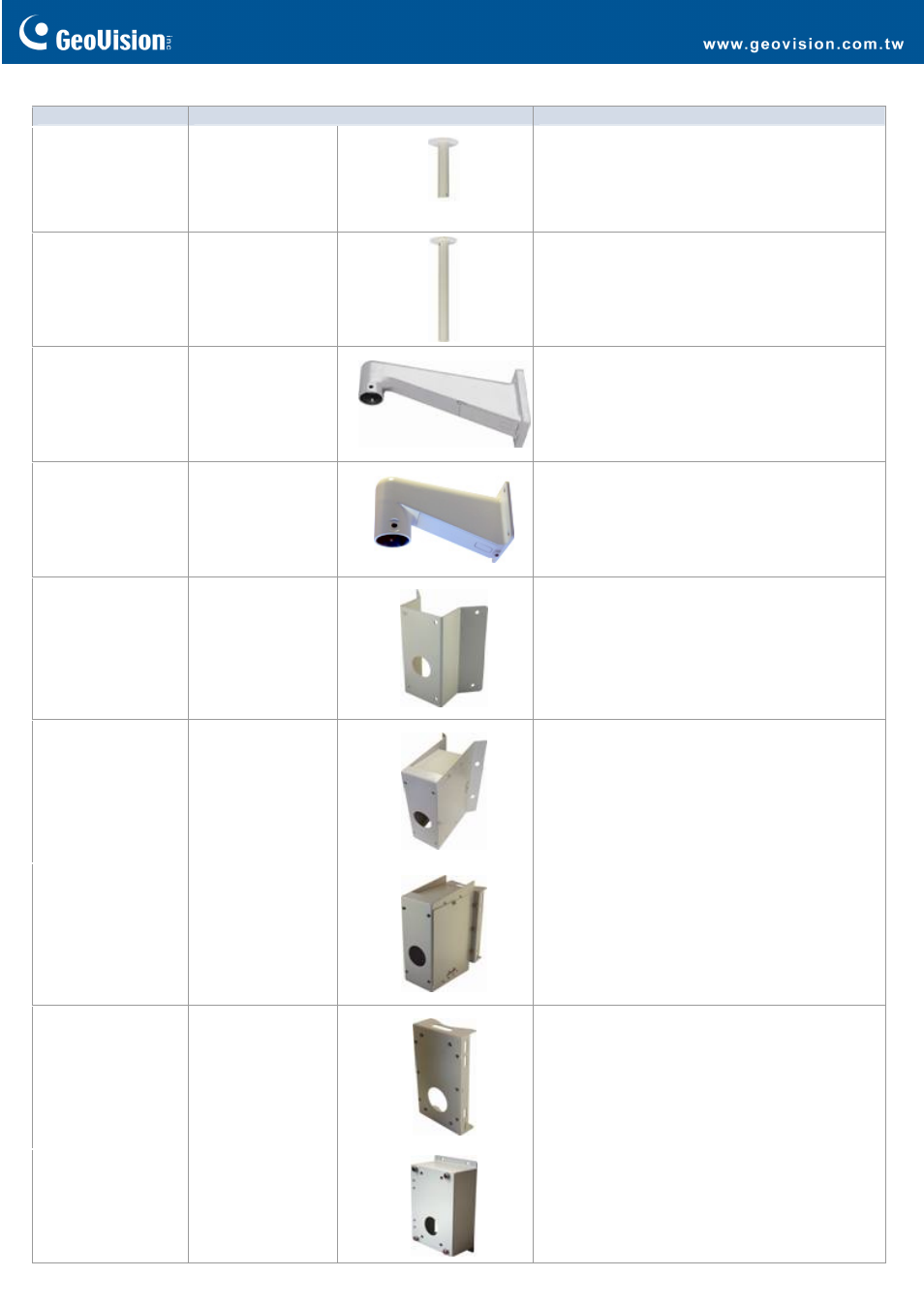

Accessories
Part Number Number Name Details
GV‐MountD100 Straight Tube
(25 cm) Height: 250 mm (9.8”)
Diameter: 50 mm (2”)
Weight: 1 kg (2.2 lb)
Supplied with rubber washer‐8 x 1,
pendent tube washer x 1, spring washer ‐8 x 1, waterproof
rubber x 1, M8‐12 screw x 1
GV‐MountD101 Straight Tube
(50 cm)
Height: 500 mm (19.7”)
Diameter: 50 mm (2”)
Weight: 1.8 kg (4 lb)
Supplied with rubber washer‐8 x 1,
pendent tube washer x 1, spring washer ‐8 x 1, waterproof
rubber x 1, M8‐12 screw x 1
GV‐MountD203
(w/o anti‐drop wire) Standard Pendent
Mount
Dimensions (L x W x D): 348 x 104 x 138.6 mm (13.7” x 4.1” x
5.5”)
Weight: 1.5 kg (3.3 lb)
Supplied with rubber washer‐8 x 1,
pendent tube washer x 1,
spring washer‐8 x 1, M8‐12 screw x 1
GV‐MountD202
(w/o anti‐drop wire) Mini Pendent Mount (included in packing list)
Dimensions (L x W x D): 184 x 104 x 115.2 mm (7.24” x 4.09” x
4.54”)
Weight: 0.6 kg (1.2 lb)
Supplied with rubber washer‐8 x 1, pendent tube washer x 1,
spring washer‐8 x 1, M8‐12 screw x 1
GV‐MountD300 Corner Plate Mount
Dimensions (L x W x D): 222 x 204 x 117 mm( 8.7” x 8” x 4.6”)
Weight: 2 kg (4.4 lb)
Supplied with washer‐8 x 4,
spring washer x 4, M8‐16 screw x 4,
M8 nut x 4
GV‐MountD301 Corner Thin Box Mount
Dimensions (L x W x D): 300 x 164 x 222 mm (11.8” x 6.5” x
8.7”)
Weight: 3.05 kg (6.7 lb)
Supplied with washer x 4, M8‐16 screw x 4, spring washer x 4
Power Box can be set inside the thin box.
GV‐MountD400 Pole Thin Box Mount
Dimensions (L x W x D): 291 x 136 x 242 mm (11.5” x 5.4” x
9.5”)
Weight: 3.1 kg (6.9 lb)
Supplied with M8‐16 screw x 4, washer x 4, spring washer x 4,
stainless steel straps x 4
Power Box can be set inside the thin box.
GV‐MountD401 Pole Thin Direct Mount
Dimensions (L x W x D): 232 x 136 x 60 mm (9.1” x 5.4” x 2.4”)
Diameter: 112~114 mm (4.4” ~ 4.5”)
Weight: 0.7 kg (1.6 lb)
Supplied with stainless steel strap x 4,
M8‐16 screw x 4, washer x 4
GV‐MountD302 Wall Box Mount
Dimensions (L x W x D): 270 x 166 x 95 mm (10.6” x 6.5” x
3.7”)
Weight: 2.2 kg (4.84 lb)
Supplied with M8‐16 screw x 4, washer x 4, spring washer x 4
Power Box can be set inside the wall box.
