ROUGH VALVE KIT
DECK MOUNT
TUB SYSTEMS
Installation
Instructions
M 9 6 8 6 5 0 C
R800 SERIES
R810 SERIES
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Certified to comply with ANSI A112.18.1
1

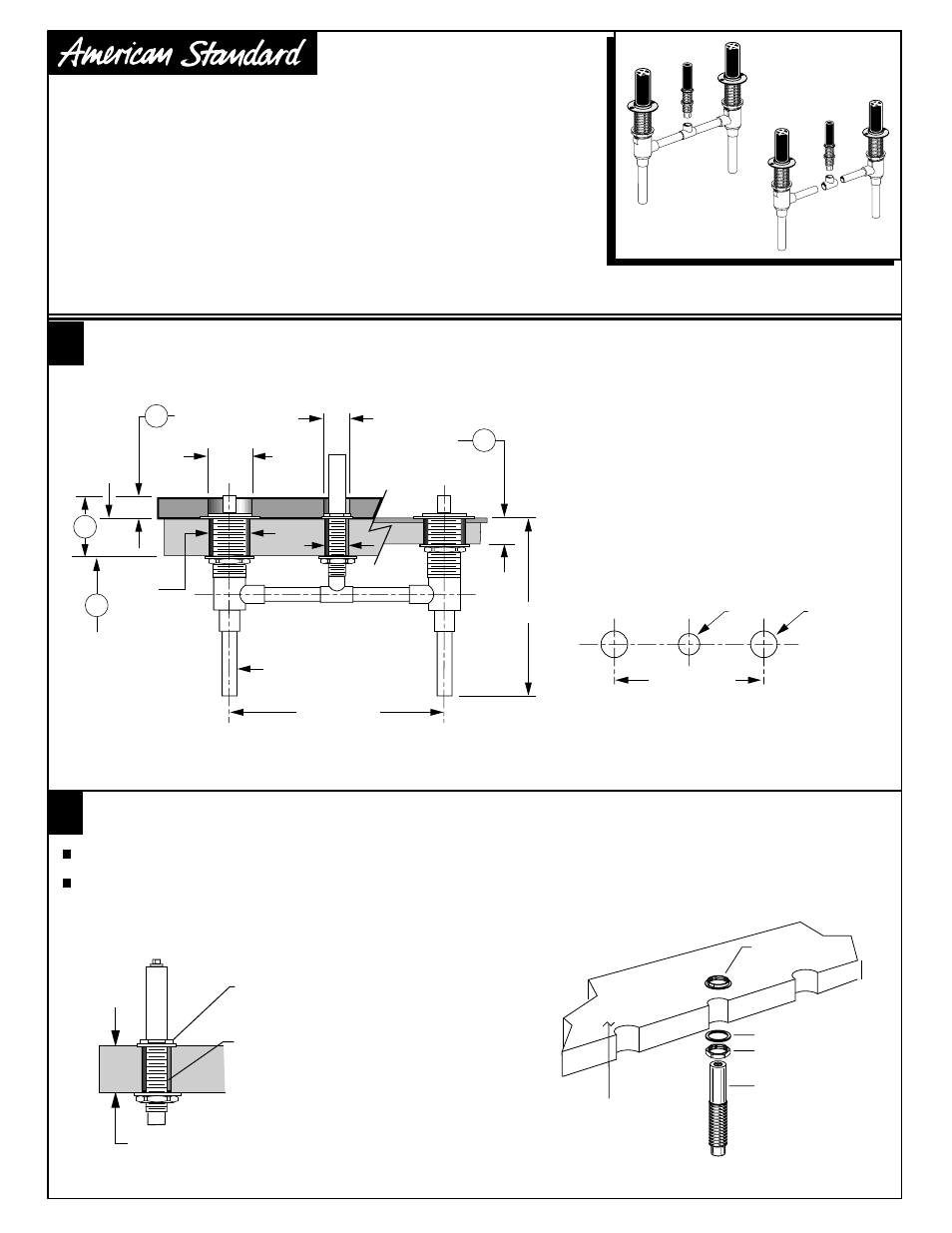

ROUGHING-IN
2
MOUNT SPOUT SHANK
U.S. Patent No. D403,750
FINISHED DECK VARIABILITY ACCOMMODATES
DECKING MATERIAL (TILE, MARBLE, CORIAN®...)
TO 1" THICK
2. FINISHED DECK
3. FITTING MOUNTING SURFACE
4. ACRYLIC BATHS
DECK MOUNTING HOLES
ADJUSTABILITY, TO 1-1/2" THICK
1. DECK THICKNESS
TOTAL DECK THICKNESS UP TO 2-1/2"
ADJUSTABILITY, TO 1-1/2" THICK
Insert the SPOUT SHANK through the mounting deck from below. Assemble the SPOUT SHANK LOCK RING so it
is flush with the top of the threads on the SHANK.
Drill holes in mounting deck as shown. The maximum allowable deck thickness is 1-1/2".
2
3
4
FINISHED
DECK
FITTING
MOUNTING
SURFACE
ACRYLIC
BATH
MOUNTING
1
1/2" COPPER
INLET SUPPLIES
1-3/8 D
MAX.
1 D MAX.
1" D
(2) 1-3/8 D
HOLES
(2) 1-3/8 D
HOLES 1" D
8" to 12"
10" for R810
8" to 12"
10" for R810
7-1/8
SPOUT SHANK LOCK RING FLUSH WITH
TOP OF THREADS ON SPOUT SHANK
SPOUT SHANK
LOCK RING
SPOUT SHANK
FITTING
MOUNTING
DECK
FRICTION WASHER
SPOUT SHANK
MOUNTING NUT
1-1/2 MAX.
R800 SERIES
R810 SERIES
