DIVERTER & PERSONAL SHOWER
ROUGH VALVE KIT
DECK MOUNT
TUB FILLERS
Installation
Instructions
M 9 6 8 3 5 5 D
R890 SERIES
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Certified to comply with ANSI A112.18.1
1

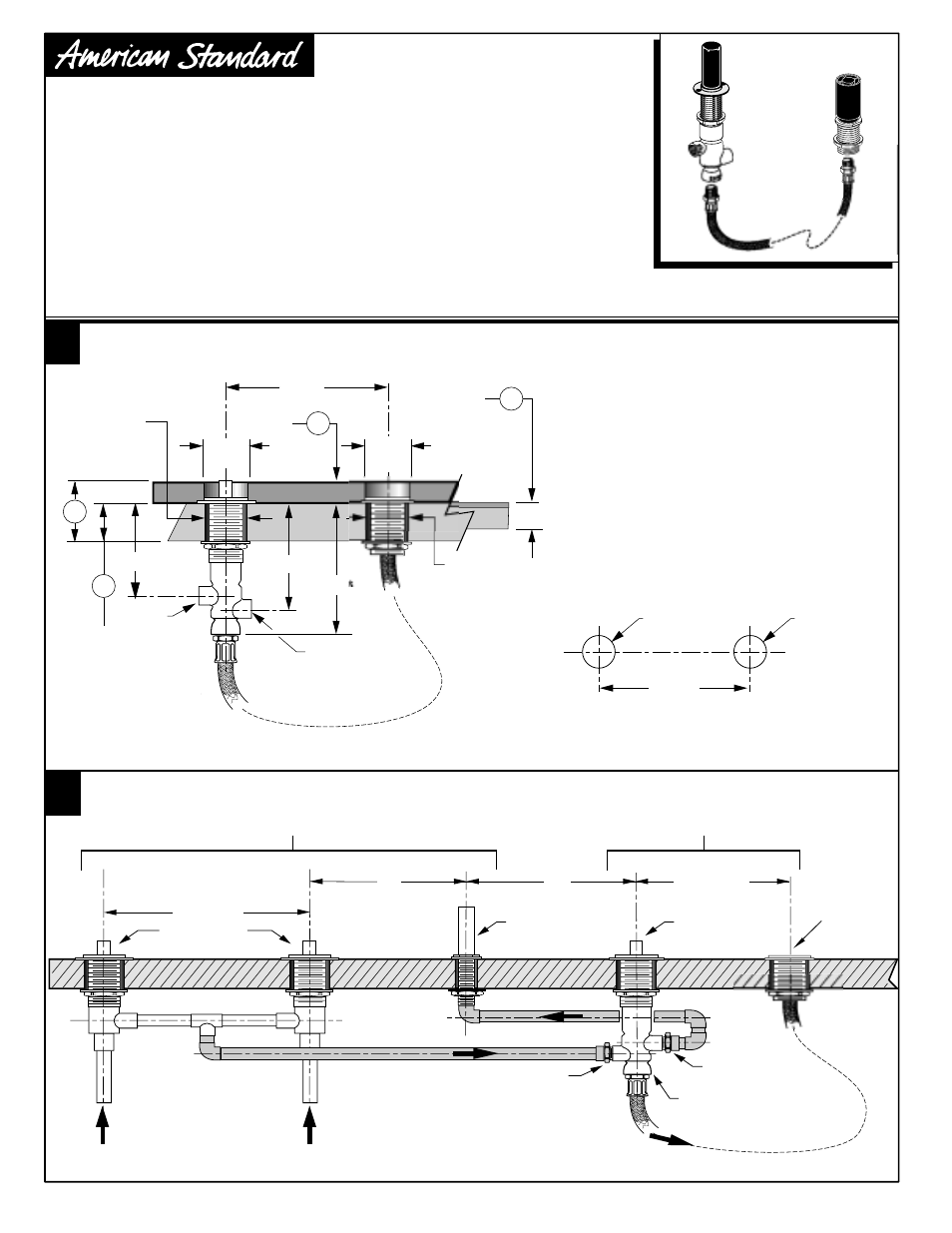

ROUGHING-IN
U.S. Patent No. D403,750
FINISHED DECK VARIABILITY ACCOMMODATES
DECKING MATERIAL (TILE, MARBLE, CORIAN®...)
TO 1" THICK
2. FINISHED DECK
3. FITTING MOUNTING SURFACE
4. ACRYLIC BATHS
DECK MOUNTING HOLES
ADJUSTABILITY, TO 1-1/2" THICK
1. DECK THICKNESS
TOTAL DECK THICKNESS UP TO 2-1/2"
ADJUSTABILITY, TO 1-1/2" THICK
2
3
4
FINISHED
DECK
FITTING
MOUNTING
SURFACE
ACRYLIC
BATH
MOUNTING
1
1/2" NPT INLET
TUB
SHW
1/2" NPT
1-3/8 D
MAX.
1-3/8 D
MAX.
1-3/8 D
1-3/8 D
HOLE
1-3/8 D HOLE
FOR HAND
SHOWER 1-3/8 D HOLE
FOR DIVERTER
6 to 18
6 to 18
4-5/16
3-5/8
5-5/16
8" to 12"
"A" DIMENSION CAN BE
FLEXIBLE TO
ACCOMMODATE
CUSTOMER'S
REQUIREMENTS
PLUMBER TO MAKE ALL PIPING CONNECTIONS
BETWEEN VALVE BODIES, SUPPLY TO TRANSFER
VALVE AND CONNECTION TO BATH SPOUT.
PIPING SHOWN SHADED IS NOT SUPPLIED
AND MUST BE FURNISHED BY INSTALLER.
TUB
SHW
1/2" COPPER WATER
TUBE INLET (MIXED
SUPPLY FROM BATH
FITTING)
HOSE OUTLET
(MIXED SUPPLY
TO HAND SHOWER)
1/2" COPPER WATER
TUBE (MIXED SUPPLY
TO TUB FILLER SPOUT)
BATH SPOUT
CONNECTION DIVERTER
VALVE
HAND SHOWER
CONNECTION
HOT AND COLD
VALVE BODIES
HOT
INLET
COLD
INLET
A A 6" to 18"
R800 ROUGH VALVE KIT
R890 SERIES DIVERTER & PERSONAL
SHOWER ROUGH VALVE KIT
2
LOCATION OF R890 WHEN USED WITH R800
