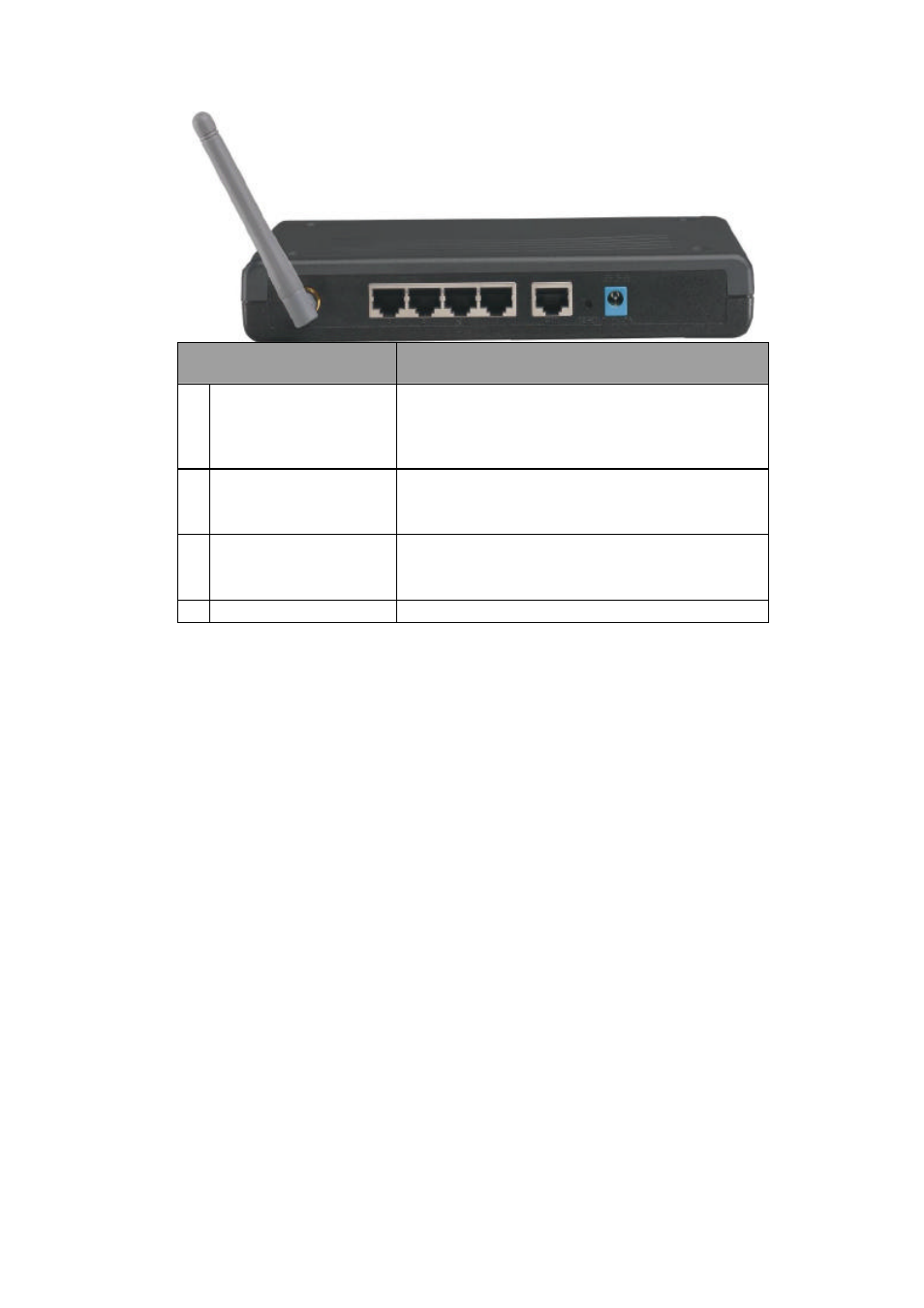

2.3 The Rear Ports
PORT MEANING
1 LAN
(4 connettori RJ-45)
Auto MDI/MDIX LAN ports automatically
sense the cable type when connecting to
Ethernet-enabled computers.
5 WAN The Auto MDI/MDIX WAN port is the
connection for the Ethernet cable to the Cable
or DSL modem
6 RESET After the device has turned on, press it (10s) to
reset the device or restore to factory default
settings.
7 POWER (Jack) Receptor for the Power Adapter
2.4 Cabling
The most common problem is bad cabling or ADSL/ISDN configuration. Make sure that all connected
devices are turned on. On the front of the product is a bank of LEDs. As a first check, verify that the
LAN/WLAN Link and Power line LEDs are lit.Verify that STATUS blink. If they are not, verify that
you are using the proper cables.
