MS-1 FRONT PANEL
Setup and Use
The Vocia software provides an intuitive interface for configuration of the MS-1. The information supplied by this manual relates to physical
connections and assignment. For more details on software setup, please consult the Vocia Help File.

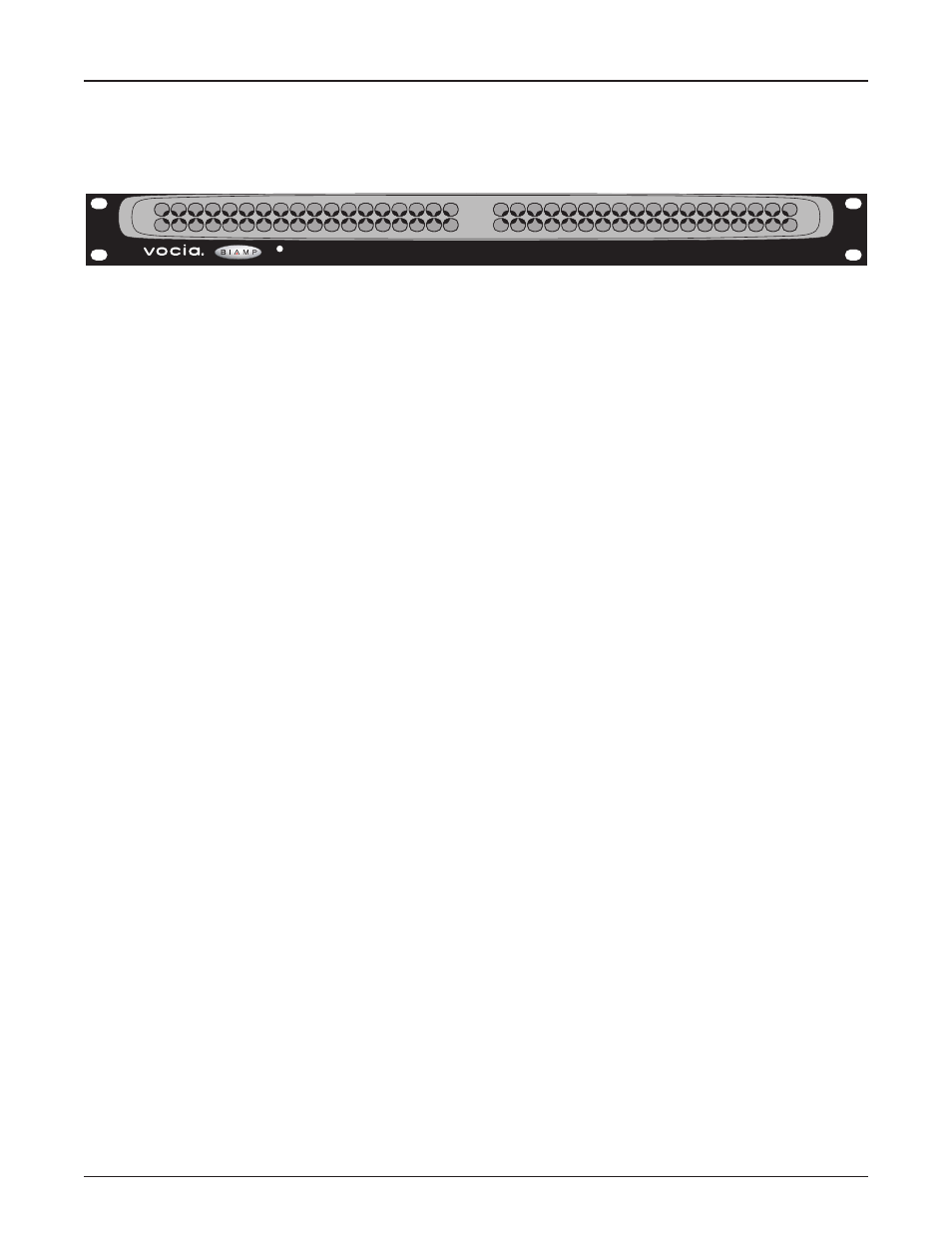

Front Panel
The MS-1 features one power indication LED on the front panel:
1. Not illuminated: The device is not powered.
2. Flashing green: The unit is receiving power but not data, or the unit has not been configured correctly.
3. Solid green: The unit is operational. Power supply and network traffic are functional.
Power
Network
Message Server
