Fill-Rite 900 Series Meter - Manual (Page 3)

ITM. PART
NO. NO.
DESCRIPTION QTY .....
3
ITM. PART
NO. NO.
DESCRIPTION QTY .....

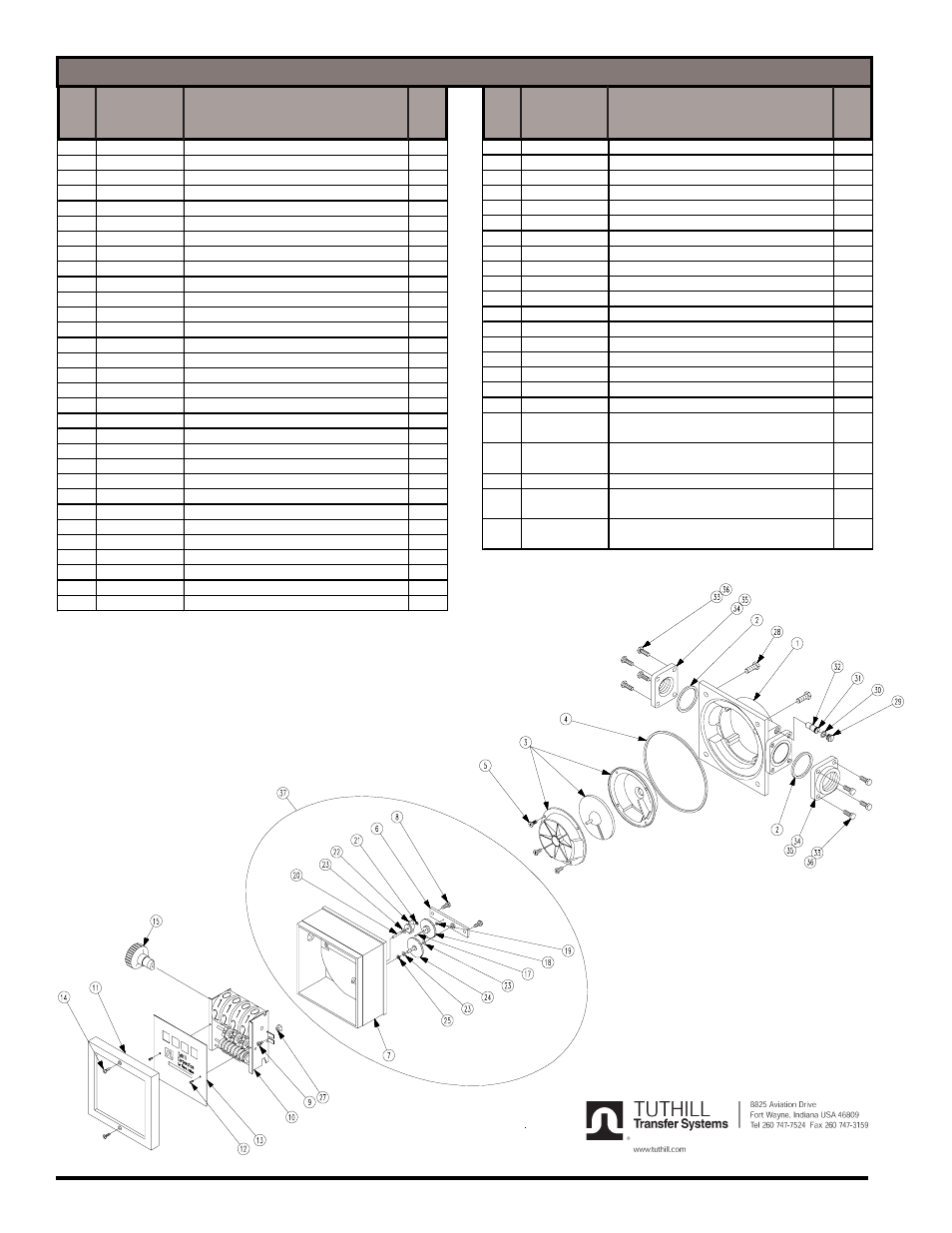

900 SERIES METER PARTS LIST
900F9118 rev7
1 900F8051 Meter Housing 1
900F8102 Meter Housing-Nickel Plated Opt.
900F8101 Meter Housing-Teflon® Coated Opt.
2 300F7744 Inlet/Outlet Gasket Buna-N 2
300F7788 Inlet/Outlet Gasket Fluorocarbon Opt.
3 900F8087 Meter Chamber Assembly 1
4 900F8067 Cover Gasket Buna-N 1
900F8068 Cover Gasket Fluorocarbon Opt.
5 900G8886 #10-24 x 5/8 TORX PH 4
6 900F8066 Gear Frame 1
7 900F8053 Meter Cover (Includes Item 20) 1
900F8104 Meter Cover - Nickel Plated Opt.
900F8103 Meter Cover - Teflon® Coated Opt.
8 VP1400F8822 #10-24 1/2 TORX 2
9 900F4007 #8-32 x 5/16 PHMS, ACR II, TT 2
10 900F8070 Counter Assembly - U.S. Gallon 1
900F8071 Counter Assembly - Liter Opt.
11 900F8069 Bezel 1
12 35F1397 #4 x 3/8 PHTS 2
13 900F8072 Counter Face 1
900F8089 Counter Face - Litre Opt.
14 900G8504 #8 x 5/8 ZN/PL PH OVAL 2
15 800G8870 Knob 1
17 800F3820 Shaft - Cluster Gear 1
18 800F3841 Cluster Gear - U.S. Gallon 1
800F3843 Cluster Gear - Liter Opt.
19 800F3830 Washer 1
20 900F8063 Driver Pinion Shaft (Included w Item 7) 1
21 900F8065 Retaining Ring 1
22 900F8064 Driver Pinion 1
23 800F3980 Washer 3
24 800F3845 Drive Gear - U.S. Gallon 1
800F3846 Drive Gear - Liter Opt.
25 800F4191 O-Ring (5-106) Fluorocarbon 1
27 800F3959 Pinion Bevel 1
28 700F2810 5/16-18 x 7/8 HHCS 4
29 900F8158 Seal Screw 1
30 800F4449 O-Ring (-012) Fluorocarbon 1
31 900F8160 Adjustment Screw (Includes Item 32) 1
32 900F8159 O-Ring (-010)(inc. in item 31) Fluorocar 1
33 1200F6721 1/4-20 x 3/4 HHCS (1" meters) 8
34 900F8076 1" Meter Flange 2
900F8106 1" Meter Flange - Nickel Plated Opt.
900F8105 1" Meter Flange - Teflon® Coated Opt.
35 900F8092 1-1/2" Meter Flange Opt.
900F8110 1-1/2" Meter Flange Nickel Plated Opt.
900F8109 1-1/2" Meter Flange Teflon® Coated Opt.
36 900F8091 1/4-20 x 1-1/2 HHCS (1-1/2" meters) Opt.
37 900F8045 Meter Cover Assembly U.S. Gallon 1
900F8047 Meter Cover Assembly-U.S. Gallon Opt.
Nickel Plated
900F8046 Meter Cover Assembly-U.S. Gallon Opt.
Teflon® Coated
900F8048 Meter Cover Assembly - Liter Opt.
900F8050 Meter Cover Assembly - Liter Opt.
Nickel Plated
900F8049 Meter Cover Assembly - Liter Opt.
Teflon® Coated
