Anaheim H300 User Manual

Page 7

4. Operation Instructions

he H300 could take as long as ten minutes for the display to completely“ settle” and display

the actual temperature or relative humidity level if the meter is exposed to two vastly different

environments. The sensors used to make the environmental measurements must have time to
acclimate to the test environment.

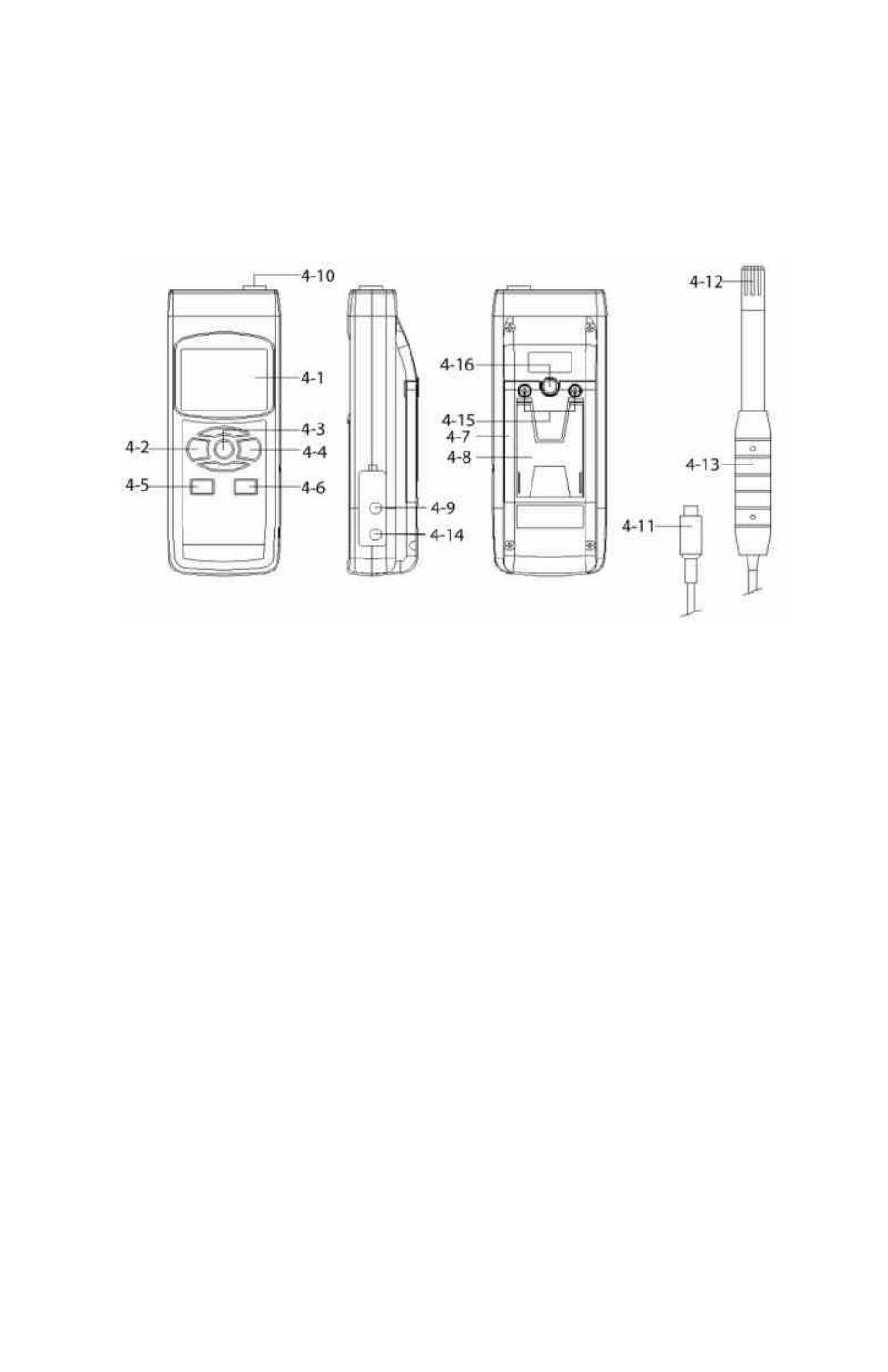

4-1 Unit Diagram

Fig. 1

4-1 LCD Display
4-2 Power button

4-3 Hold Button (ESC Button)
4-4 REC Button (Enter Button)

4-5 Function Button (Send Button)
4-6 Set Button (Logger Button)

4-7 Battery Compartment
4-8 Stand

4-9 RS232 Socket
4-10 Probe Input Socket

4-11 Probe Plug
4-12 Probe Head (Humidity & Temp.)

4-13 Probe Handle
4-14 DC 9V Adapter Input Socket

4-15 Battery Cover Screw
4-16 Tripod Screw Mount
