Anaheim H300 User Manual
Page 12
7. Send Data from RS232 Socket
1. Cancel Hold and REC functions.
2. Press and hold the “ Send Button” (4-5, Fig. 1) for about 2 seconds. You will see 232 in the
bottom of the LCD.
3. Press the “ Send Button” (4-5, Fig. 1) and both the top and bottom display will begin to flash.
At this ti me the data is being sent out the “ RS232 Socket” (4-9, Fig.1).
8. RS232 PC Serial Interface Information
This instrument has RS232 PC serial interface via a 3.5 mm terminal (4-12, Fig. 1).
The data output is a 16 digit stream which can be utilized for user's specific application.

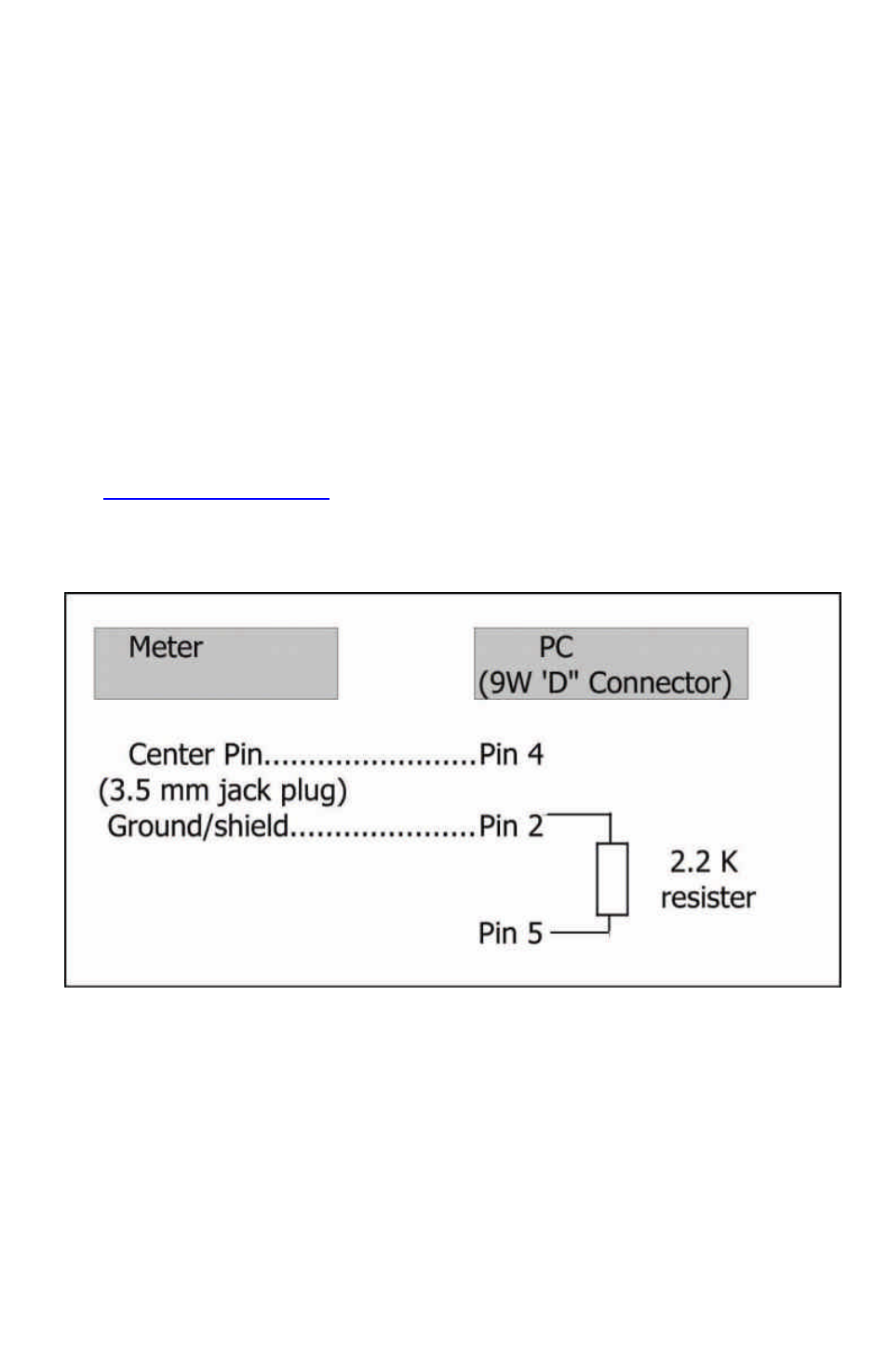

A RS232 lead with the following connection will be required to link the instrument with the PC
serial port.
Visit
o see any available downloadable software for your
instrument.
11
