f. Connect UTP Cable: Plug one end of the cable to Transmitter’s “LINK IN/OUT” port and the
other end to the Transceiver’s RJ45 “LINK IN/OUR” port. The monitor connected to the
Transceiver should now display and the “LINK” or “ACTIVE” LED should turn Green to
indicate the HDMI signal activation. Adjust the “EQ” control for best quality HDMI display.
Installation of Multiple Transceivers and Displays
a. Multiple Transceivers: By using additional HDMI-C5-SR Transceivers, it is possible to extend
the system almost indefinitely to remote HDMI displays.

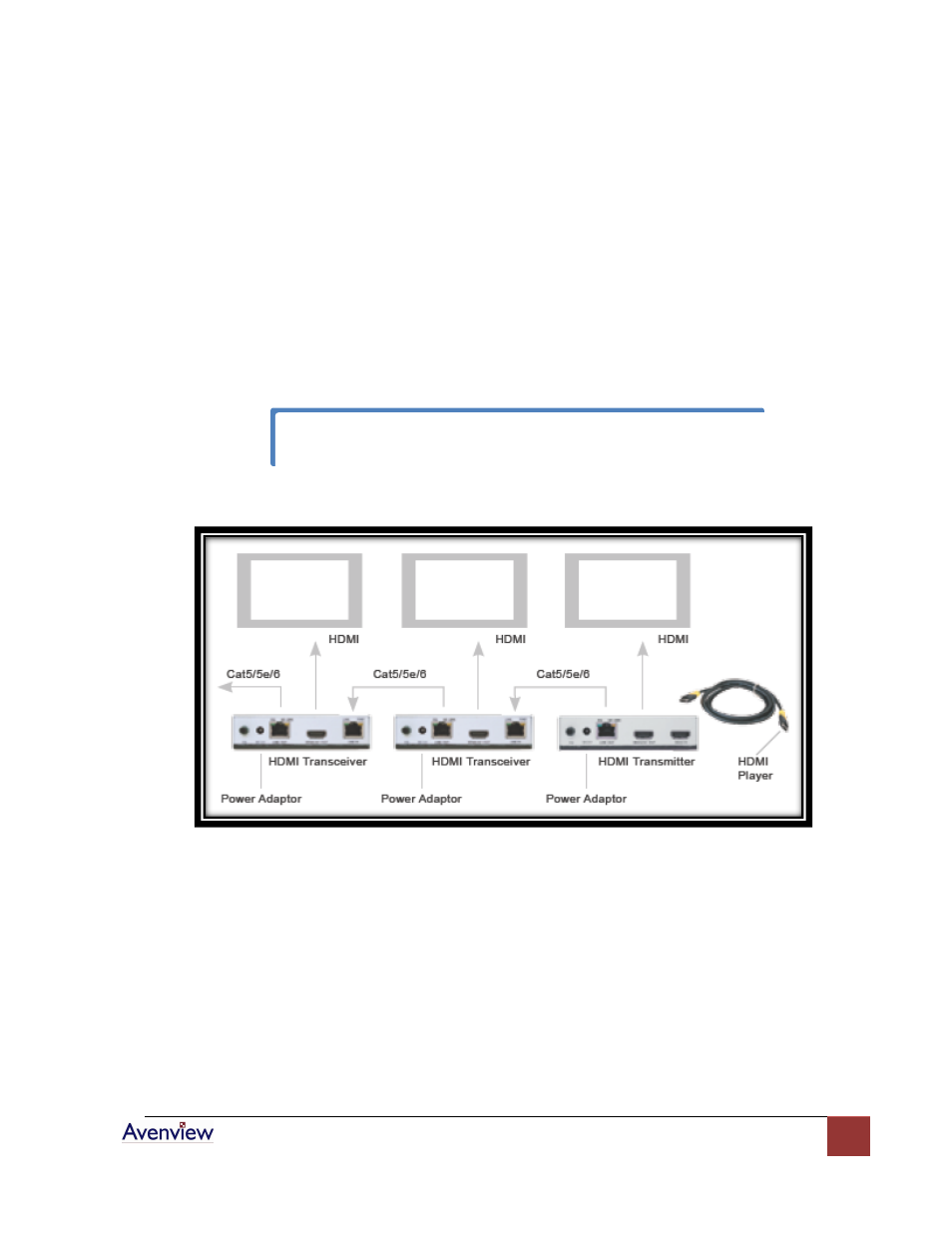

Connection Diagram of HDMI Extender
Ensure that common grounding is maintained to minimize ground loops and
interference for larger group of cascaded Transceivers.
