www.avenview.com 12
g. Addition System Expansion: The “RJ-45 HDMI OUT” port can also be used as link out port
for more system expansions.
Selection of Cable for HDMI-C5-Series
a. Selection: Most makes and versions of Cat 5/5e/6 cables will work with HDMII-C5-Series.
However, since the quality and characteristics of Cat 5/5e/6 cables varies it has been found
that some perform better than others. The major factor influencing the transmitting
distance is the skew property of the cables. Skew represents the difference in propagation
delay between the fastest and slowest set of wire pairs. A lower skew will mean a longer
video transmitting distance.
b. Skew Property: A Cat 5 / 5e / 6 cable with a skew lower than 15ns/100m should enable a
cascading length of <80m (275 ft) at 480p, <70m (230 ft) at 720p / 1080i and <30m (100 ft)
at 1080p.
c. Termination: The RJ45 terminations to the Cat 5/5e/6 cable must be made to the EIA 568B
specification.
1. Orange White 2. Orange 3. Green White 4. Blue
5. Blue White 6. Green 7. Brown White 8. Brown

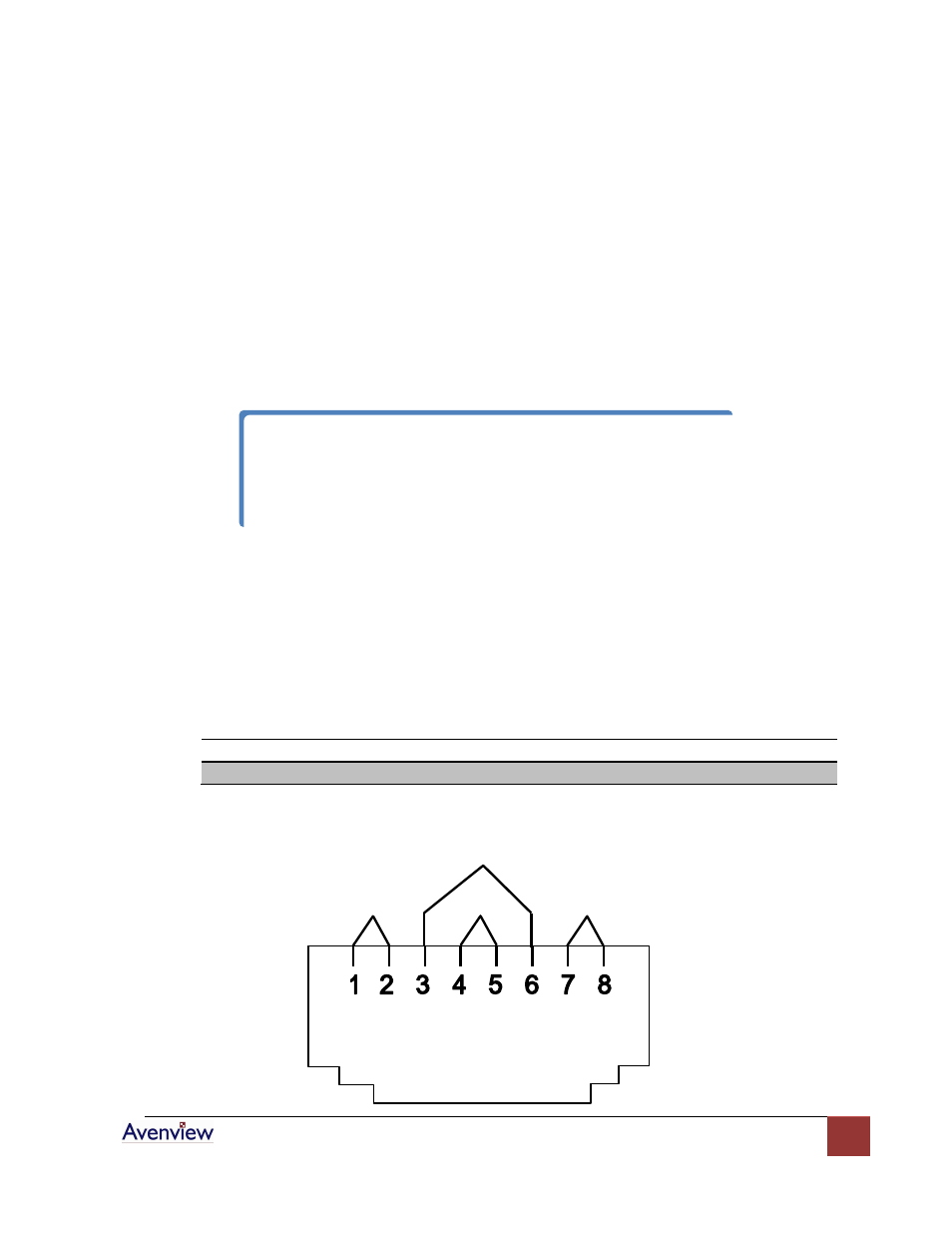

The EIA/TIA definition of 568B in the pin assignment
JACK POSITION
PAIR 2
PAIR 3
PAIR 1 PAIR 4
Cat 5/5e/6 cable with a skew of lower than 15ns/100m should enable a cascading of
HDMI-C5-Series length of:
< 80m (275ft) @ 480p
< 70m (230ft) @ 72p / 1080i
< 30m (100ft) @ 1080p
