S I T E I N S T A L L A T I O N
I N S T A L L A T I O N

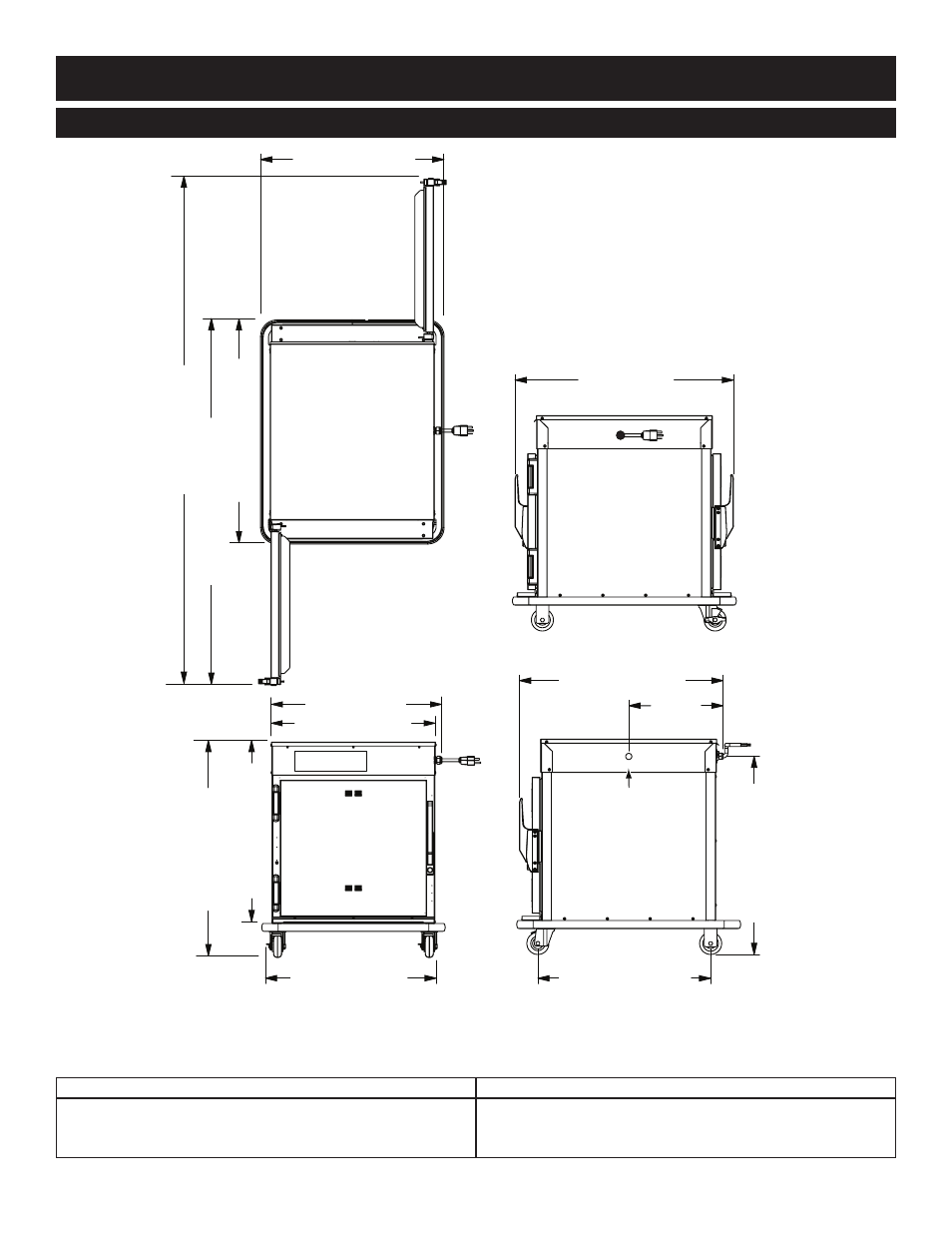

28-5/8" (726mm)
Shown with
optional bumper
34" (864mm)
31-3/4" (805mm)
14-3/4"
(373mm)
30-7/8" (784mm)
(electrical connection)
26-15/16" (683mm) 26-5/8" (676mm)
28-1/4" (717mm)
33-1/2" (851mm)
with 3-1/2" casters*
Pass-Through
Electrical
Connection
(Pass-Through)
*31-13/16" (807mm) - with optional 2-1/2" casters
*35-1/4" (894mm) - with optional 5" casters
*34-7/16" (874mm) - with optional 6" legs
25-3/4" (654mm)
27" (686mm)
34-7/8" (886mm)
56-15/16" (1445mm)
79" (2006mm)
PRODUCT\PAN CAPACITY
100 lb (45 kg)
maximum
voluMe MaxiMuM : 75 quarts (95 liters )
WEIGHT
net : 192 lb (87 kg) est
.
ship : 258 lb (117 kg)
750-TH/III
