AmpliVox S1297 User Manual

Page 5

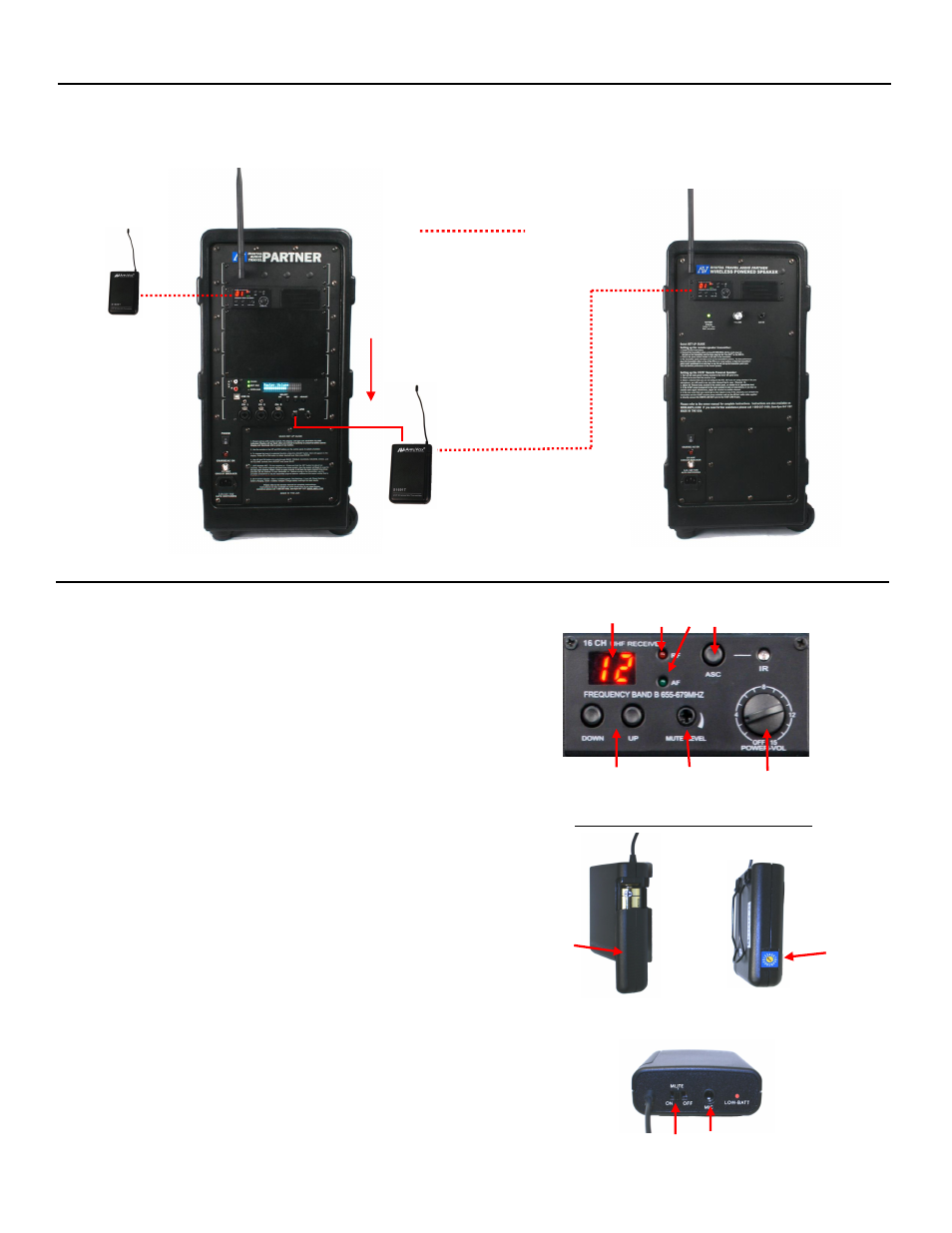

Channel Display (A)

RF - Radio Frequency Indicator (B)

AF - Audio Frequency Indicator (C)

ASC / IR Auto Channel Select (Feature Not Used) (D)

Select Buttons - Manual Channel Selection (E)

Mute Level Adjustment (F)

Volume Control (G)

SETUP

The S1297 receiver has its own

POWER / VOLUME Control (G).

Make sure that you have screwed on the UHF antenna. Turn Power
On (main power must also be on). A Frequency Channel will ap-
pear in the Channel Display (

A). Press Select Buttons (E) to select

a channel. Channel number must match channel number on wire-
less speaker transmitter.

The speaker transmitter (

S1691T) is operated by 1 - "AA" 1.5 Volt

alkaline battery. Slide off battery cover (

H) and install battery as

shown. Make certain the battery is fully seated in its compartment
so the cover slides in place easily. Battery life with alkaline batteries
is approximately 8 hours of operating time.

Select a channel (1-16) on side panel (

I) using the supplied screw

driver to select channel number. Channel selected should match
channel on receiver. When transmitter and receiver are set to cor-
rect channel, the

RF indicator (B) will glow red when transmitter is

turned on. When receiver is receiving active signal / sound the

indicator (

C) will glow green.

Slide the power

ON/OFF switch (J) to the ON position (the LED

indicator light will illuminate green). Replace batteries when this
LED turns red.

MUTE LEVEL (F) is set at half way mark when it leaves the factory.
If speaker sound is breaking up, turn level clockwise with small
screwdriver until condition improves.

Battery Cover

Channel Selector

Top Panel

Wireless Speaker Transmitter-S1691T

WIRELESS SPEAKER RECEIVER

SW915

S1297

S1960T Microphone

Transmitter

S1961T Speaker

Transmitter

Supplied Cable

1/4″ to 1/8″

Connect the speaker transmitter (

S1961T) to the LINE OUT jack on the SW915 with the supplied cable, which has a ¼” plug on

one end for the

SW915, a 1/8” (3.5mm) plug on the other end for the speaker transmitter.

If using a cable connection instead of the wireless speaker transmitter, connect the

LINE OUT jack of the SW915 to the LINE IN

jack of the

S1297,

WIRELESS TRANSMITTER CONNECTION

Signal Path
